Intermediate reduction drive (IRD) unit - K1.8 (page 3 of 3)

INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-9

24. Remove 3 bolts securing IRD support bracket

to sump and remove bracket.

25. Remove 4 bolts securing IRD.
26. With assistance, release IRD from gearbox and

remove.

27. Remove and discard 'O' ring from IRD.

Refit

1. Clean mating faces of IRD and gearbox.
2. Lubricate and fit new 'O' ring
3. With assistance, fit IRD.
4. Fit bolts securing IRD to gearbox and tighten

sufficiently only to pull mating faces of IRD and
gearbox together at this stage.

5. Fit IRD support bracket and tighten bolts

sufficiently only to pull mating faces together.

6. Final tighten bolts securing IRD to gearbox to

90 Nm (66 lbf.ft).

7. Final tighten bolts securing IRD support bracket

in following sequence:

l

5 bolts securing IRD support bracket to IRD
50 Nm (37 lbf.ft)

l

1 bolt securing support bracket to cylinder
block to 45 Nm (33 lbf.ft)

l

3 bolts securing support bracket to sump 88
Nm (65 lbf.ft).

8. Position engine lower steady bracket to sump,

fit and tighten bolts to 100 Nm (74 lbf.ft).

9. Fit engine lower steady, fit bolt securing steady

to gearbox bracket but do not tighten at this
stage.

10. Connect coolant hoses and secure with clips.
11. Connect breather hose to IRD housing.
12. Fit mass damper to pinion housing, fit nuts and

tighten to 25 Nm (18 lbf.ft).

13. Clean propeller shaft flange and mating face.
14. Fit propeller shaft to IRD flange and align

marks. Tighten nuts and bolts to 40 Nm (30
lbf.ft).

15. Inspect drive shaft oil seal, renew if worn or

damaged.

16. Clean drive shaft and flange splines.

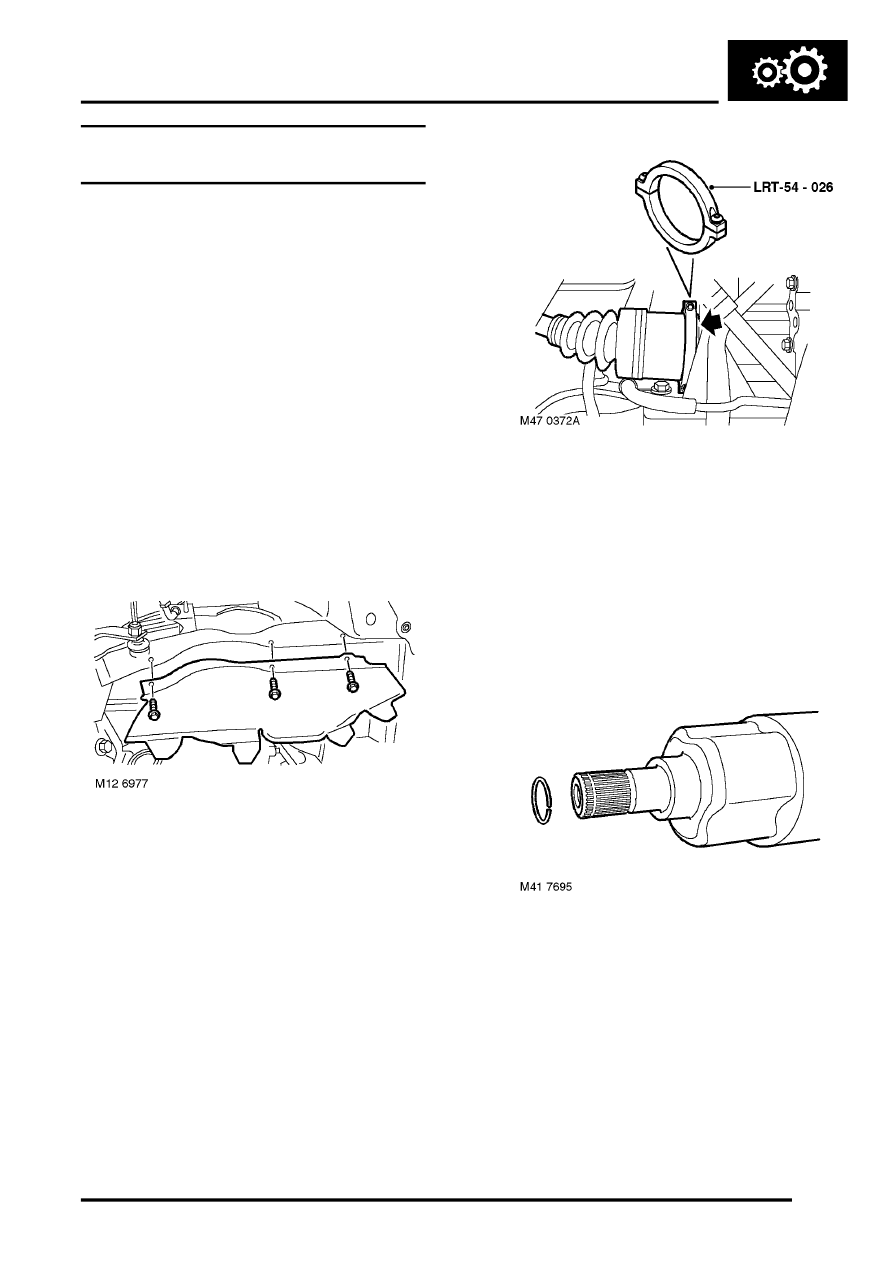

17. Fit new circlip to drive shaft.
18. With assistance, pull hub outwards, align drive

shaft and fit to IRD taking care not to damage
oil seal.

CAUTION: Pull the drive shaft to ensure the
circlip is fully engaged and retains the shaft.

19. Fit splash shield and secure with bolts.
20. Fit exhaust front pipe.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES 1.8, REPAIRS, Exhaust pipe -
front.

21. Fit rear beam.



 +

 FRONT SUSPENSION, REPAIRS,

Rear beam.

22. Final tighten bolt securing lower engine steady

to sump bracket to 80 Nm (59 lbf.ft).

23. Fill IRD to correct level with fluid.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.

24. Refill gearbox with oil.



 +

 MANUAL GEARBOX - PG1,

ADJUSTMENTS, Gearbox oil - drain and
refill.

25. Connect battery earth lead.
26. Refill cooling system.



 +

 COOLING SYSTEM - K SERIES 1.8,

ADJUSTMENTS, Coolant - refill system.

M12 7167

M41 7698
