Intermediate Reduction Drive - Non NAS models

MAINTENANCE

MAINTENANCE

10-17

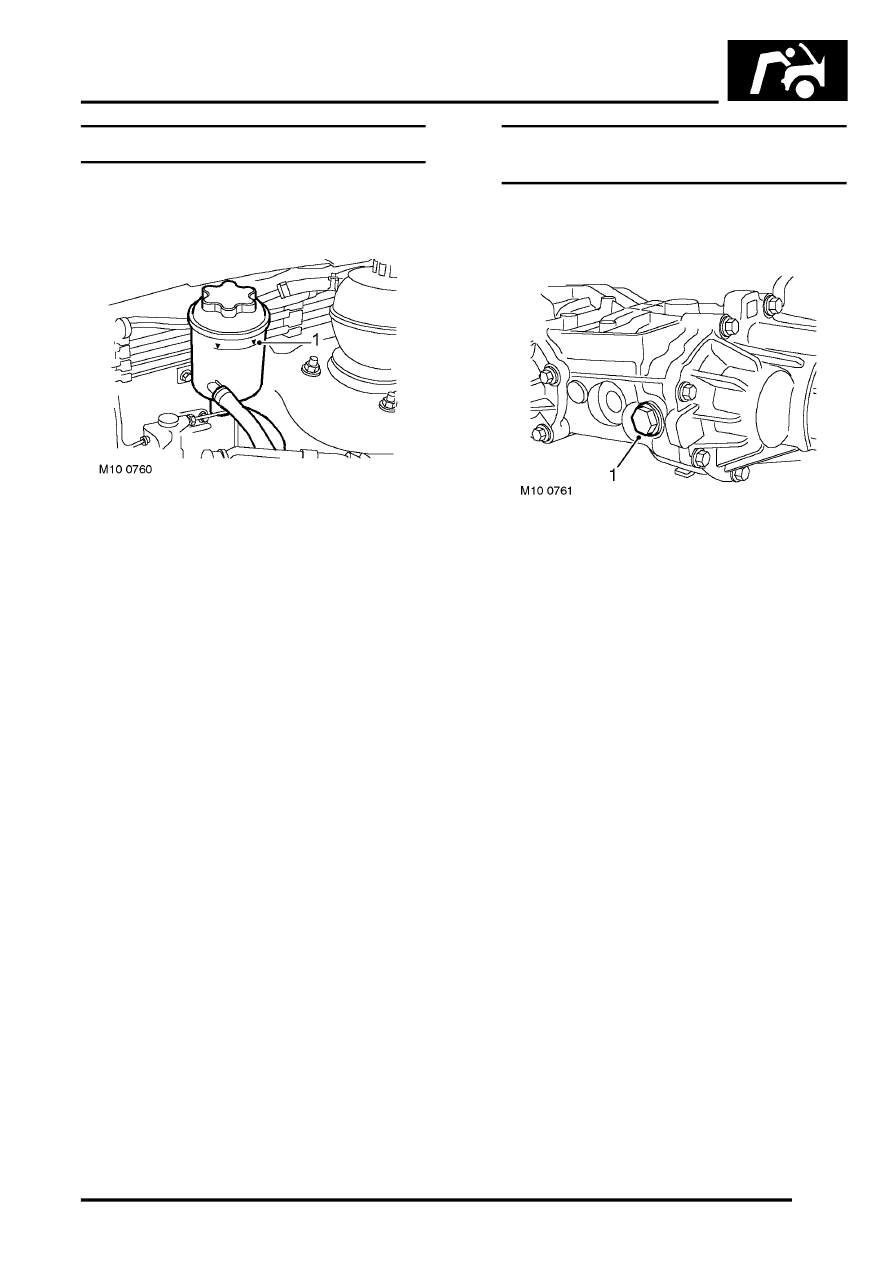

PAS Fluid Level

Check/Top-up

1. Check Power Assisted Steering (PAS) fluid

level. Before topping up PAS fluid level, ensure
there are no leaks from the pump, hoses,
unions or steering rack.


 +

 CAPACITIES, FLUIDS,

LUBRICANTS AND SEALANTS, Fluids.

Intermediate Reduction Drive - Non NAS
models

Check and Top-up Fluid

1. With vehicle on a ramp at a convenient working

height, carefully remove IRD level plug and
collect sealing washer.

2. Check oil level. Before topping up oil level,

check for visible signs of  leakage. Pay
particular attention to drive shaft and prop shaft
oil seals.


 +

 CAPACITIES, FLUIDS,

LUBRICANTS AND SEALANTS,
Lubrication.

3. Refit level plug to IRD unit using a new sealing

washer.
