Freelander Service Procedures
MANIFOLDS & EXHAUST SYSTEMS - K SERIES KV6
REPAIRS
30-3-3
Front pipe - NAS
$% 30.10.09
Remove
1. Disconnect battery earth lead.
2. Remove intermediate pipe and silencer.
- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.

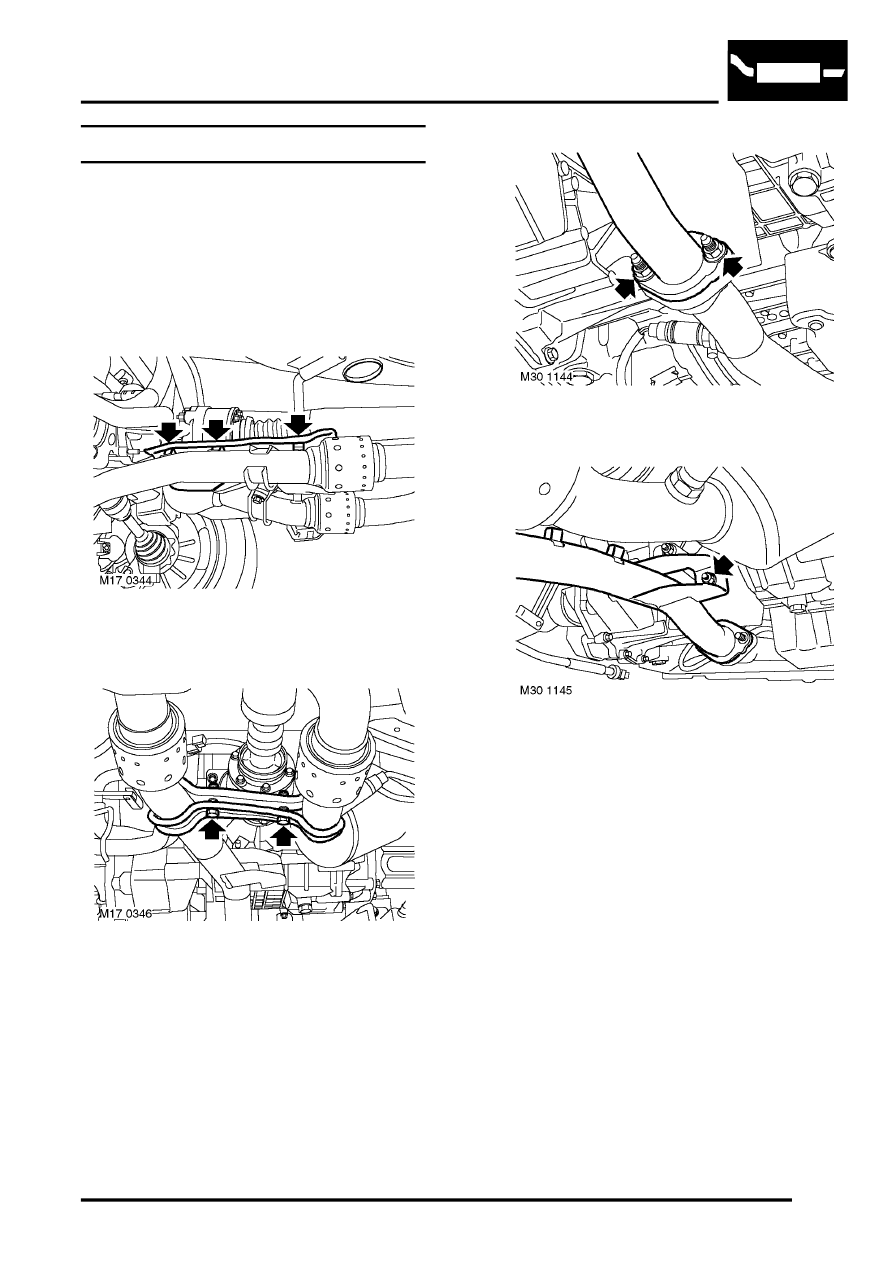

3. Remove 3 bolts securing heat shield and
remove heat shield from front pipe.
4. Remove 2 bolts securing pipe clamp and
remove lower half of clamp.
5. Remove 2 nuts securing front pipe to manifold.
6. Remove bolt securing front pipe to bracket and
remove front pipe. Discard gasket.
Refit
1. Clean front pipe and manifold mating faces.
2. Using a new gasket, fit front pipe and fit but do
not tighten nuts.
3. Fit bolt securing front pipe to bracket but do not
tighten.
4. Fit lower half of pipe clamp, fit bolts but do not
tighten.
5. Fit intermediate pipe and silencer.
- K SERIES KV6, REPAIRS, Intermediate
pipe - NAS.
6. Tighten nuts securing front pipe to manifold to
50 Nm (37 lbf.ft).
7. Tighten bolts securing clamp to 10 Nm (7 lbf.ft).
8. Tighten bolt securing front pipe to bracket to 25
Nm (18 lbf.ft).
9. Connect battery earth lead.
