EngineTensioning a new camshaft timing belt · page 3 of 7
Diagram

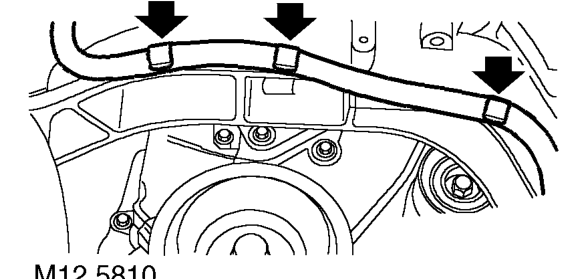

  1. Release vacuum pipe from clips on body.

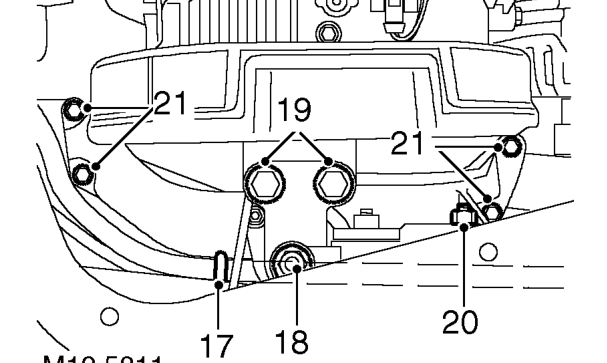

  2. Remove nut from engine mounting centre bolt.
  3. Remove 2 bolts securing arm assembly to engine.
  4. Remove nut and bolt securing tie rod to buttress.
  5. Remove 4 bolts securing buttress to subframe.
Remove 4 bolts securing buttress to subframe.
  1. Release hydragas pipe from buttress clips and position pipe aside.
  2. Manoeuvre buttress and engine mount assembly from wheel arch.
  3. Collect arm from mounting.
Collect arm from mounting.

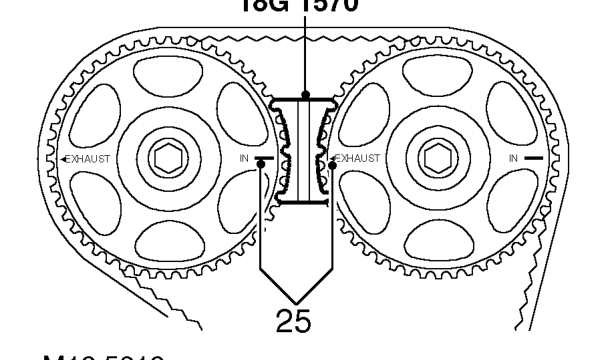

  1. Rotate crankshaft clockwise to align camshaft gear timing marks.
  2. Fit camshaft gear locking tool 18G 1570.

NOTE: If necessary, use a small mirror to ensure camshaft gear timing marks are aligned correctly.

  1. If camshaft timing belt is to be reused, mark direction of rotation of belt with chalk.
