MG MGF Factory Workshop Manual (1995-2000)05 · Engine
05 · Engine

Tensioning a new camshaft timing belt (page 5 of 7)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineTensioning a new camshaft timing belt · page 5 of 7
Diagram

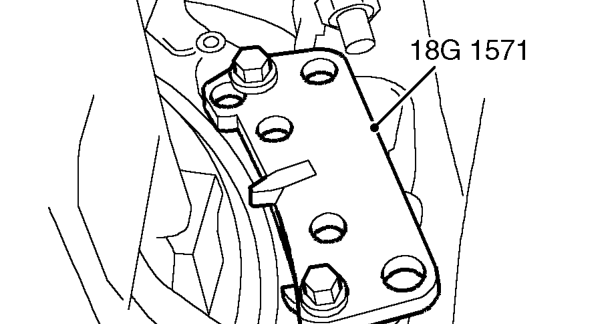

  1. Lock crankshaft using tool 18G 1571 and secure with 2 bolts.
Lock crankshaft using tool 18G 1571 and secure with 2 bolts.

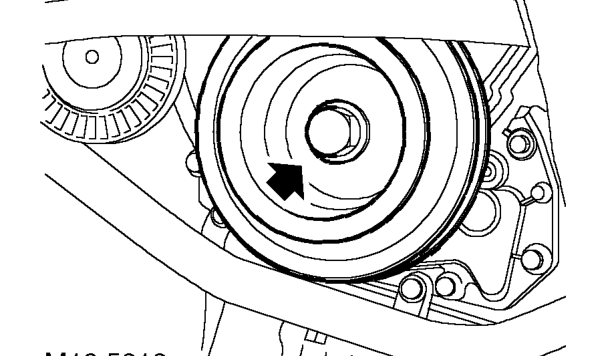

  1. Remove crankshaft pulley bolt and washer.
  2. Remove crankshaft pulley.
Remove crankshaft pulley.

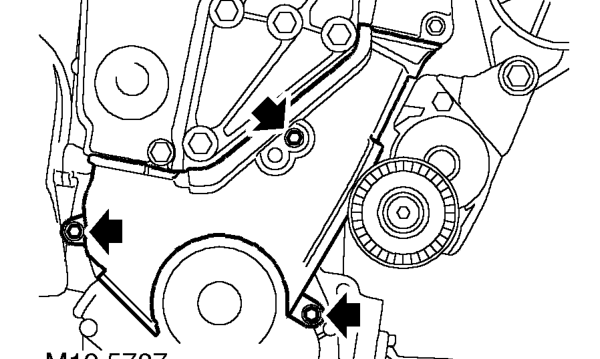

  1. Remove 3 bolts securing lower timing belt cover and remove cover.
  2. Remove and discard timing belt.
Remove and discard timing belt.

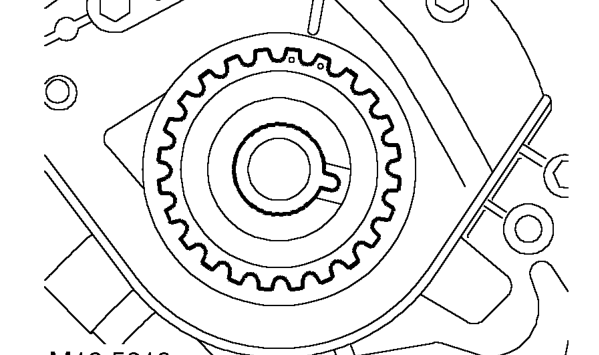

  1. Remove gear from crankshaft.
