05 · Engine

Tensioning a new camshaft timing belt (page 2 of 7)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Repairs
EngineTensioning a new camshaft timing belt · page 2 of 7
Diagram

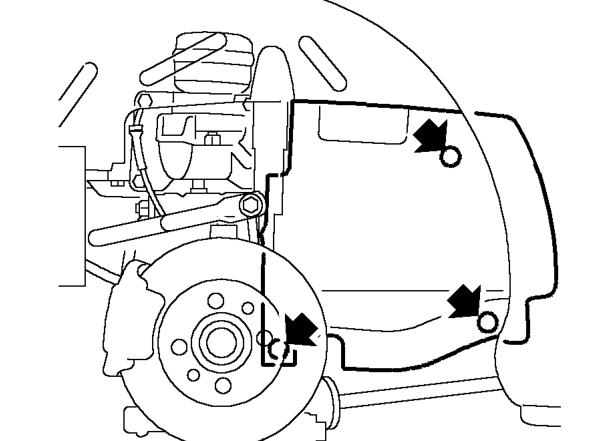

  1. Remove 2 scrivets and 1 Torx screw securing closing panel.
  2. Remove closing panel.
Remove closing panel.

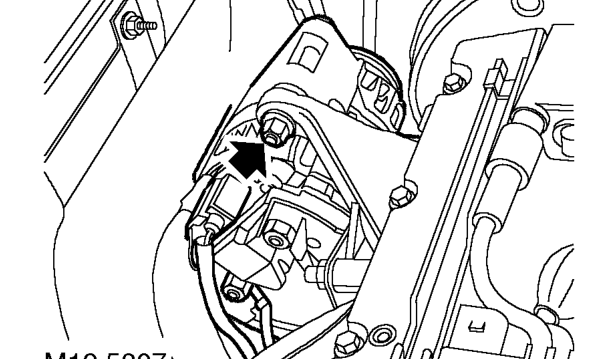

  1. Loosen alternator pivot nut and bolt.
Loosen alternator pivot nut and bolt.

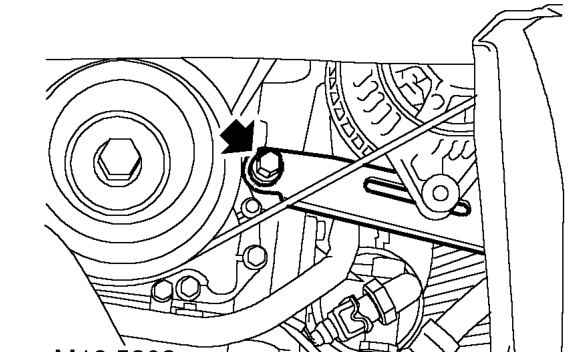

  1. Loosen bolt securing alternator adjustment bracket.
Loosen bolt securing alternator adjustment bracket.

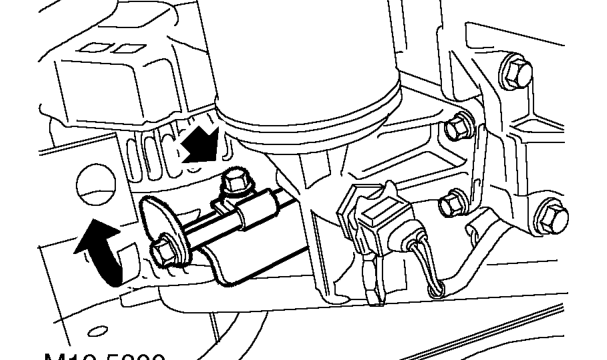

  1. Rotate alternator drive belt adjustment bolt anti-clockwise to release tension from belt.
  2. Release and remove drive belt from pulleys.
  3. Models with A/C : Remove alternator drive belt. See ELECTRICAL, Repairs.
Models with A/C : Remove alternator drive belt. See ELECTRICAL, Repairs.

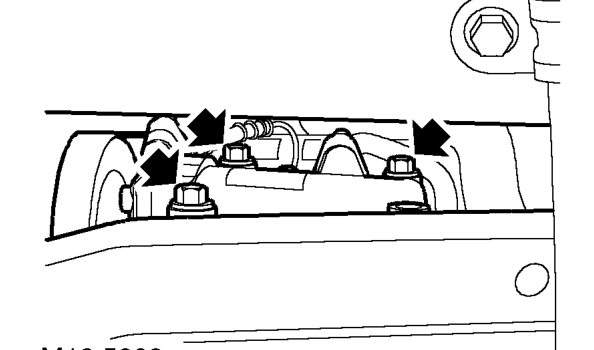

  1. Loosen 3 bolts securing A/C compressor to mounting bracket, tie compressor aside.
  2. All models: Support engine on a jack.

CAUTION: Place block of wood between jack and engine sump to avoid damage occurring.
