Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

All Models (page 2 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - L SeriesAll Models · page 2 of 5
Diagram

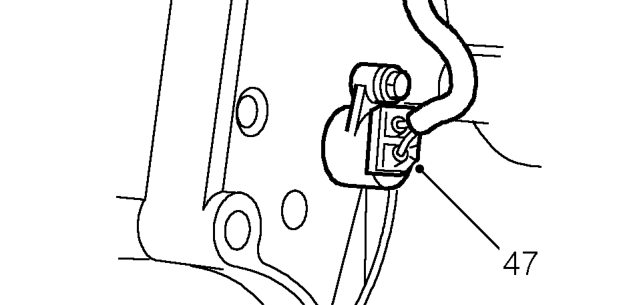

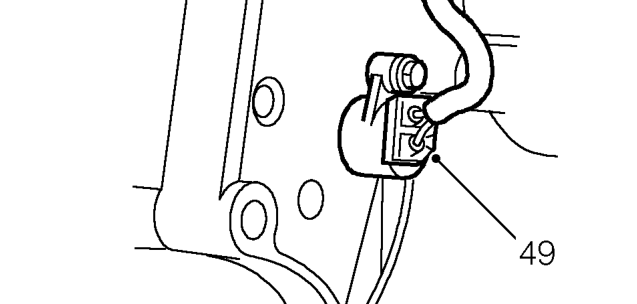

  1. Disconnect multiplug from CKP sensor.
Disconnect multiplug from CKP sensor.

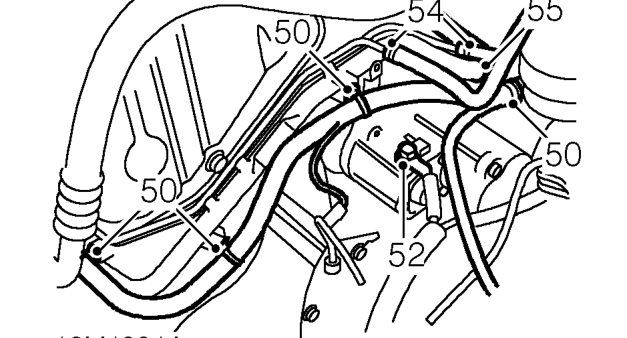

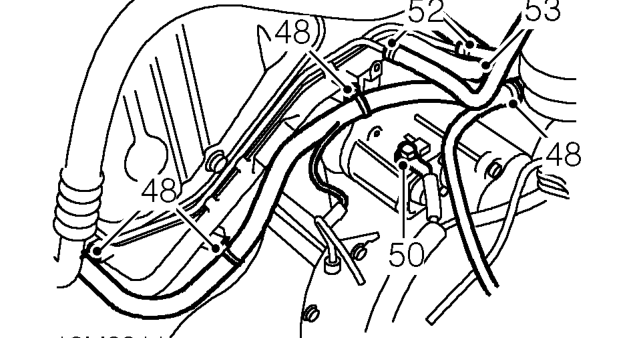

  1. Release 4 clips securing harness to coolant rail.
  2. Release harness from engine and lay aside.
  3. Remove nut and disconnect lead from starter solenoid.

CAUTION: Plug the connections.

  1. Position cloth to collect fuel spillage.
  2. Release clips and disconnect fuel hoses from pipes.

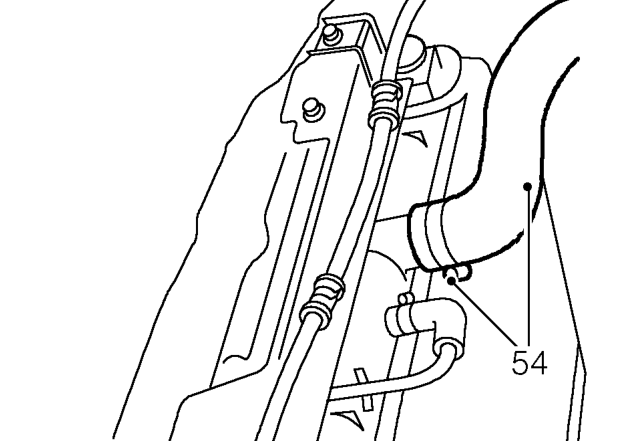

  3. Loosen clip and disconnect heater hose from coolant rail.
Loosen clip and disconnect heater hose from coolant rail.
  1. Loosen clip and disconnect top hose from radiator.
Loosen clip and disconnect top hose from radiator.

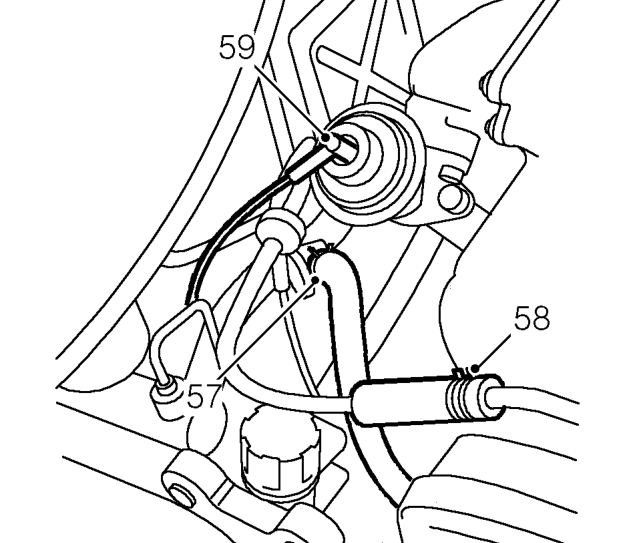

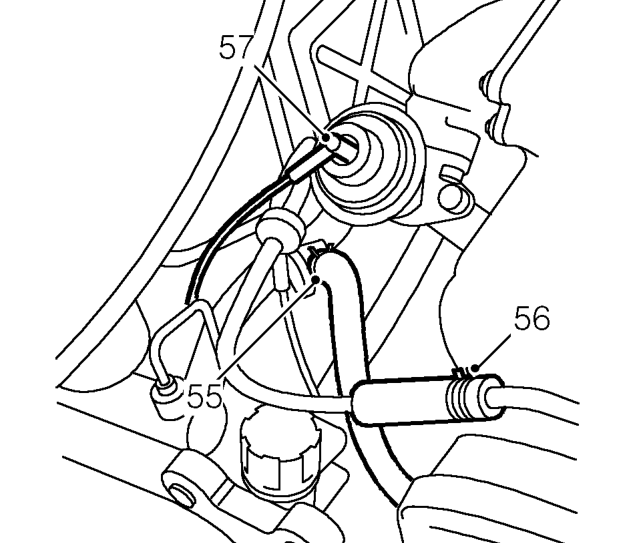

  1. Release clip and disconnect coolant hose from heater valve.
  2. Release clip and disconnect brake servo vacuum hose from pipe at camshaft cover.
  3. Disconnect vacuum pipe from EGR valve.
