Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

All Models (page 4 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - L SeriesAll Models · page 4 of 5
Diagram

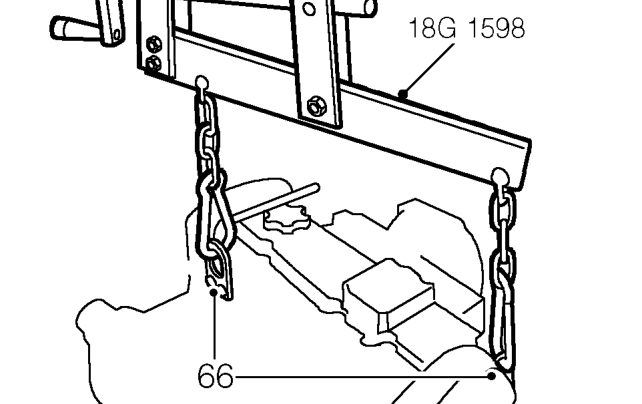

  1. Connect adjustable lifting bracket tool 18G 1598 to engine lifting brackets.
  2. Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
Connect a hoist to lifting bracket tool 18G 1598 and raise hoist to take weight of engine

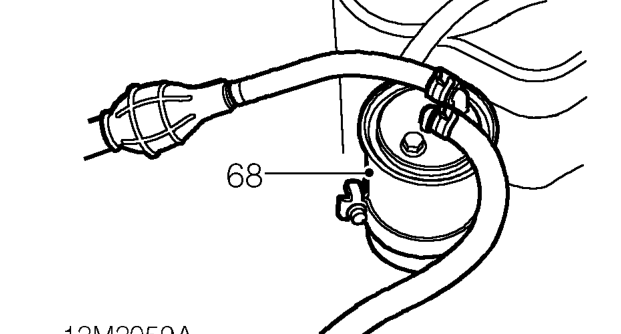

  1. Release fuel filter from bracket and move aside.
Release fuel filter from bracket and move aside.

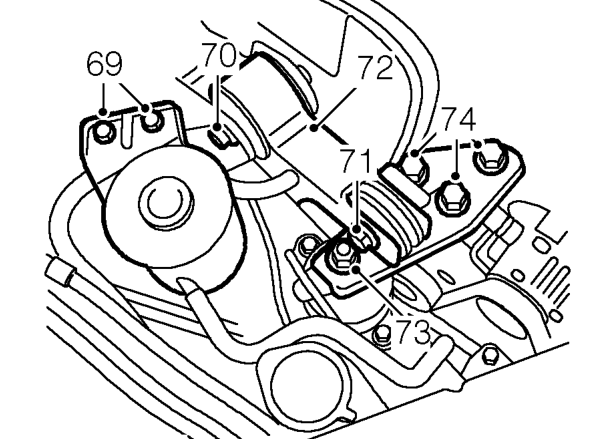

  1. Remove 2 bolts securing PAS fluid reservoir to body and position aside.
  2. Remove through bolt securing tie bar to body.
  3. Remove through bolt securing tie bar to engine mounting.
  4. Remove tie bar.
  5. Remove nut securing bracket to RH engine mounting.
  6. Remove 3 bolts securing mounting bracket to engine and remove bracket.
  7. Collect special washer.
