Rover 400 Workshop Manual (1995-2000)07 · Engine - L Series
07 · Engine

All Models (page 3 of 5)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine - L SeriesAll Models · page 3 of 5
Diagram

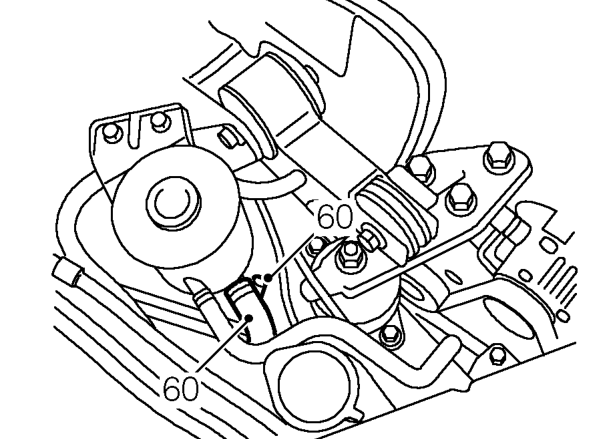

  1. Release clip and disconnect outlet hose from PAS reservoir.
Release clip and disconnect outlet hose from PAS reservoir.

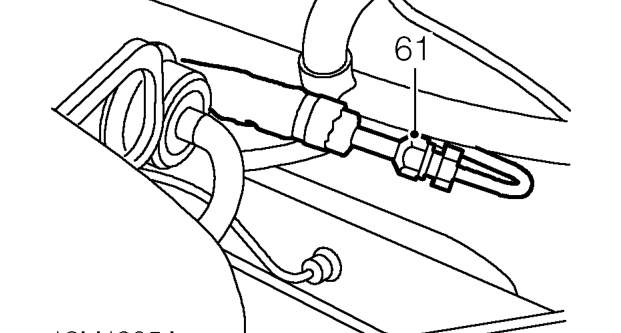

  1. Disconnect PAS high pressure union at bulk head.

CAUTION: Plug the connections.

Disconnect PAS high pressure union at bulk head.

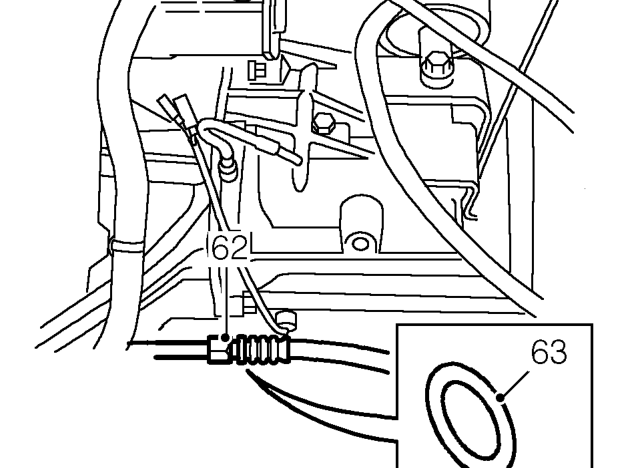

  1. Loosen union and disconnect condenser pipe from compressor pipe.
  2. Remove and discard ’O’ ring.

CAUTION: To prevent damage to air conditioning pipes or components, use two spanners when loosening unions.

Remove and discard ’O’ ring.

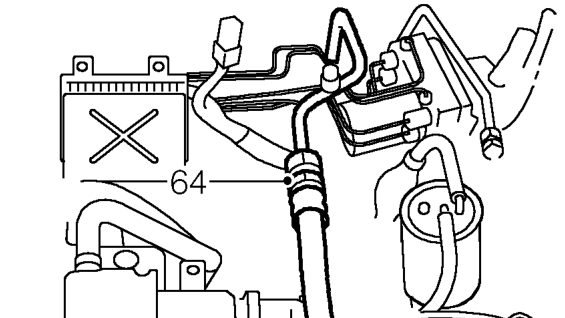

  1. Loosen union and disconnect compressor pipe from expansion valve pipe.
  2. Remove and discard ’O’ ring.

CAUTION: Immediately cap all air conditioning pipes to prevent ingress of dirt and moisture into the system.
