Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Adjustment

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Doors › Adjustment
BodyAdjustment

Adjustment

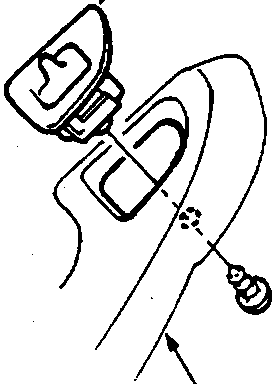

Diagram of power window switch and armrest with callouts A and B
A Power window switch B Armrest

Front door:

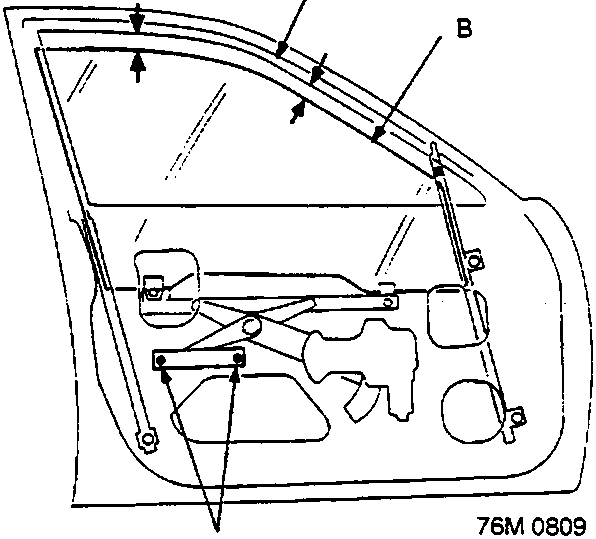

Diagram of front door regulator mechanism showing glass run channel, glass, and roller guide bolts with callouts A, B, and C
A Glass run channel B Glass C Roller guide bolts

Note:

  • Place the vehicle on a firm, level surface when adjusting the glass.
  • Check the weatherstrips and glass run channel for damage or deterior ation and replace if necessary.
  1. Remove the door panel and peel off the plastic cover.
  2. Rear Door:
    Remove the power window switch from the armrest (power window model).
    Connect the power window switch to the power window motor connector (power window model). Install the regulator handle on the door regulator (manual window model).

Rear Door:

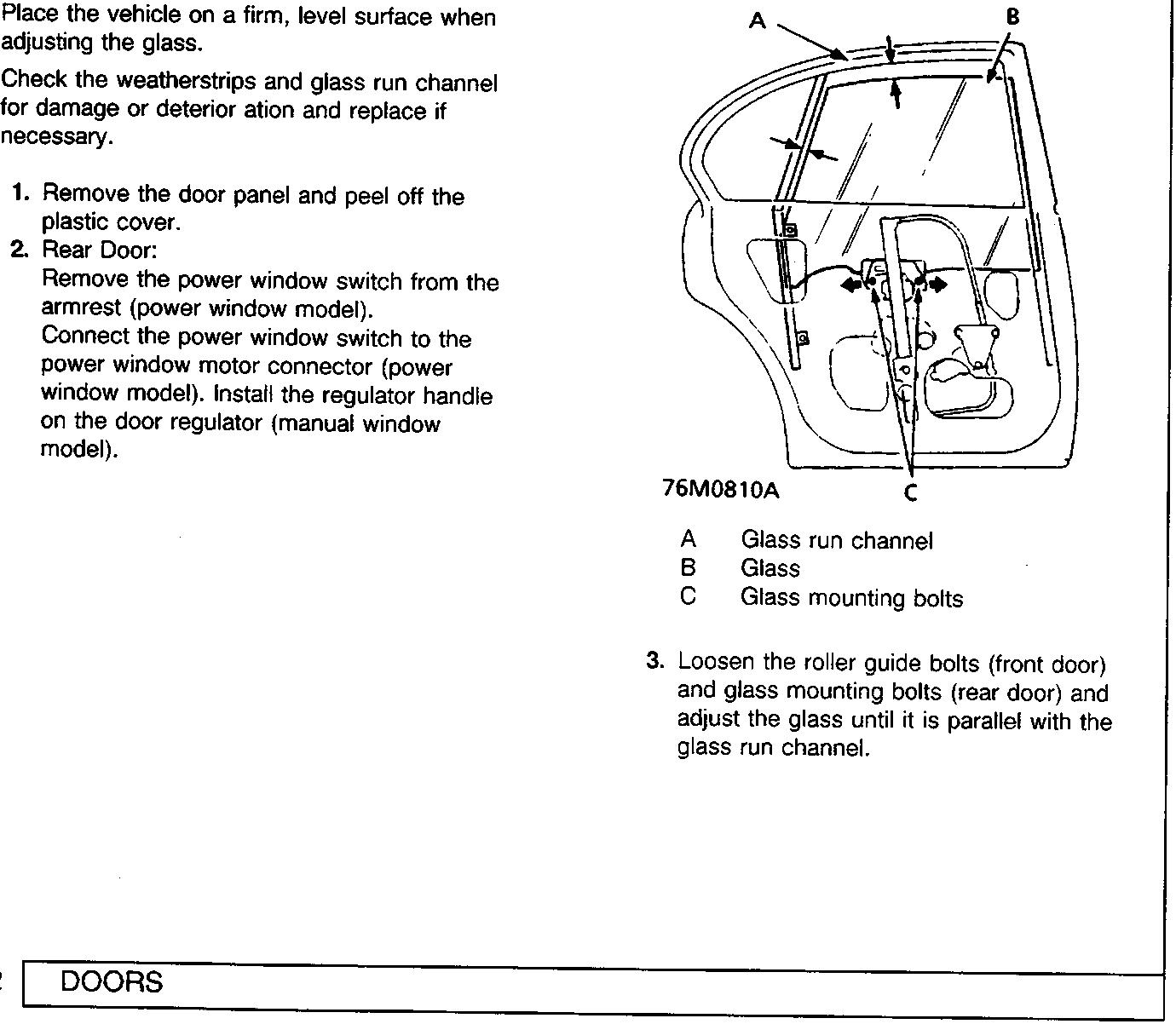

Diagram of rear door regulator mechanism showing glass run channel, glass, and glass mounting bolts with callouts A, B, and C
A Glass run channel B Glass C Glass mounting bolts
  1. Loosen the roller guide bolts (front door) and glass mounting bolts (rear door) and adjust the glass until it is parallel with the glass run channel.
