Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Component Location

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Doors › Component Location
BodyComponent Location

Component Location

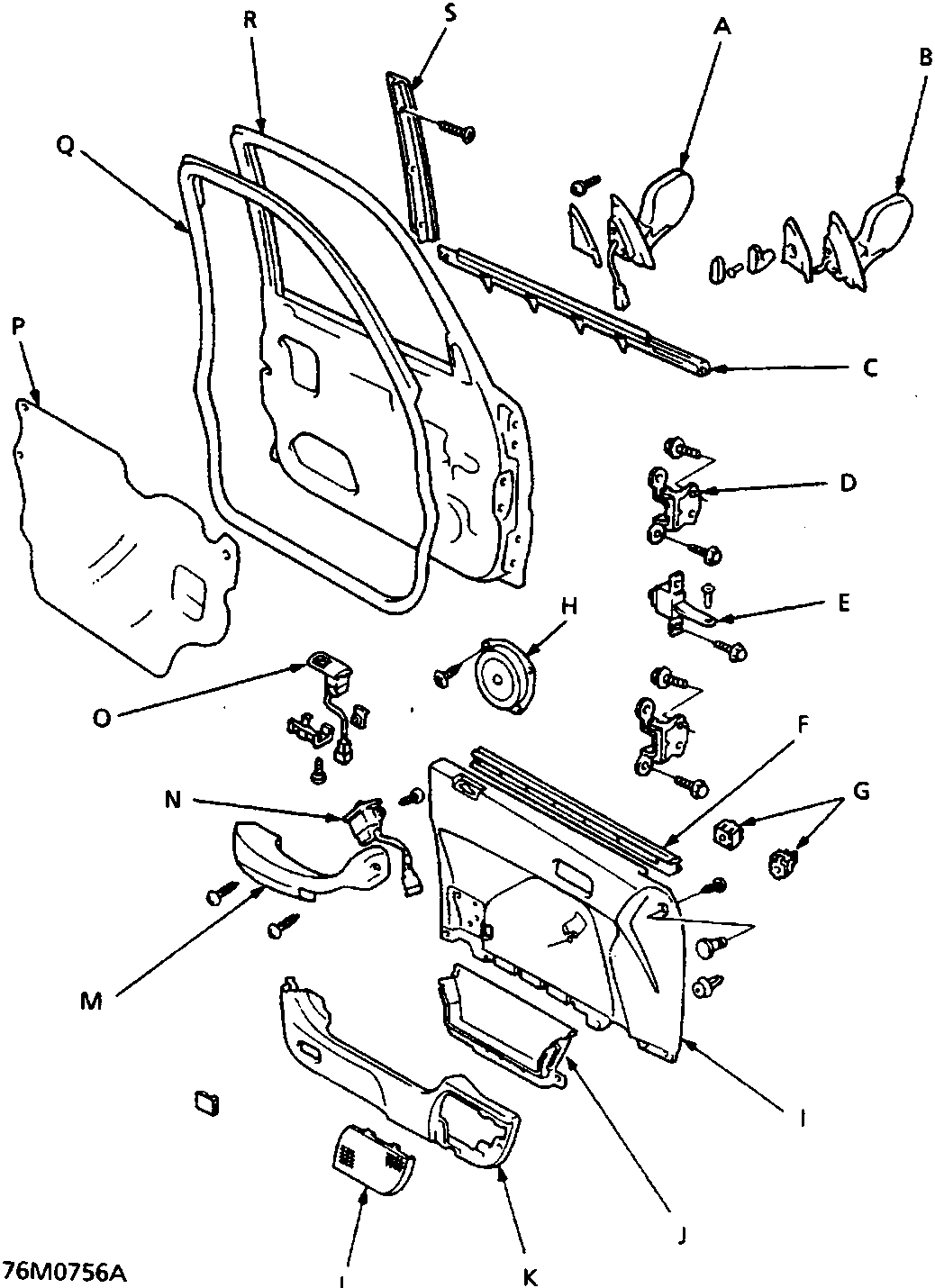

Exploded view diagram of the front door components showing parts labeled A through S, including mirrors, panel, hinges, and mouldings. Figure number 76M0756A is printed at the bottom left of the diagram.
  1. A Power door mirror
  2. B Manual door mirror
  3. C Outer moulding
  4. D Hinge
  5. E Detent rod
  6. F Inner moulding
  7. G Screw grommets
  8. H Speaker
  9. I Door panel
  10. J Door pocket inner
  11. K Door pocket
  12. L Speaker cover
  13. M Armrest
  14. N Power door mirror switch (driver's)
  15. O Security indicator
  16. P Plastic cover
  17. Q Weatherstrip
  18. R Door
  19. S Sash garnish
