  1. Raise the glass fully.
  2. Remove:
  • Door panel
  • Plastic cover

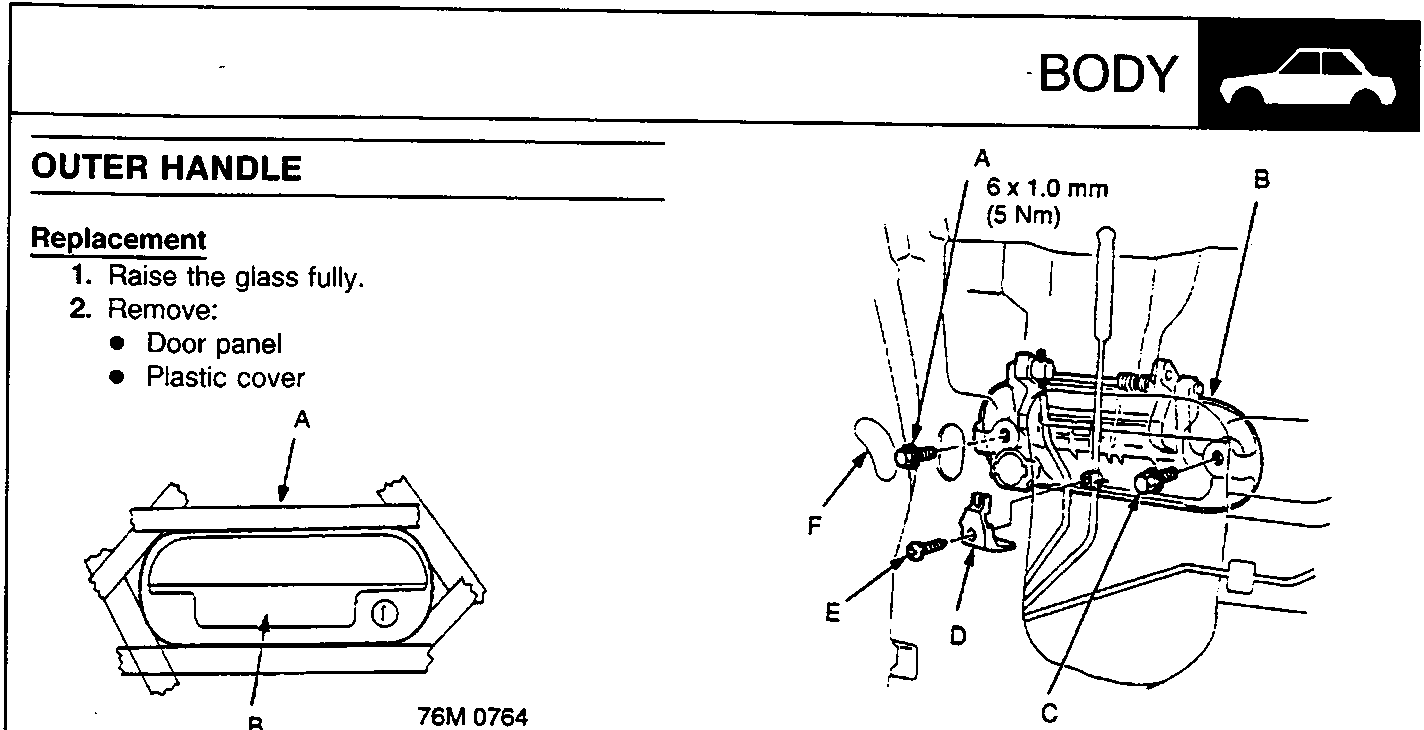

Diagram showing outer handle assembly with labels A and B, reference 76M 0764

A Protective tape
B Outer handle

Diagram showing door inner mechanism with bolts and clips, reference 76M 0766

A Bolt
B Outer handle
C Bolt
D Clip
E Screw
F Hole seal

CAUTION: Use protective tape around the outer handle to prevent damage.

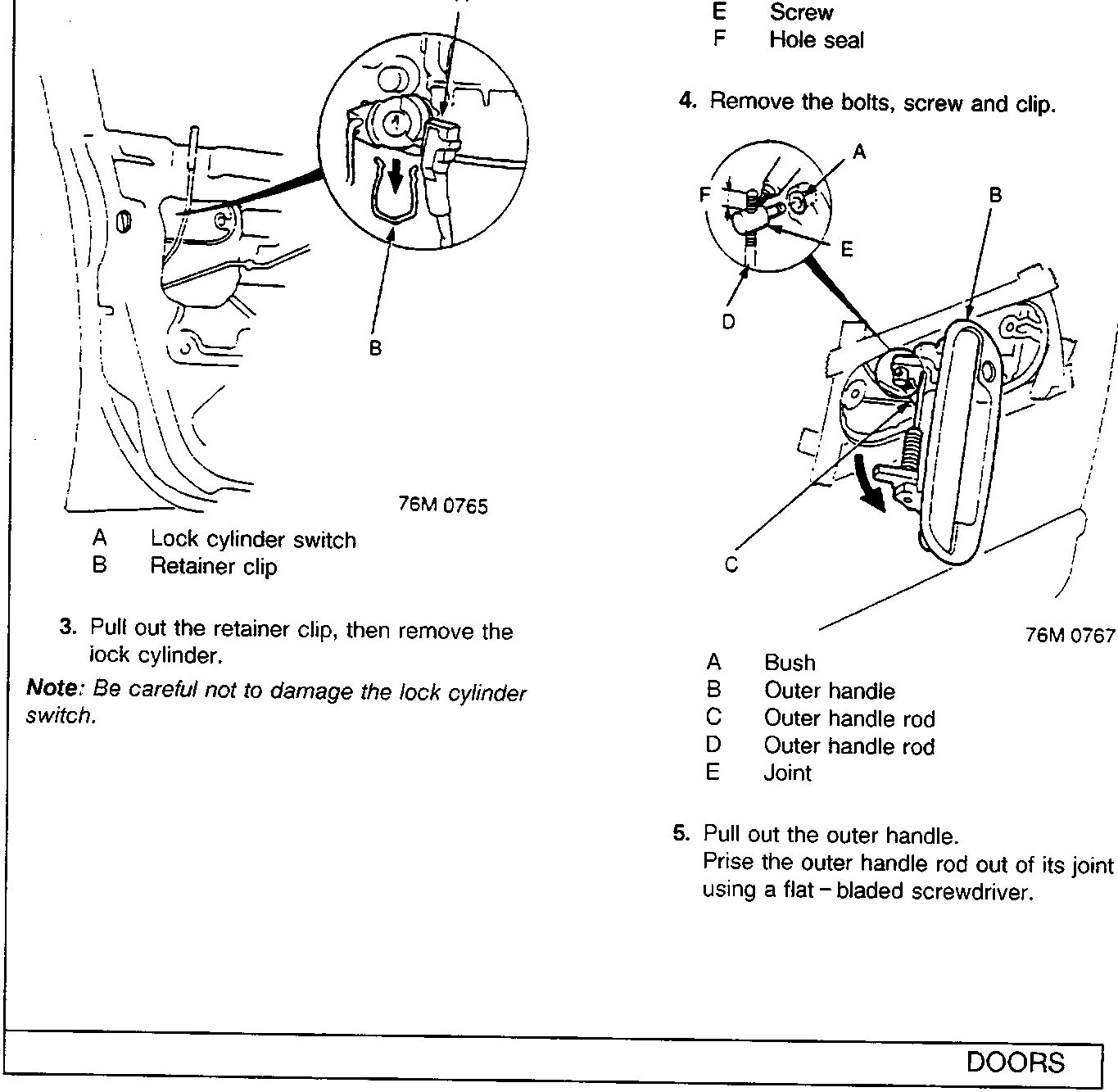

Diagram showing lock cylinder switch and retainer clip, reference 76M 0765

A Lock cylinder switch
B Retainer clip

  1. Pull out the retainer clip, then remove the lock cylinder.

Note: Be careful not to damage the lock cylinder switch.

  1. Remove the bolts, screw and clip.
Diagram showing outer handle removal with rods and joint, reference 76M 0767

A Bush
B Outer handle
C Outer handle rod
D Outer handle rod
E Joint

  1. Pull out the outer handle.
    Prise the outer handle rod out of its joint using a flat - bladed screwdriver.
