Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Latch

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Doors › Latch
BodyLatch

Note: To ease reassembly, note the location (F) of the outer handle rod on the joint before disconnecting it.

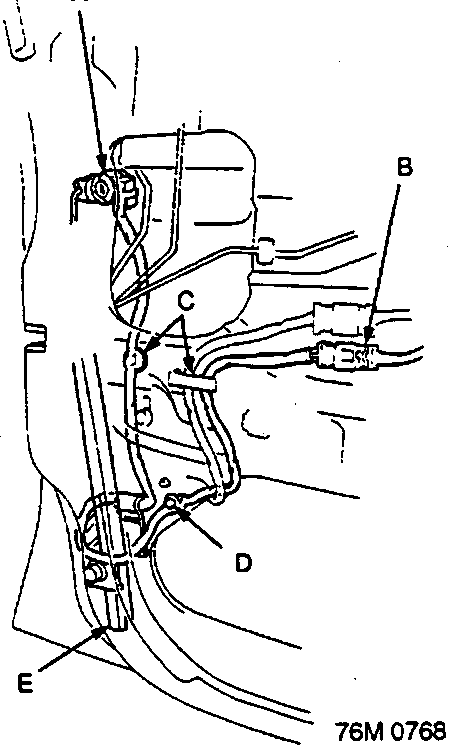

Diagram showing lock cylinder, connector, clips, clip, and centre channel components labeled A through E.
A Lock cylinder B Connector C Clips D Clip E Centre channel
  1. Remove the clips and disconnect the connector, then remove the lock cylinder.
  2. Installation is the reverse of the removal procedure.
  3. Check the door lock operation.

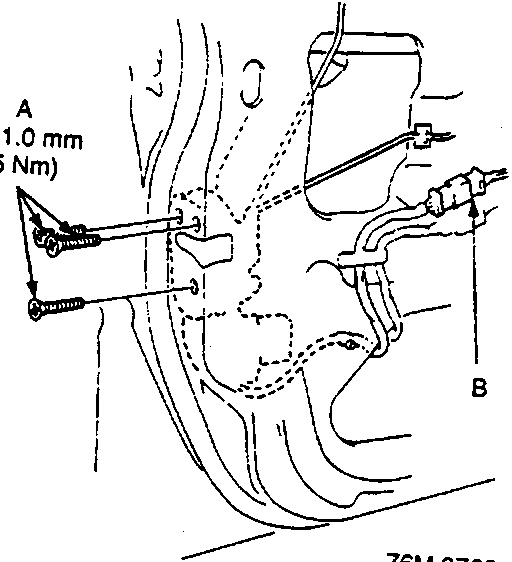

Diagram showing screws and connector at the upper part of the door mechanism, with screw size 6 x 1.0 mm (5 Nm).
A Screws B Connector
  1. Remove the screws, and disconnect the connector.

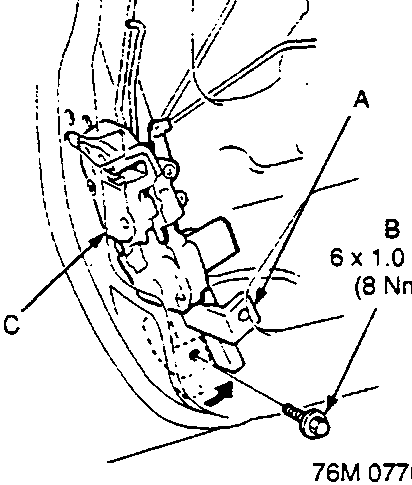

Diagram showing centre channel, bolt, and latch components, with bolt size 6 x 1.0 mm (8 Nm).
A Centre channel B Bolt C Latch
  1. Remove the bolt and slide the centre channel toward the end of the door, then remove the latch through the hole in the door.
  2. Installation is the reverse of the removal procedure.
  3. Check the door lock operation.

LATCH

Replacement

  1. Raise the glass fully.
  2. Remove:
    • Door panel
    • Plastic cover
    • Outer handle
