REAR DOOR PANEL/PLASTIC COVER

Replacement

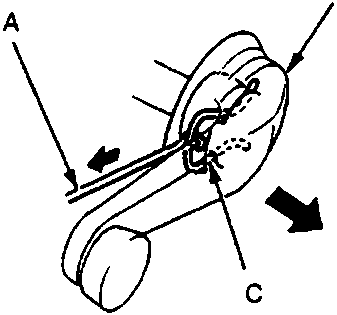

Diagram showing regulator handle assembly with labels A Wire hook, B Regulator handle, C Clip

A Wire hook
B Regulator handle
C Clip

  1. If applicable, remove the regulator handle by pulling the clip out with a wire hook.

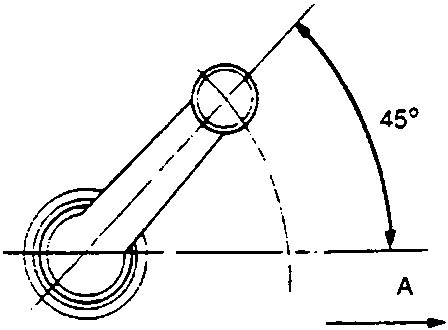

Diagram showing regulator handle angled at 45 degrees with label A Front of vehicle

A Front of vehicle

Note: Install the regulator handle such that it points forward and up at a 45° angle with the glass closed.

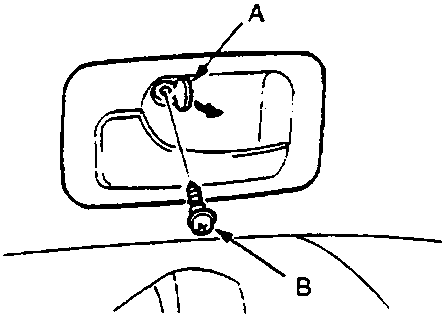

Diagram showing cap and screw on door panel with labels A Cap, B Screw

A Cap
B Screw

  1. Prise out the cap and remove the screw.

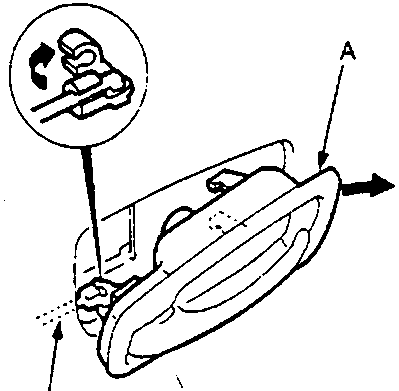

Diagram showing inner handle being pulled out with labels A Inner handle, B Inner handle rod

A Inner handle
B Inner handle rod

  1. Pull the inner handle out half – way and disconnect the inner handle rod, then remove the inner handle.
