Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Motor, drain tube and frame

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Doors › Motor, drain tube and frame
BodyMotor, drain tube and frame

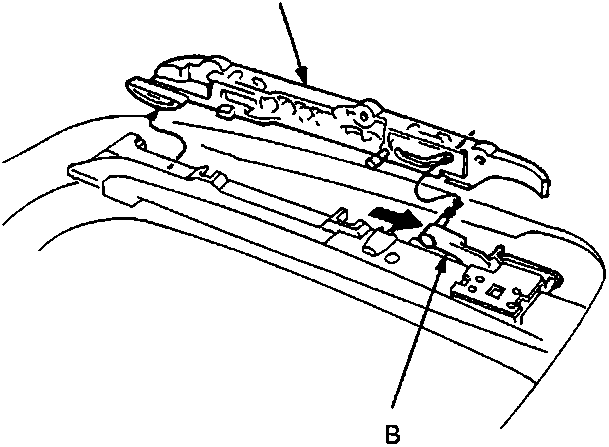

Diagram of sunroof glass bracket and cable slider with callouts A and B

A Glass bracket

B Cable slider

  1. Using the sunroof wrench, move the cable slider. Pull out the glass bracket from the cable slider, then remove the glass bracket.
  2. Installation is the reverse of the removal procedure.

MOTOR, DRAIN TUBE AND FRAME

Replacement

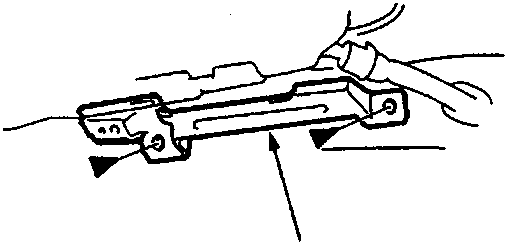

Diagram showing grab handle bracket installation with callout A

A Grab handle bracket

  • Bolt locations and quantities are shown by black triangles.

CAUTION: Be careful not to damage the seats, dashboard and other interior trim.

  1. Remove the glass and headliner.
  2. Remove the grab handle brackets.

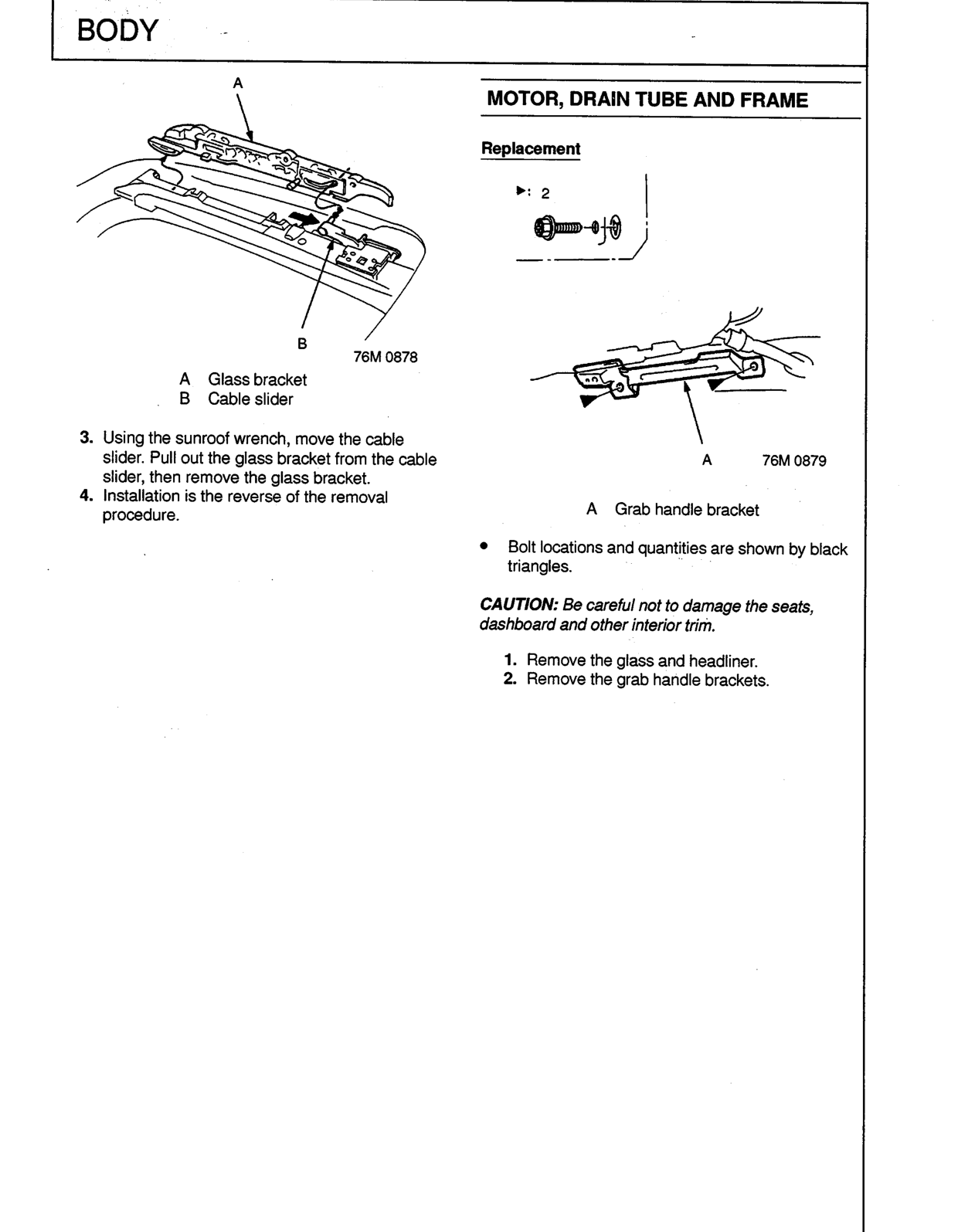

Original page
