Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Glass/regulator

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Doors › Glass/regulator
BodyGlass/regulator · page 1 of 2

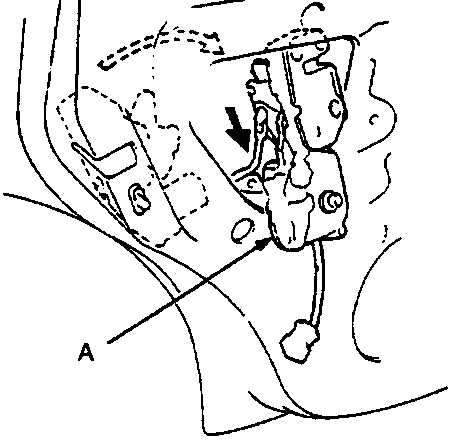

Diagram of a door latch mechanism with callout A pointing to the latch assembly.
A Latch 4. Turn the latch, then remove it through the hole in the door. 5. Installation is the reverse of the removal procedure. 6. Check the door lock operation.

GLASS/REGULATOR

Replacement

1. Remove:
  • Door panel
  • Plastic cover
Diagram showing bolts securing glass to regulator, with callouts A (Glass) and B (Bolts), and dimension 6 x 1.0 mm (6 Nm).
A Glass B Bolts 2. Carefully move the glass until you can see the bolts securing the glass to the regulator. 3. Remove the bolts securing the glass to the regulator.

Note: Take care not to drop the glass inside the door.

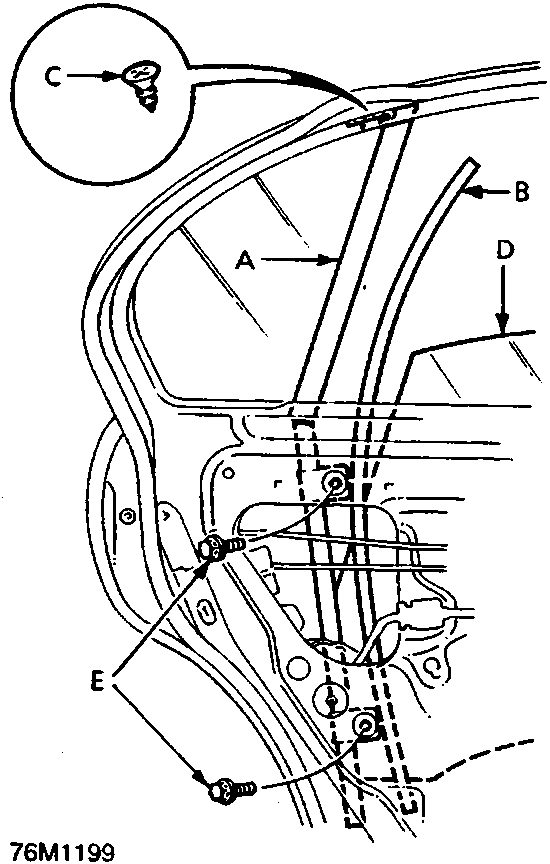

Diagram of rear window channel and glass run channel with callouts A (Rear channel), B (Glass run channel), C (Screws), D (Glass), and E (Bolts).
A Rear channel B Glass run channel C Screws D Glass E Bolts 4. Remove the screws and bolts securing the rear window channel to the door. 5. Peel the glass run channel out of the rear channel, then pull the rear channel out through the window aperture.
