Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Outer moulding

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Doors › Outer moulding
BodyOuter moulding

OUTER MOULDING

Replacement

Diagram showing clip A and arrow indicating removal direction
Diagram showing clip A and arrow indicating removal direction

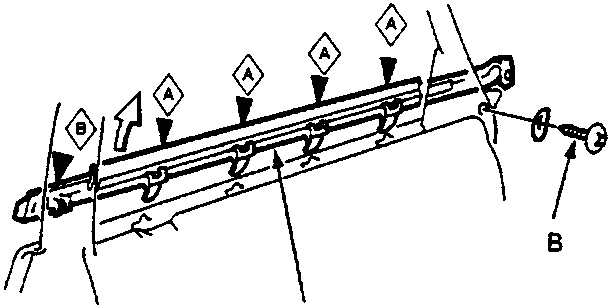

Diagram of outer moulding C with clips A, screw B, and arrows indicating removal sequence

A Clip

B Screw

C Outer moulding

CAUTION: Wear gloves to remove the outer moulding.

Note:

  • Clip locations and quantities are shown by black triangles
  • Take care not to twist or scratch the outer moulding.
  • If necessary, replace any damaged clips.
  1. Remove:
    • Door panel
    • Door mirror
  2. Lower the glass and remove the screw.
  3. Starting at the rear, pry the outer moulding up and detach the clips, then remove the outer moulding.
  4. Installation is the reverse of the removal procedure.

SASH GARNISH

Replacement

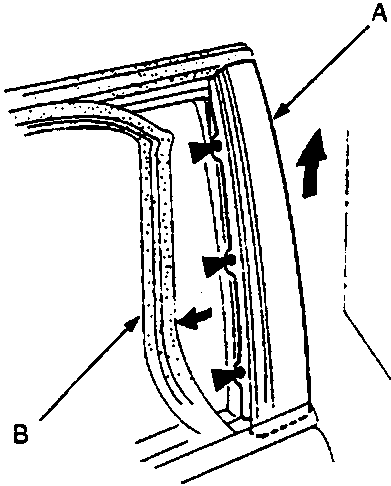

Diagram of sash garnish A and glass run channel B with screw 3 and arrows indicating removal direction

A Sash garnish

B Glass run channel

Note:

  • Screw locations and quantities are shown by black triangles.
  • Take care not to scratch the sash garnish.
  1. Lower the glass and peel the glass run channel.
  2. Remove the screw, then remove the sash garnish by hand.
  3. Installation is the reverse of the removal procedure.
  4. To install, fit the glass run channel into the door sash.

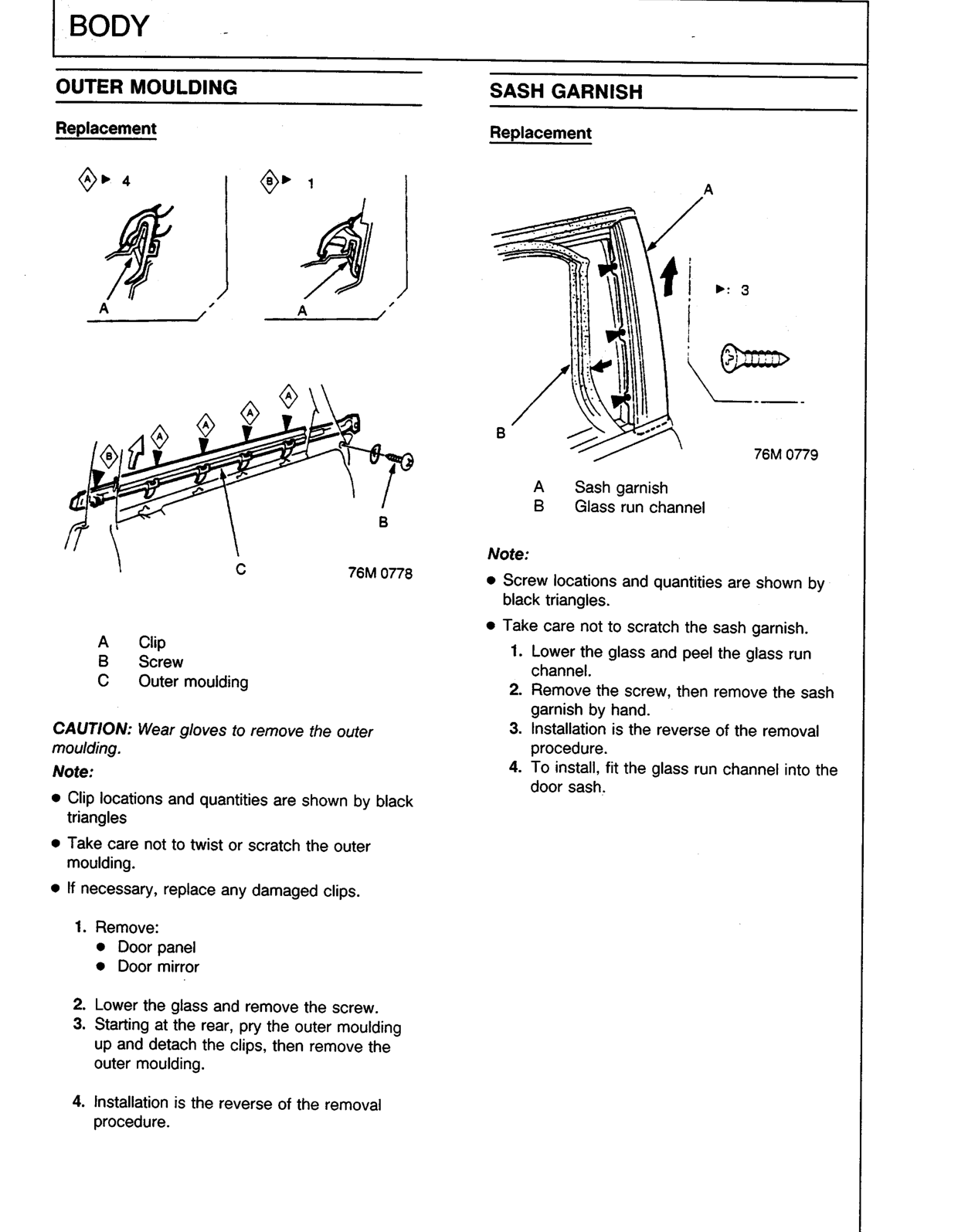

Original page
