GLASS CLOSING

Adjustment

Diagram showing glass bracket, cable slider, glass closed position, and drain channel labels A, B, C, D.
  • A Glass bracket
  • B Cable slider
  • C Glass closed position
  • D Drain channel

Open the glass about a foot, then close it to check where rear edge begins to rise. If it rises too soon and seats too tightly against the roof panel, or too late and does not seat tightly enough adjust it.

  1. Remove the headliner.
  2. Remove the motor.
  3. Align the fully closed position of the glass bracket and cable slider on each side.
Diagram showing motor, hole, idle cam, and transmission gear labels A, B, C, D.
  • A Motor
  • B Hole
  • C Idle cam
  • D Transmission gear
  1. Check the fully closed position of the motor (idle cam) as shown.

Note: If necessary, adjust position of the idle cam by turning the motor (transmission gear) with the sunroof wrench.

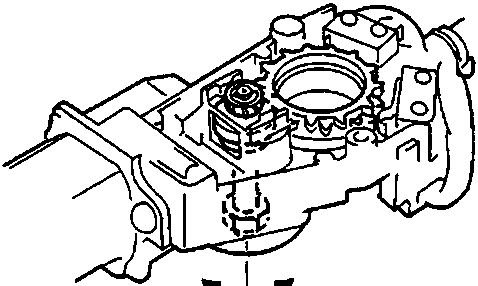

Diagram of motor assembly showing rotation direction.
  1. Install the motor, check the operation of the glass (from tilt-up position to fully closed position, from fully open position to fully closed position) by operating the sunroof switch.

Note: Check the height of the glass.

  1. Close the glass fully, then check for water leaks.

Note: Do not use high pressure water.
