Glass and sunshade

GLASS AND SUNSHADE

Replacement

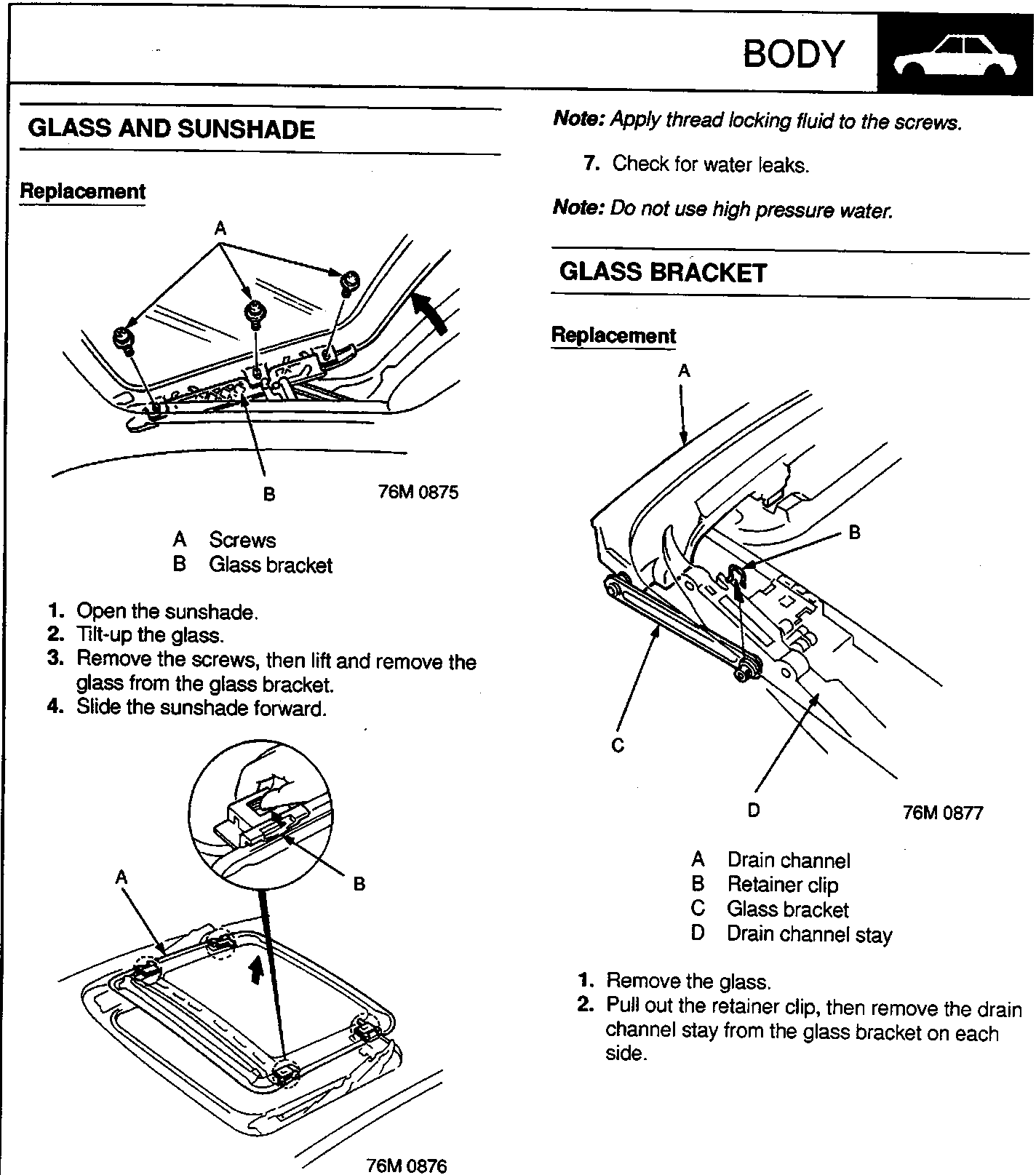

1. Open the sunshade.
2. Tilt-up the glass.
3. Remove the screws, then lift and remove the glass from the glass bracket.
4. Slide the sunshade forward.

5. Detach the stoppers, then remove the sunshade from the guide rails.
6. Installation is the reverse of the removal procedure.
7. Check for water leaks.

Note: Apply thread locking fluid to the screws.

Note: Do not use high pressure water.

GLASS BRACKET

Replacement

1. Remove the glass.
2. Pull out the retainer clip, then remove the drain channel stay from the glass bracket on each side.
