FRONT DOOR PANEL/PLASTIC COVER

Replacement

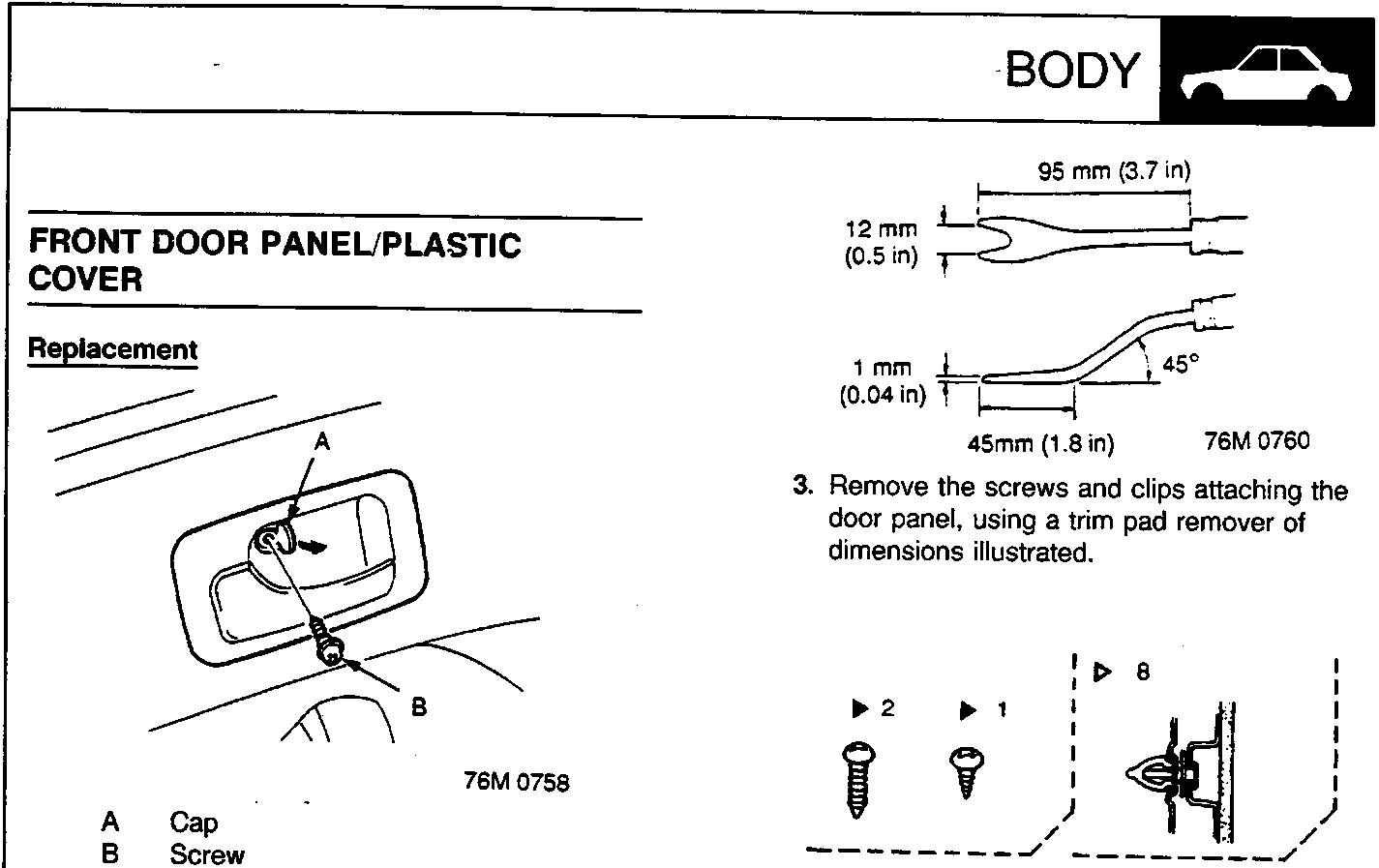

Diagram showing the inner door handle area with callouts A (Cap) and B (Screw), figure number 76M 0758

A Cap

B Screw

Technical drawing of a trim pad remover tool with dimensions: 95 mm (3.7 in) length, 12 mm (0.5 in) width at one end, 1 mm (0.04 in) thickness, 45° angle, and 45mm (1.8 in) length at the other end, figure number 76M 0760
  1. Remove the screws and clips attaching the door panel, using a trim pad remover of dimensions illustrated.

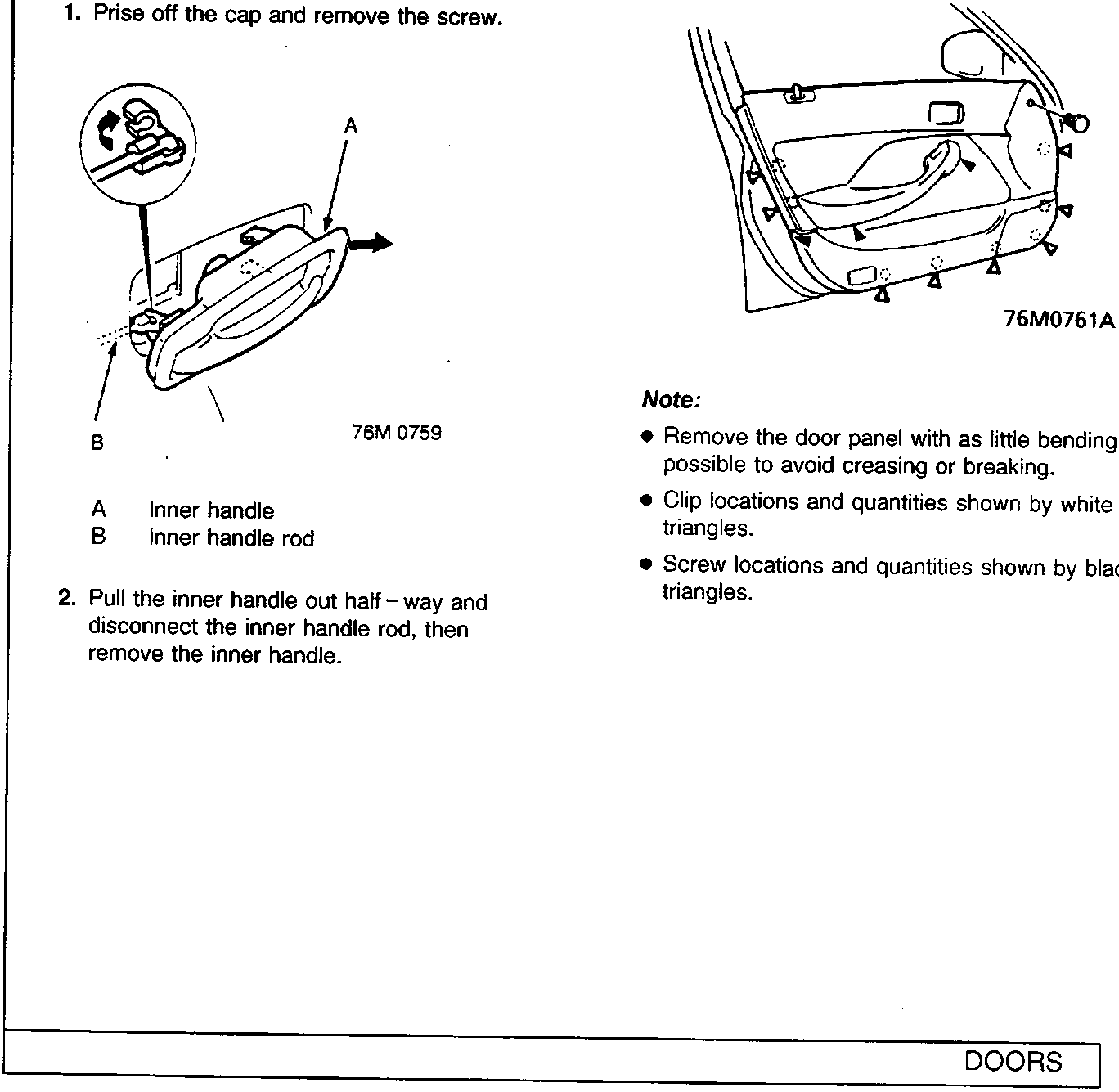

Step 1 diagram showing the inner door handle assembly with callout A (Inner handle) and B (Inner handle rod), figure number 76M 0759
  1. Prise off the cap and remove the screw.

A Inner handle

B Inner handle rod

  1. Pull the inner handle out half – way and disconnect the inner handle rod, then remove the inner handle.
Diagram of the front door panel removed, showing locations of clips (white triangles) and screws (black triangles), figure number 76M0761A

Note:

  • Remove the door panel with as little bending as possible to avoid creasing or breaking.
  • Clip locations and quantities shown by white triangles.
  • Screw locations and quantities shown by black triangles.
