Doors › Replacement
BodyReplacement · page 1 of 3

Replacement

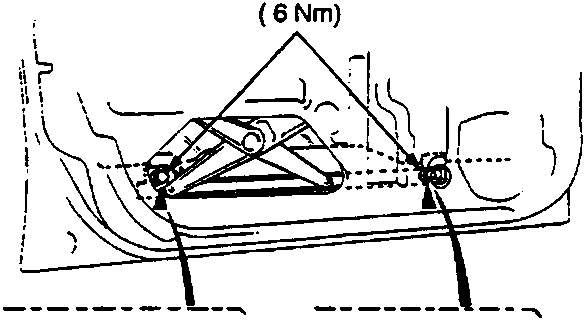

Diagram showing bolts and guide on a glass regulator assembly with dimension 6 x 1.0 mm (6 Nm)

A Bolts

B Guide

  1. Remove:
    • Door panel
    • Plastic cover
  2. Carefully move the glass until you can see the bolts, then loosen them.
  3. Slide the guide to the rear, then remove the glass.

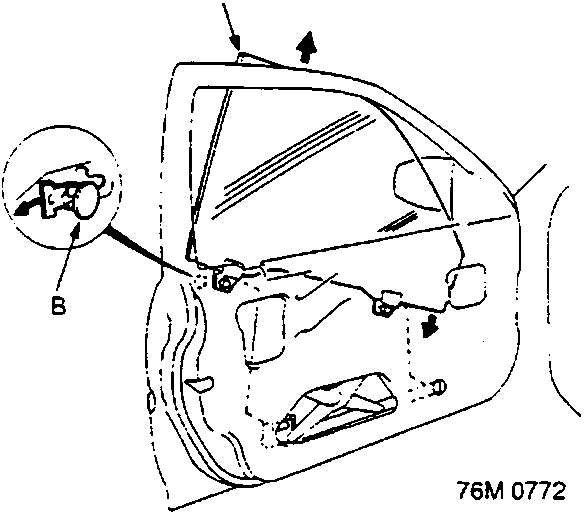

Diagram of door interior showing glass stopper and window aperture

A Glass

B Stopper

  1. Carefully pull the glass out through the window aperture.

Note: Take care not to drop the glass inside the door.

Front channel

  1. Remove the speaker and cover panel.
  2. Peel the glass run channel out of the front and centre channels.

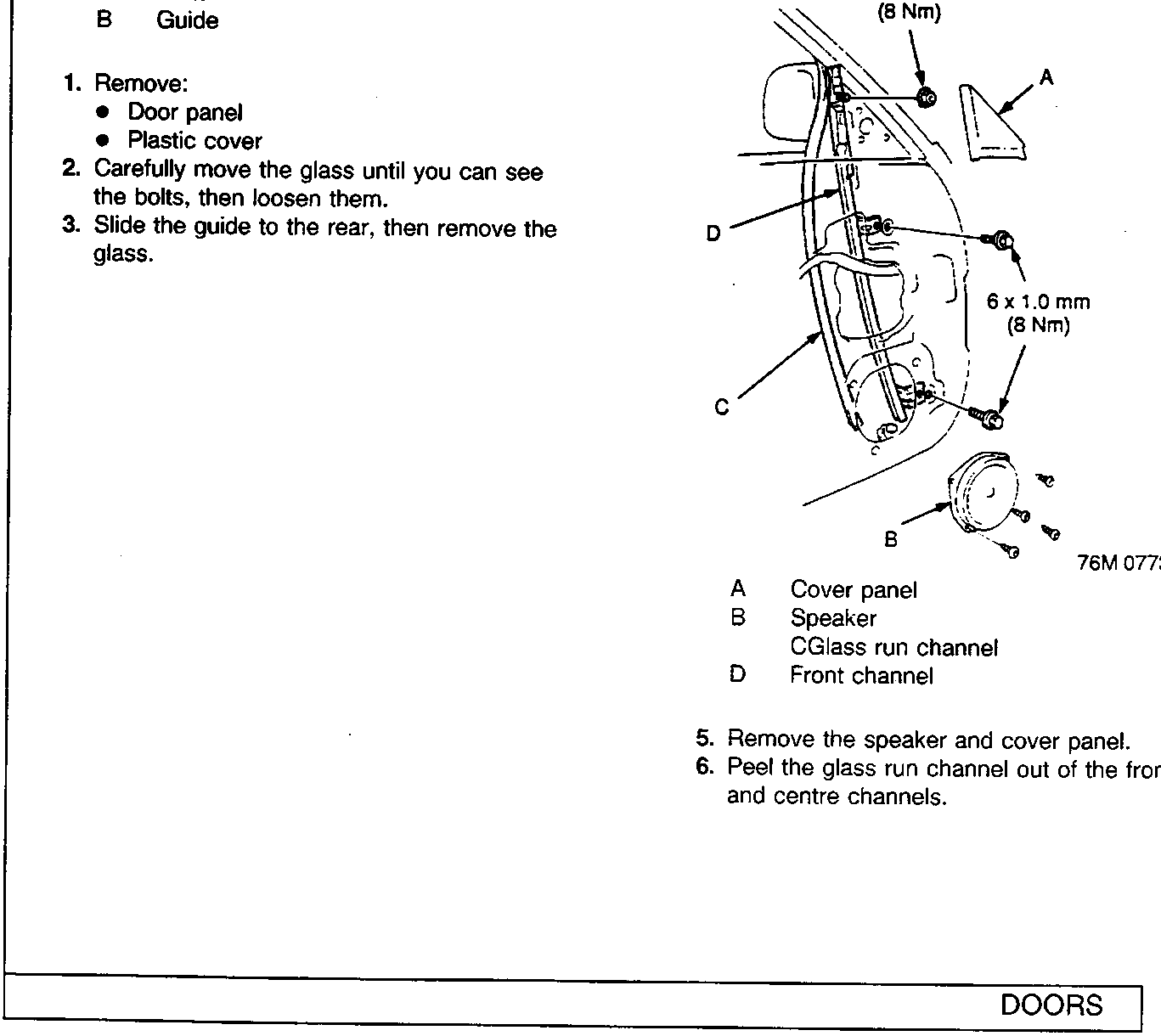

Diagram of front channel removal showing cover panel, speaker, glass run channel, and front channel with dimensions 6 x 1.0 mm (8 Nm)

A Cover panel

B Speaker

C Glass run channel

D Front channel
