Sash garnish

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Doors › Sash garnish
BodySash garnish

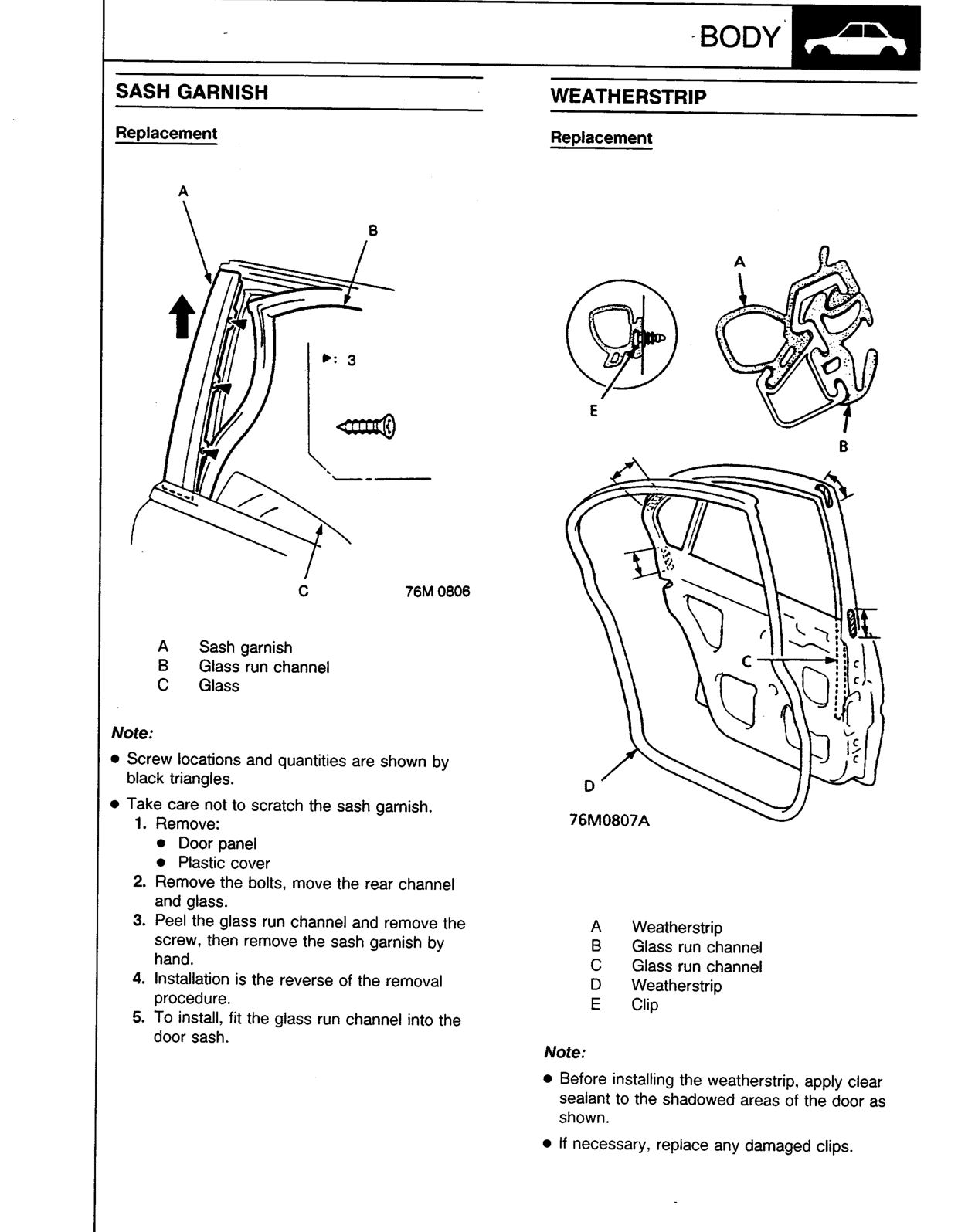

SASH GARNISH

Replacement

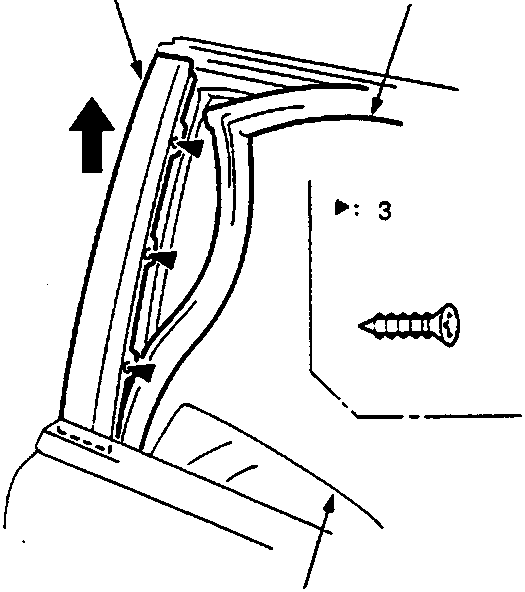

Diagram showing sash garnish (A), glass run channel (B), and glass (C) with a screw and reference number 3.
  1. Sash garnish
  2. Glass run channel
  3. Glass

Note:

  • Screw locations and quantities are shown by black triangles.
  • Take care not to scratch the sash garnish.
  1. Remove:
    • Door panel
    • Plastic cover
  2. Remove the bolts, move the rear channel and glass.
  3. Peel the glass run channel and remove the screw, then remove the sash garnish by hand.
  4. Installation is the reverse of the removal procedure.
  5. To install, fit the glass run channel into the door sash.

WEATHERSTRIP

Replacement

Close-up diagram of a clip (E) securing a component.

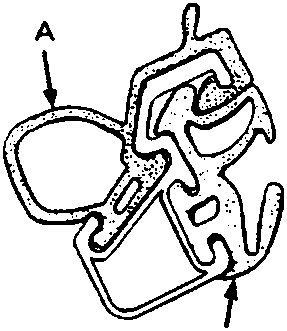

Diagram showing weatherstrip (A) and glass run channel (B).

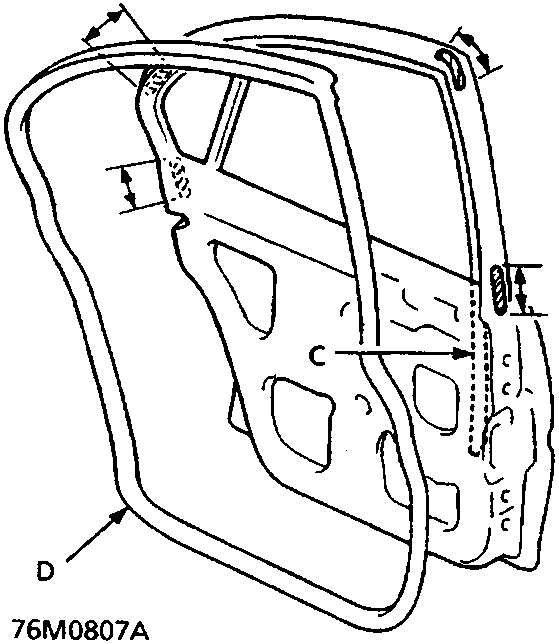

Diagram showing weatherstrip (A), glass run channel (C), weatherstrip (D), and their installation positions on a door frame.
  1. Weatherstrip
  2. Glass run channel
  3. Glass run channel
  4. Weatherstrip
  5. Clip

Note:

  • Before installing the weatherstrip, apply clear sealant to the shadowed areas of the door as shown.
  • If necessary, replace any damaged clips.
