Component Location (page 2 of 2)
- Make
- Rover
- Model
- 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
- Section
- Doors

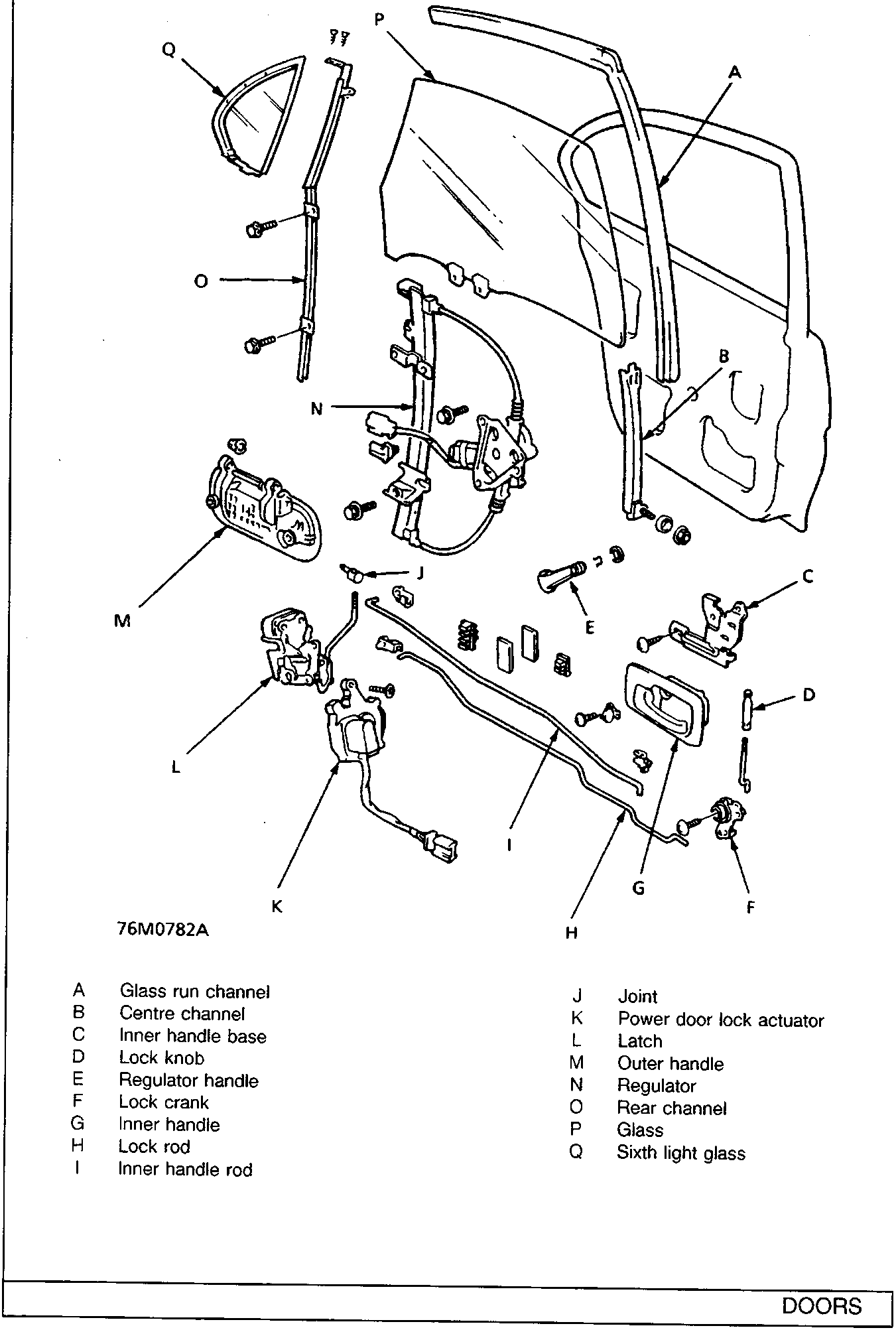

BodyComponent Location · page 2 of 2
76M0782A
| A | Glass run channel | J | Joint |
| B | Centre channel | K | Power door lock actuator |
| C | Inner handle base | L | Latch |
| D | Lock knob | M | Outer handle |
| E | Regulator handle | N | Regulator |
| F | Lock crank | O | Rear channel |
| G | Inner handle | P | Glass |
| H | Lock rod | Q | Sixth light glass |
| I | Inner handle rod |
