Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Alignment

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Exterior fittings › Alignment
BodyAlignment
  1. Open boot lid.
  2. Disconnect the wiring harness connectors from the licence plate lights, and lock switch.
  3. Apply protective covering to boot lid edges and rear wings and bodywork.
  4. Slacken the bolts securing the boot lid to hinges.
  5. Support the boot lid using an assistant and remove the bolts.
  6. Lift the boot lid clear of the vehicle.

Note: Before pulling out the wire harness, tie a string to the end of it so you can pull it back in when the boot lid is reinstalled.

  1. Installation is the reverse of the removal procedure.

Note:

  • Make sure the connectors are connected properly.
  • Make sure the boot lid locks securely.
  • Make sure the boot lid opens properly.
  • Align the boot lid.

Alignment

  1. Adjust the boot lid fit to the boot lid opening by moving the striker.
  2. Turn the boot lid edge cushions as necessary, to make the boot lid fit flush with the body at the rear and side edges.
  3. The boot lid hinges can be adjusted fore and aft by using the elongated holes.

Torsion bar adjustment

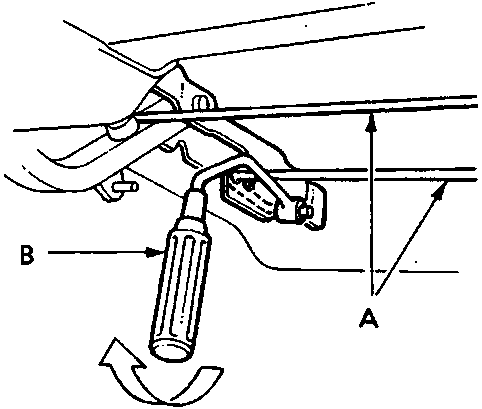

Diagram showing torsion bar assembly tool inserted into the boot lid hinge mechanism, with callouts A and B indicating the torsion bar and tool respectively.
Diagram of the torsion bar mounting bracket showing two positions: a white circle labeled C and a black circle labeled D.

76M1205

ATorsion bar
BTorsion bar assembly tool

Note:

  • Adjust the torsion bars fore or aft with the torsion bar assembly tool as shown.
  • White circle at position 'C' indicates normal position
  • Black circle at position 'D' indicates higher tension
