BodyInstallation · page 1 of 4

Installation

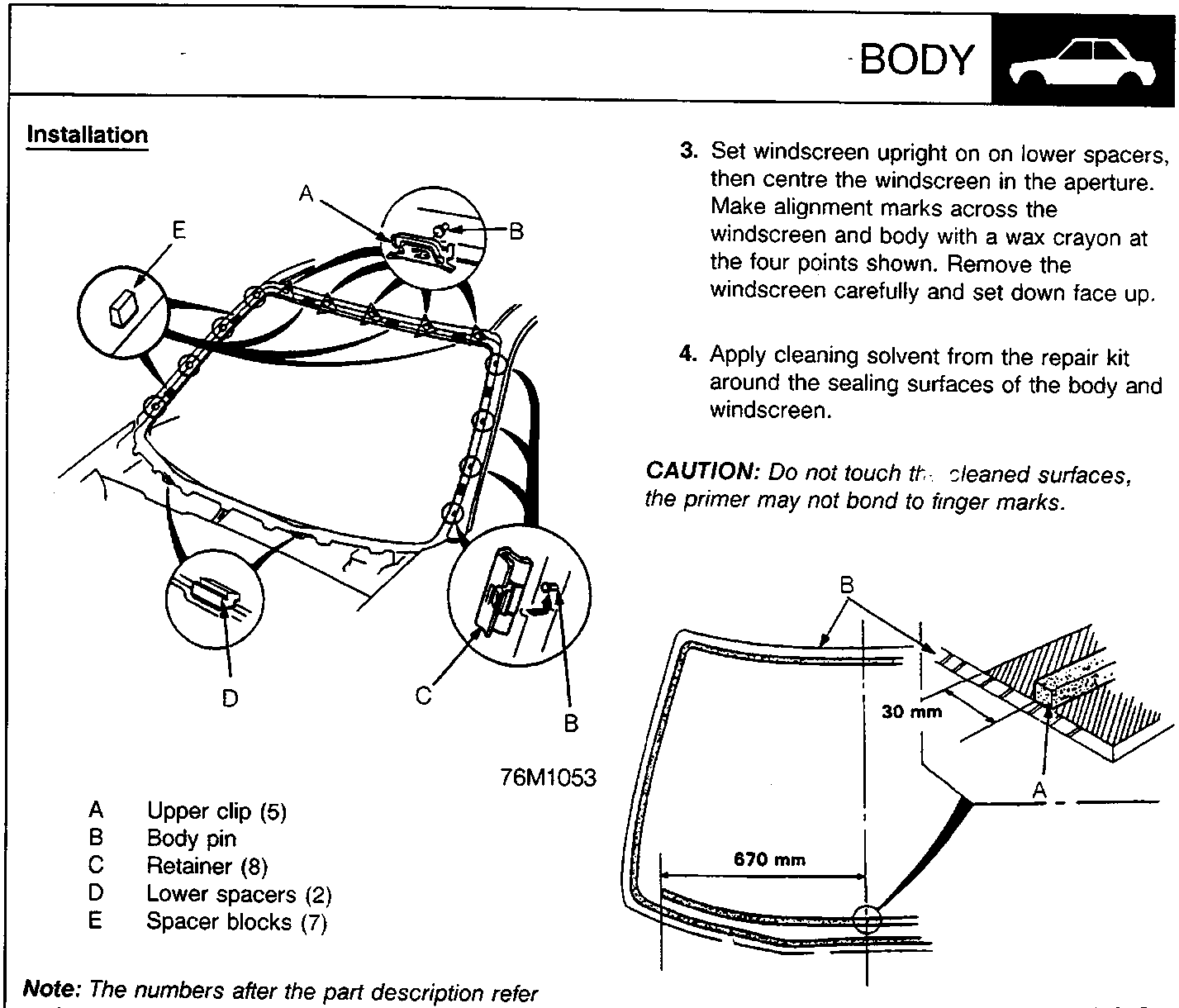

Diagram showing windscreen installation components including upper clips, body pins, retainers, lower spacers and spacer blocks with callouts A through E.

Note: The numbers after the part description refer to the quantities of the parts used.

  1. Install clips and retainers as shown.
  2. Peel off backing and fit new lower spacers and spacer blocks as shown.
  3. Set windscreen upright on on lower spacers, then centre the windscreen in the aperture. Make alignment marks across the windscreen and body with a wax crayon at the four points shown. Remove the windscreen carefully and set down face up.
  4. Apply cleaning solvent from the repair kit around the sealing surfaces of the body and windscreen.

CAUTION: Do not touch the cleaned surfaces, the primer may not bond to finger marks.

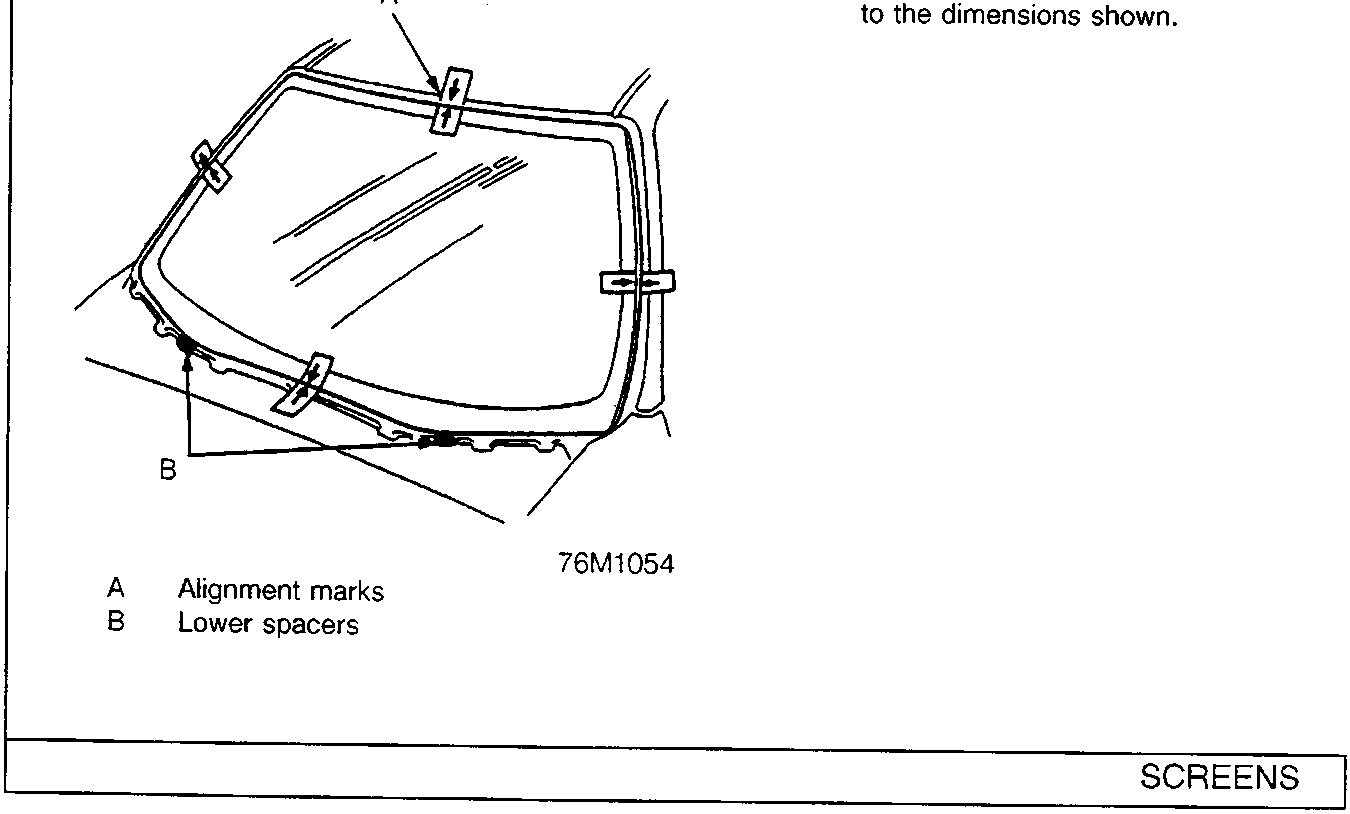

Diagram showing windscreen with alignment marks (A) and lower spacers (B) positioned for installation.
  1. Apply rubber dashboard seal to windscreen to the dimensions shown.
