MANUAL DOOR MIRROR

Replacement

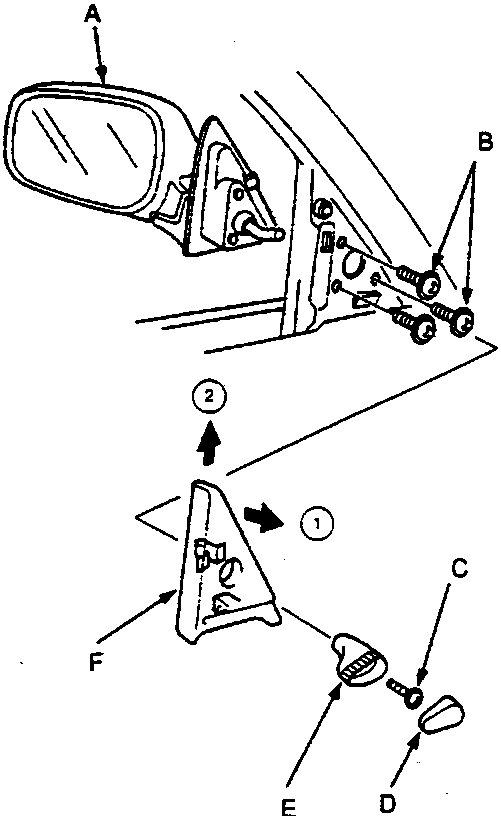

Diagram of manual door mirror assembly showing components A through F and disassembly sequence numbers 1 and 2

76M 0817

  1. A Door mirror
  2. B Screws
  3. C Screw
  4. D Cap
  5. E Control knob
  6. F Cover panel
  • Numbers in circles indicate disassembly sequence.
  1. Remove the cap and screw, then remove the control knob.
  2. Prise the cover panel out with a flat – bladed screwdriver, then remove it.

CAUTION: When prising with a flat – bladed screwdriver, wrap it with protective tape to prevent damage.

  1. Remove the screws while holding the door mirror.
  2. Installation is the reverse of the removal procedure.
  3. Check for water leaks.

Note: Do not use high pressure water.

MIRROR HOLDER

Replacement

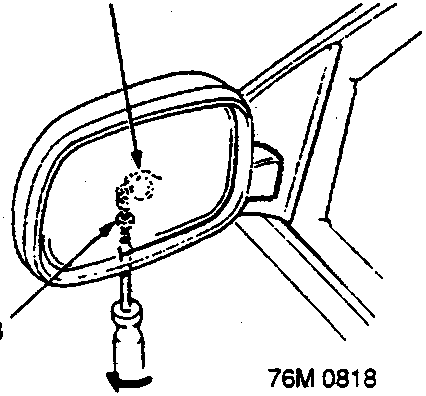

Diagram showing pivot A and mirror holder retaining screw B being loosened via service hole

76M 0818

  1. A Pivot
  2. B Mirror holder retaining screw
  1. Insert a screwdriver in the mirror through the service hole, then loosen the mirror holder retaining screw.

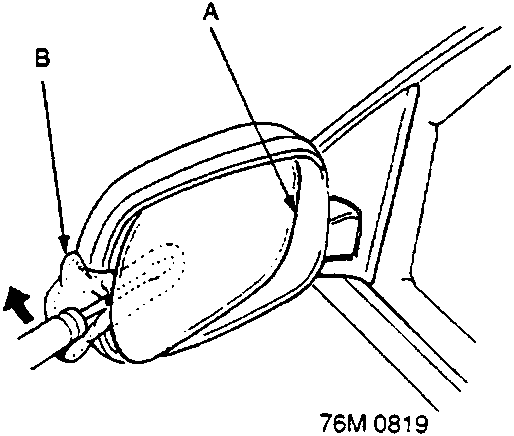

Diagram showing mirror holder A being prised out with cloth B wrapped around screwdriver

76M 0819

  1. A Mirror holder
  2. B Cloth
  1. Carefully prise out the mirror holder with a flat – bladed screwdriver as shown.

CAUTION: To prevent damage to the mirror, wrap the end of the screwdriver with a suitable piece of cloth.

  1. Installation is the reverse of the removal procedure.
