BodySub - frame

Sub - frame – diagram from the Body chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

SUB - FRAME

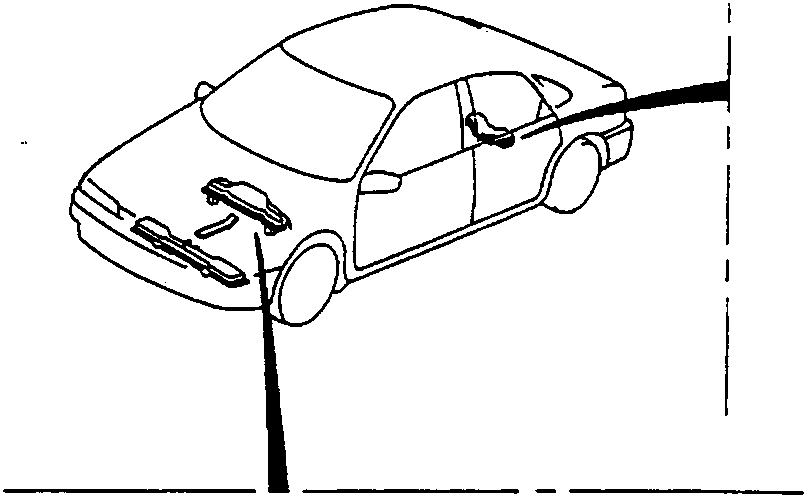

Diagram showing the rear of a car with an inset view of the rear cross beam (A) and special bolts (B) being installed.

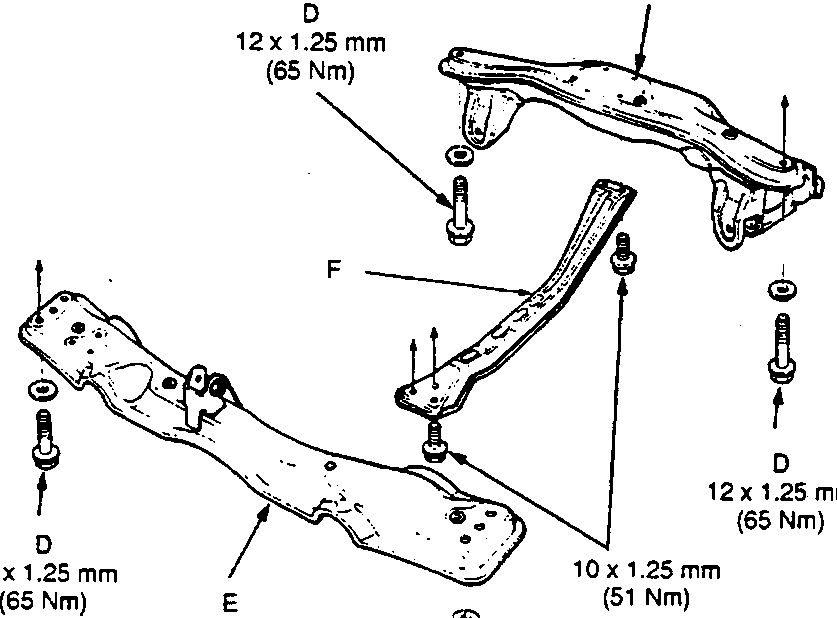

Exploded diagram of the sub-frame assembly showing the rear beam (C), front beam (E), centre beam (F), and special bolts (D) with their respective thread sizes and torque values.

76M 0981

A Rear cross beam D Special bolt
B Special bolts E Front beam
C Rear beam F Centre beam
