Front Bumper Replacement

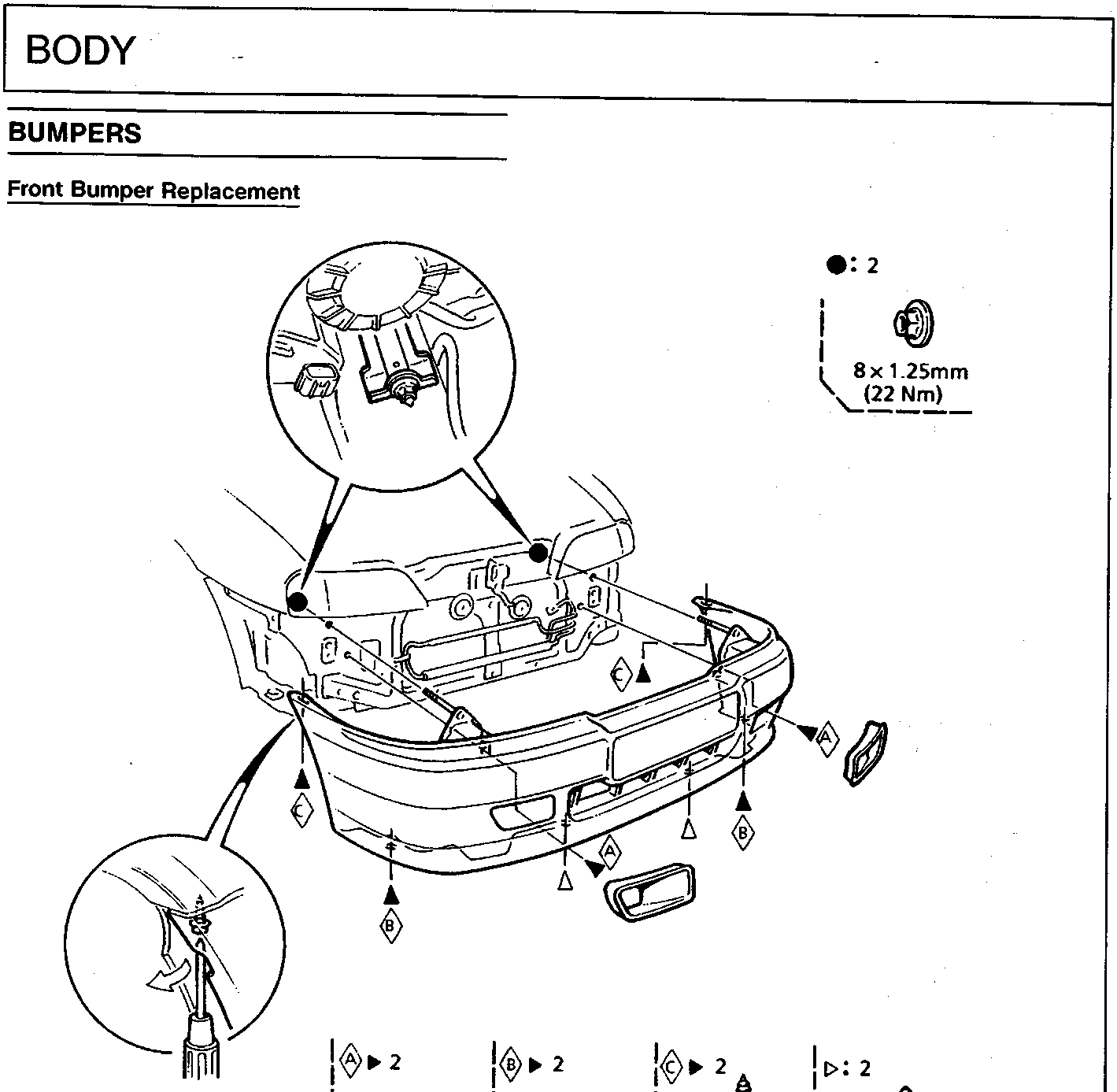

Diagram of front bumper replacement showing locations of screws, bolts, clips, and nuts indicated by triangles and circles. Includes callouts for fastener types A, B, C, D with quantities and a torque specification box.

Note:

  • Screw and bolt locations and quantities are shown by black triangles.
  • Clip locations and quantities are shown by white triangles.
  • Nut locations and quantities are shown by black circles.

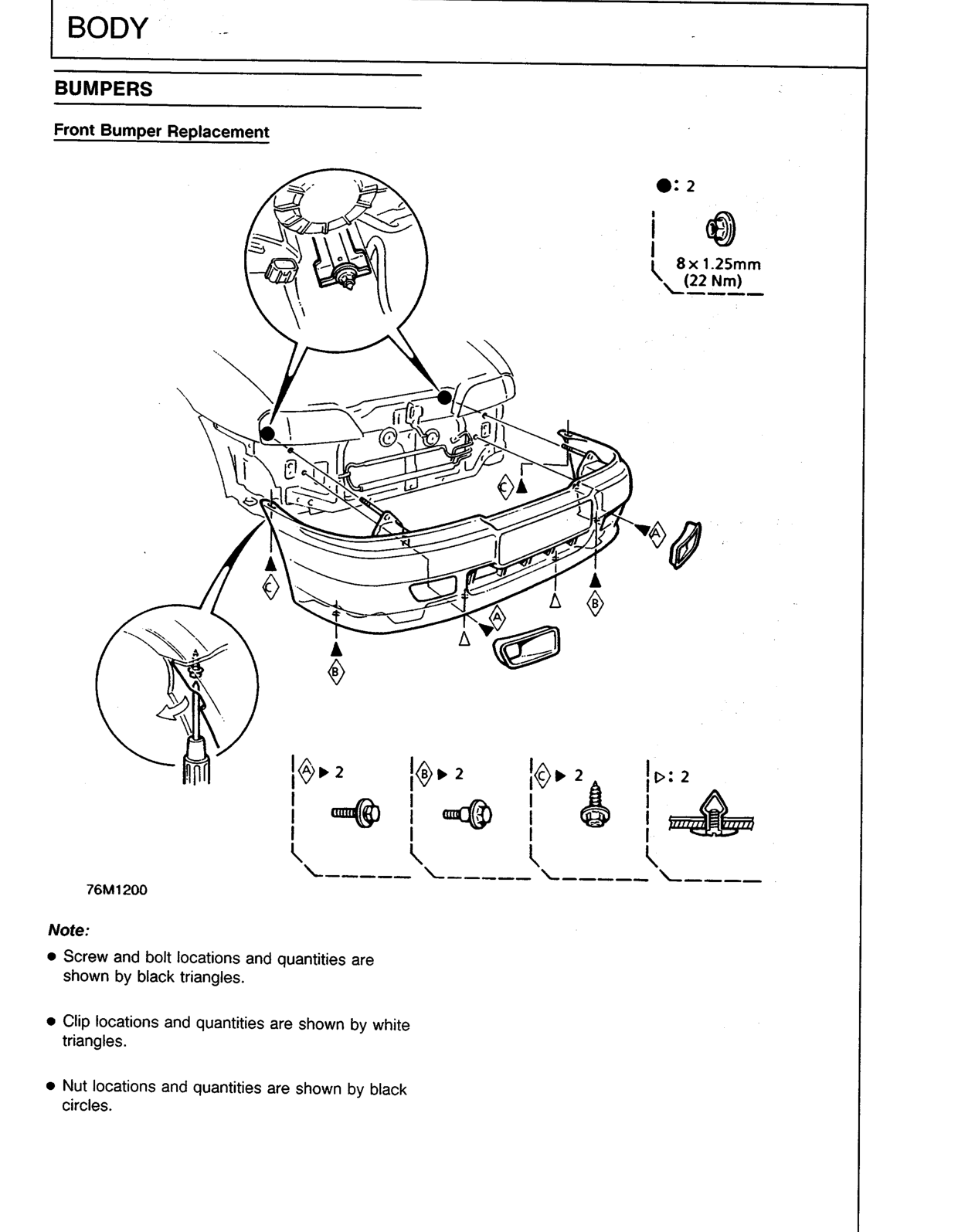

Original page
