Workshop Manuals Factory service & repair Rover
Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Adhesive tape residue removal

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Exterior fittings › Adhesive tape residue removal
BodyAdhesive tape residue removal · page 1 of 2

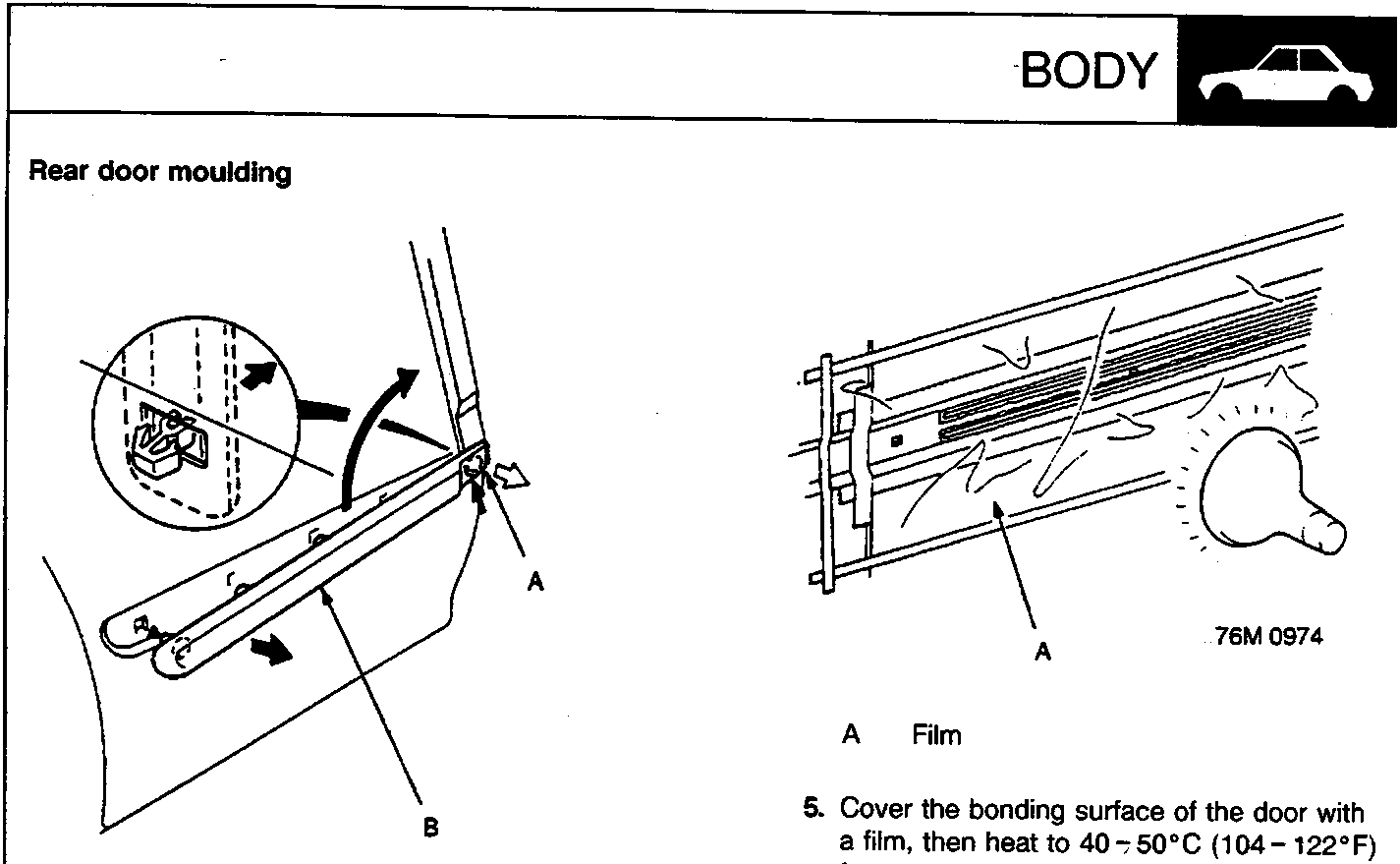

Diagram showing rear door moulding removal with callouts A (Front clip) and B (Rear door moulding), figure number 76M 0972
Diagram showing heating of bonding surface with film, callout A (Film), figure number 76M 0974

A Front clip A

B Rear door moulding

Remove the front clip A by turning it 90°.

Adhesive tape residue removal

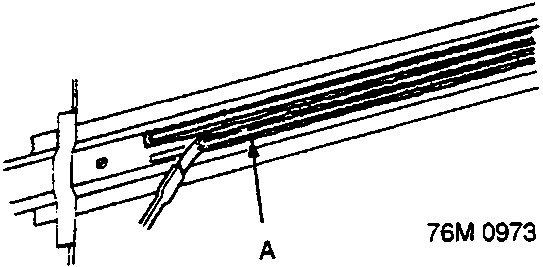

Diagram showing stripe remover tool applying substance to bonding surface, callout A (Stripe remover), figure number 76M 0973

A Stripe remover

  1. Apply the stripe remover evenly to the bonding surface of the door.
  2. Cover the bonding surface of the door with a film, then heat to 40 ÷ 50°C (104 ÷ 122°F) for 5 ÷ 10 minutes with a infrared dryer.

Note: Use care when heating to prevent deformation of the door.

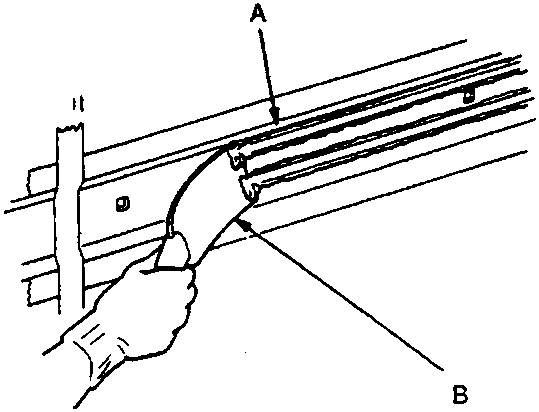

Diagram showing scraping adhesive tape with putty knife, callouts A (Adhesive tape) and B (Putty knife), figure number 76M 0975

A Adhesive tape

B Putty knife

  1. Scrape the adhesive tape with a putty knife.
  2. For removal of adhesive tape residue, follow - up with stripe adhesive remover, then scrape the adhesive tape with a putty knife.
