Exterior fittings › Replacement/Adjustment
BodyReplacement/Adjustment

Replacement/Adjustment

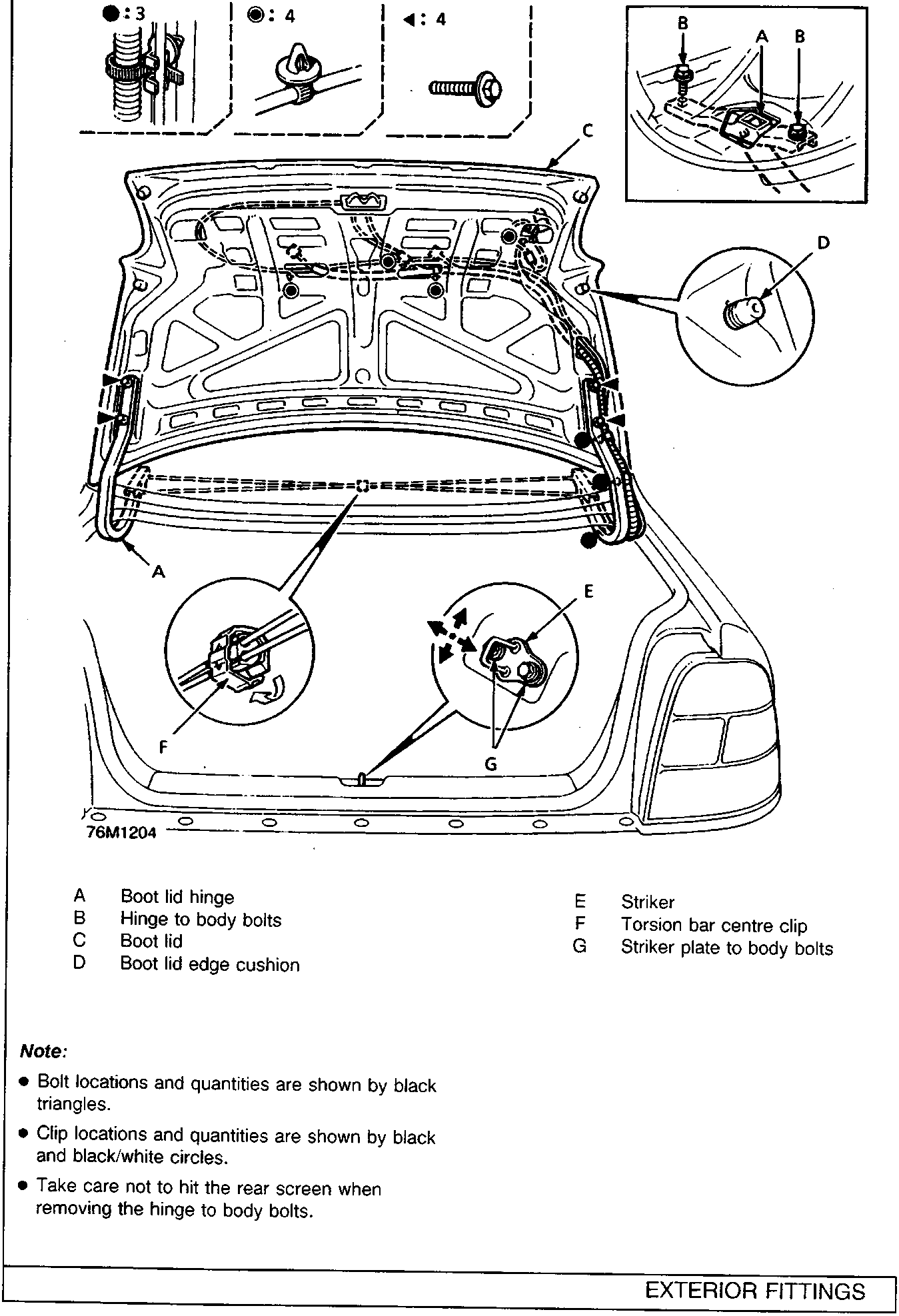

Diagram of boot lid showing hinge, striker, and fastener locations with callout letters A through G. Includes inset details for bolts, clips, and the torsion bar centre clip. Figure number 76M1204.
  • A Boot lid hinge
  • B Hinge to body bolts
  • C Boot lid
  • D Boot lid edge cushion
  • E Striker
  • F Torsion bar centre clip
  • G Striker plate to body bolts

Note:

  • Bolt locations and quantities are shown by black triangles.
  • Clip locations and quantities are shown by black and black/white circles.
  • Take care not to hit the rear screen when removing the hinge to body bolts.
