Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Replacement

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Exterior fittings › Replacement
BodyReplacement

Replacement

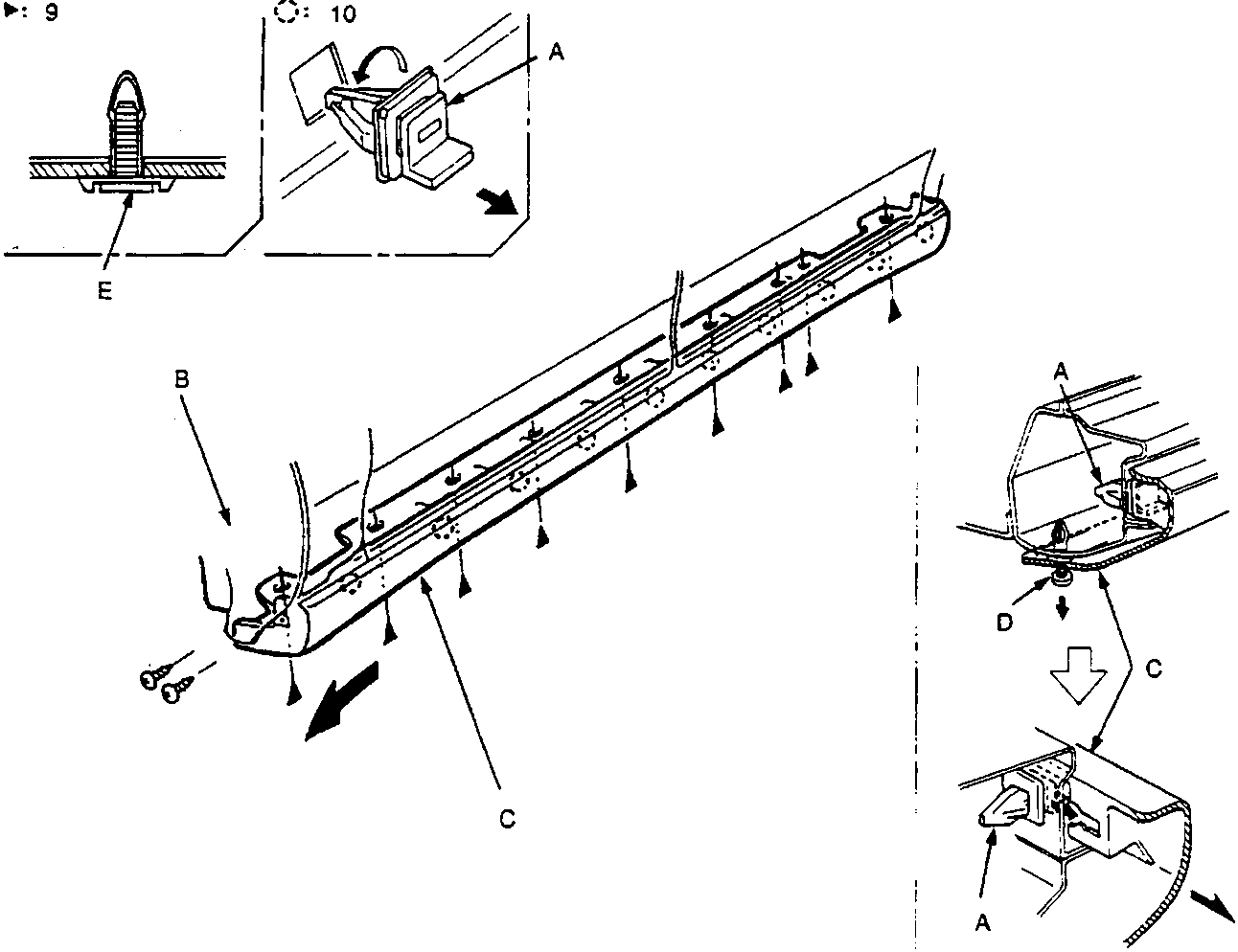

Diagram showing side sill panel, inner bumper, side clips, lower clips, and clip removal at position E

76M 0967

  1. A Side clip
  2. B Inner bumper
  3. C Side sill panel
  4. D Lower clip
  • Clip locations and quantities are shown by black triangles and dotted circles.

Note: Loosen the screw, then remove the lower clip using a clip remover at position 'E'.

  1. Remove the side clips from the body by turning them 45°.
  2. Remove the lower clips, then remove the side sill panel by sliding it forward.

Note: When removing the side sill panel, the side clips will stay in the body.

  1. To install the side sill panel, remove the side clips from the body, install them on the side sill panel, then install the side sill panel on the car.

Note:

  • Take care not to twist the side sill panel.
  • If necessary, replace any damaged side and lower clips.
