Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Replacement

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Exterior fittings › Replacement
BodyReplacement

Replacement

Boot lid latch removal

▲: 3

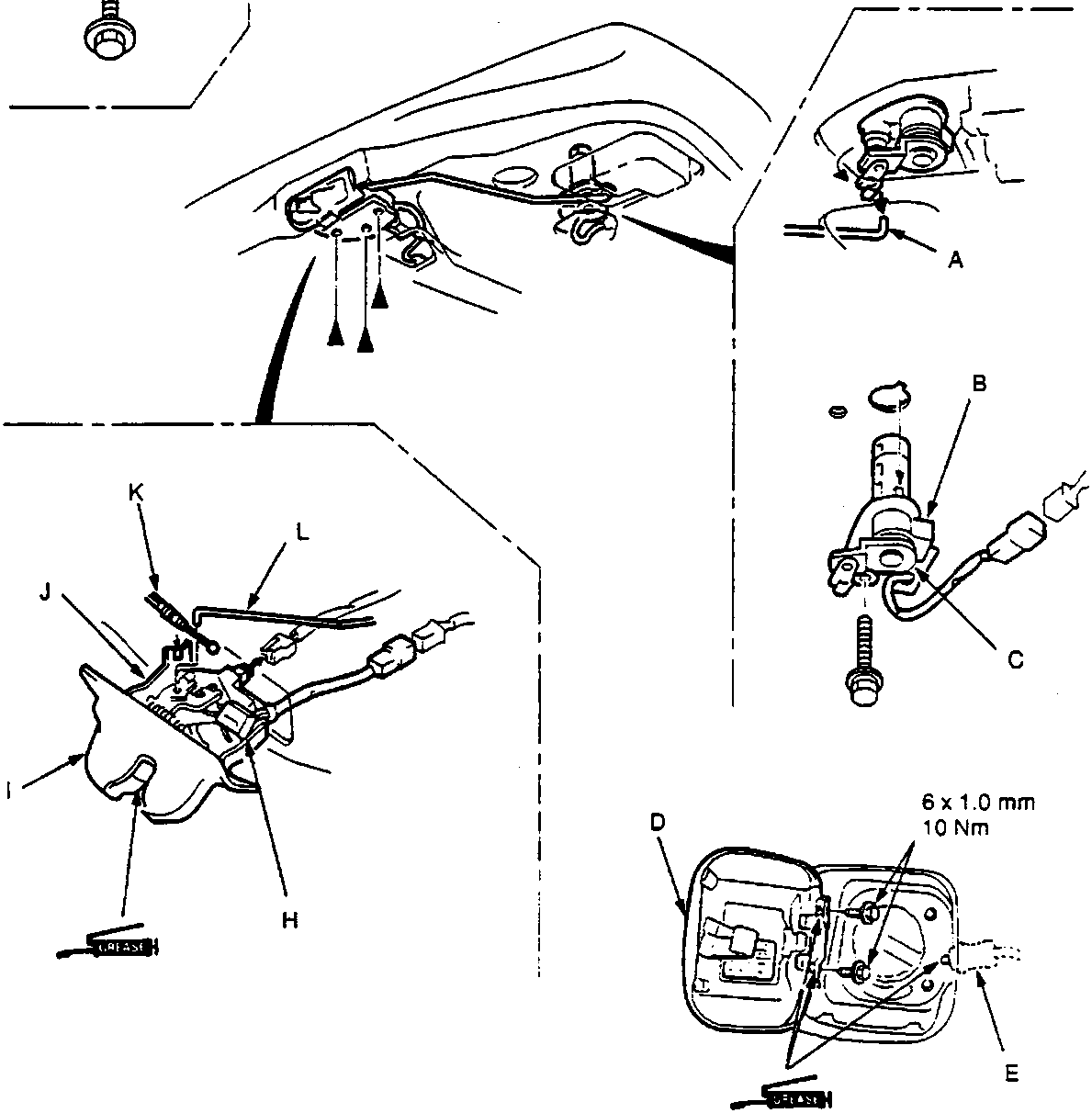

Diagram of boot lid latch and fuel lid latch assembly showing components A through L, including cylinder rods, switches, latches, covers, and opener cables. Torque specification 6 x 1.0 mm 10 Nm is indicated for the fuel lid.
Close-up diagram of the fuel lid latch (G) and fuel lid opener cable (F) showing the connection point and rotation direction.
ACylinder rodGFuel lid latch
BSecurity cylinder switchHSecurity latch switch
CLock cylinderILatch cover
DFuel lidJBoot lid latch
EFuel lid latchKBoot lid opener cable
FFuel lid opener cableLCylinder rod
