Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition16 · Body
16 · Body & interior

Removal (page 3 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Exterior fittings
BodyRemoval · page 3 of 3
  1. Trim off sealer with a sharp knife and level off sealer around the entire windscreen aperture flange.

Note: Do not scrape down to the painted surface of the body, damaged paint will lead to improper bonding.

  1. Remove loose sealer, clean bonding surface with spirit wipe.
  1. Prime any bare metal areas with etch primer, masking off any surrounding surfaces before painting.
  1. If the old windscreen is to be reinstalled, trim the sealer from the glass with a suitable tool i.e, a putty knife.

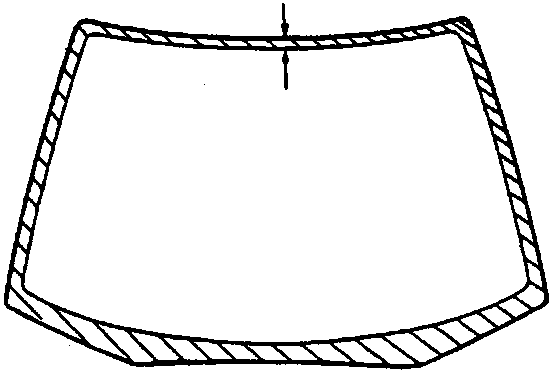

Diagram of a windscreen showing the shaded area along the perimeter edges where sealer is applied.

Clean the shaded area. 76M1051

CAUTION: Do not damage the black ceramic edging. Avoid setting the glass down on its edges, small chips may develop into cracks.
