Installation (page 2 of 4)

6. Shake the primer tins from the repair kit for about 30 seconds.

76M1055

Note: Do not get the glass and body primer applicators mixed up.

Do not apply body primer to windscreen.

Never touch the primed surfaces with your hands.

Keep water, dust and abrasive materials away from primed surfaces.

Wipe off any spillage immediately.

Mask off the dashboard before priming the body flange.

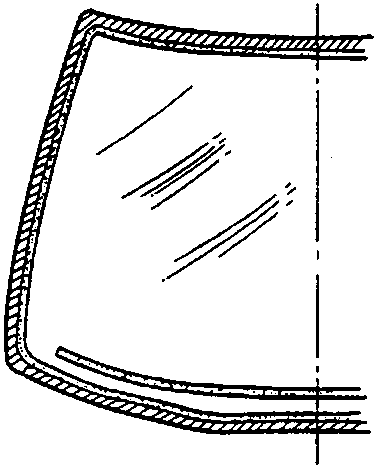

7. Apply glass primer to the shaded area around the windscreen perimeter as shown, with the cotton bud applicator provided.
9. When the primer is dry, wipe primed surfaces with a clean lint free cloth
10. Pierce adhesive cartridge in the centre of the threaded end and fit the pre – cut nozzle to cartridge. Shake out the crystals from under the lid of the cartridge base.

76M1056

76M1057

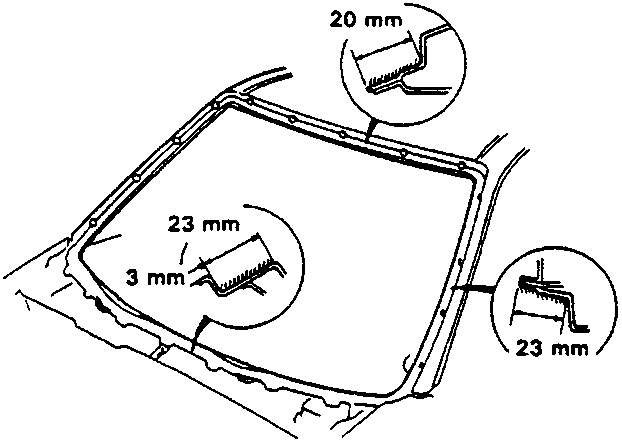

8. Apply body primer to the shaded area of the body flange as shown, with the cotton bud applicator provided ensuring spacing blocks are well primed.

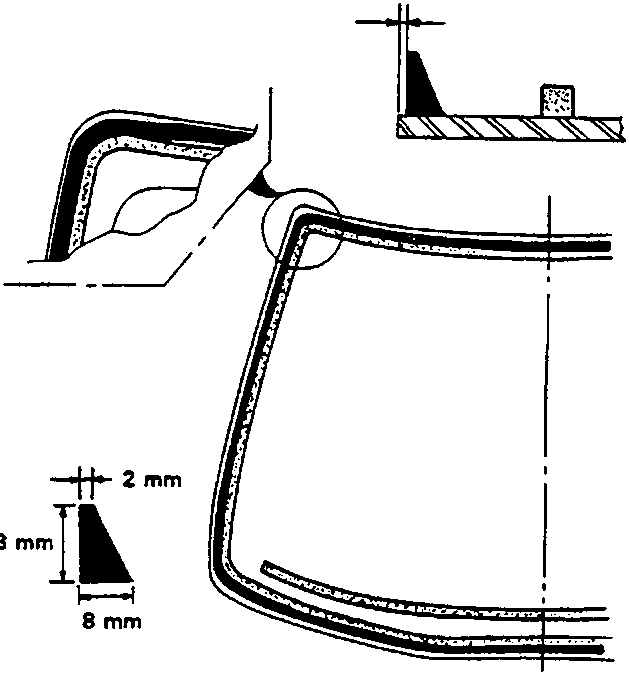

11. Apply a smooth continuous bead of adhesive to the windscreen as shown. Make a slightly thicker bead at each corner.

Note: Apply the adhesive within 30 minutes of applying the glass primer.
