16 · Body & interior

Component Removal/Installation (page 2 of 3)

Make: Rover
Model: 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section: Interior fittings

‹ Prev Component Removal/Installation Next ›

BodyComponent Removal/Installation · page 2 of 3

Component Removal/Installation (page 2 of 3) – diagram from the Body chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

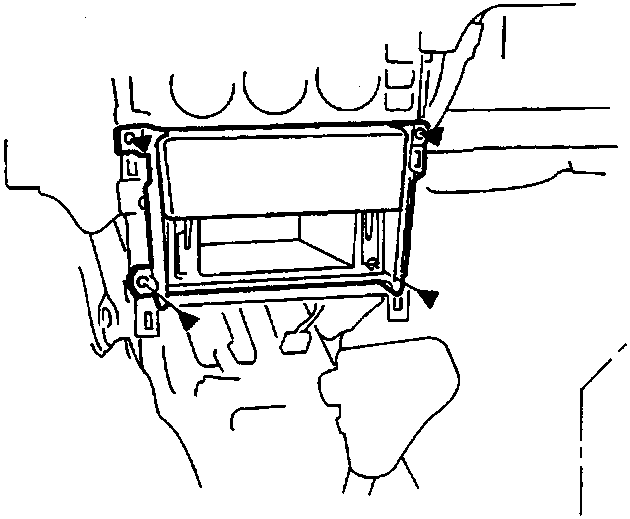

Diagram showing the radio panel assembly location within the dashboard, with black triangles indicating screw positions.

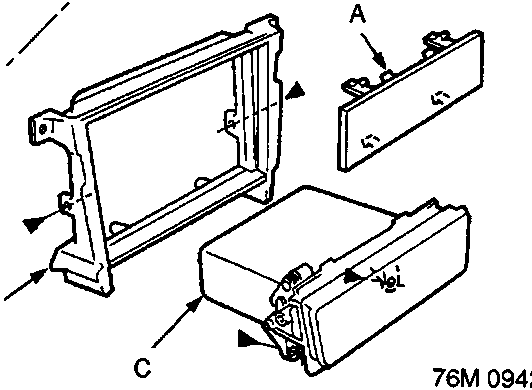

Exploded diagram of the radio panel assembly showing the lid (A), radio panel frame (B), and console pocket (C). A separate detail shows a screw with quantity 8.

A Lid
B Radio panel
C Console pocket

Screw locations and quantities are shown by black triangles.

Remove the front console.
Remove the screws.
