EXHAUST MANIFOLD GASKET – K16

Service Repair No. 30.15.12

Remove

  1. Remove air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs.
  2. Remove alternator, see ELECTRICAL – Repairs.

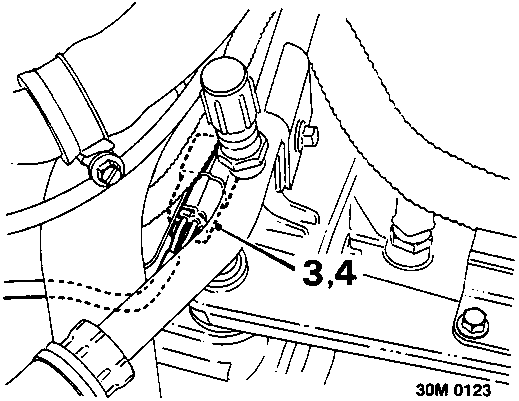

Diagram showing oxygen sensor multiplug and bracket connection points labeled 3,4
  1. Release oxygen sensor multiplug from bracket.
  2. Disconnect multiplug from oxygen sensor.
  3. Remove front pipe and flange gasket.

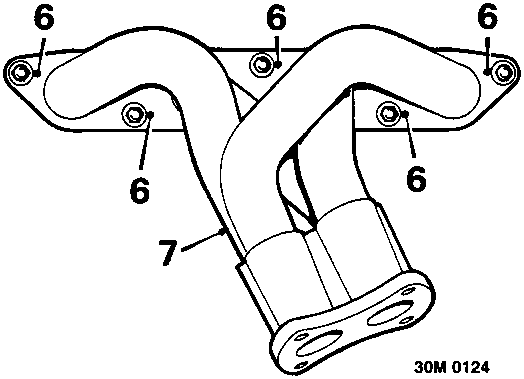

Diagram of exhaust manifold with five nuts labeled 6 securing it to the cylinder head and a component labeled 7
  1. Remove 5 nuts securing exhaust manifold to cylinder head.
  2. Remove exhaust manifold, discard gasket.

Refit

  1. Ensure mating faces of exhaust manifold and cylinder head are clean.
  2. Position a new gasket to cylinder head studs.

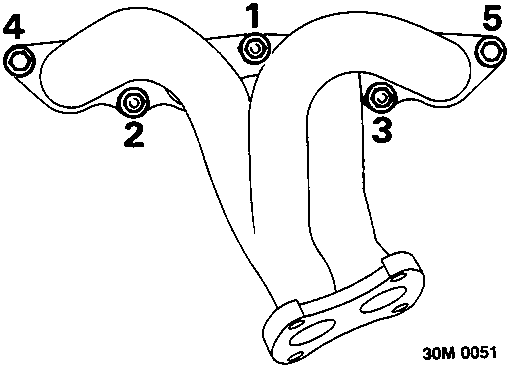

Diagram of exhaust manifold showing tightening sequence numbers 1 through 5
  1. Fit exhaust manifold, fit securing nuts and tighten in the sequence shown to 45 Nm.
  2. Fit front pipe and flange gasket.
  3. Connect oxygen sensor multiplug.
  4. Secure multiplug to bracket.
  5. Fit alternator, see ELECTRICAL – Repairs.
  6. Fit air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – Repairs.
