Manifold and exhaustIntermediate pipe – 2.0
  1. Tighten front pipe nuts to 34 Nm.

INTERMEDIATE PIPE – 2.0

Service Repair No. 30.10.11

Remove

  1. Raise vehicle on a ramp.

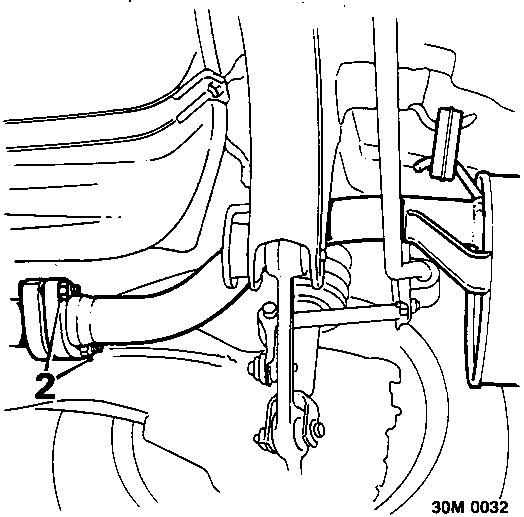

Diagram of intermediate pipe mounting on naturally aspirated model, callout 2 pointing to tail pipe connection.

Naturally aspirated model illustrated.

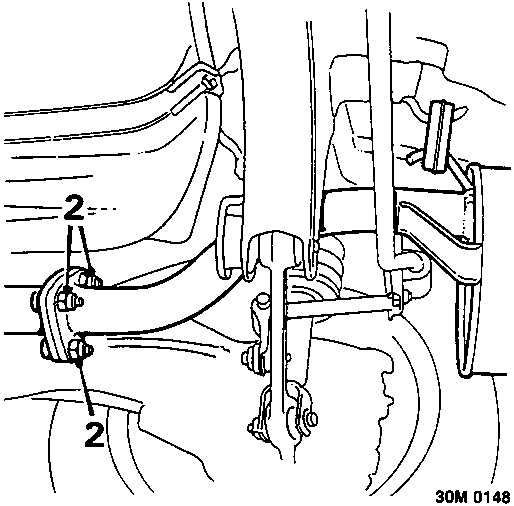

Diagram of intermediate pipe mounting on turbo model, callouts 2 pointing to tail pipe and mounting rubber connections.

Turbo model illustrated.

  1. Remove nuts securing intermediate pipe to tail pipe.

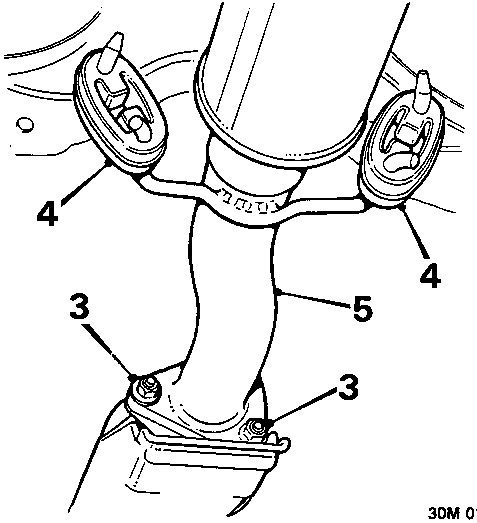

Diagram of intermediate pipe connected to catalytic converter and tail pipe, callouts 3, 4, and 5 indicating nuts, flange bolts, and mounting rubbers.
  1. Remove 3 nuts securing intermediate pipe to catalytic converter.
  2. Release 2 mounting rubbers.
  3. Release intermediate pipe from tail pipe and catalytic converter; discard gasket.

Refit

  1. Clean mating faces of intermediate pipe, tail pipe and catalytic converter.
  2. Check mounting rubbers for condition, renew if damaged.
  3. Position intermediate pipe, secure mounting rubbers.
  4. Align intermediate pipe to catalytic converter, use a new gasket and fit but do not tighten nuts.
  5. Align intermediate pipe to tail pipe fit nuts and tighten to 15 Nm.
  6. Tighten intermediate pipe to catalytic converter nuts to 34 Nm.
