Manifold and exhaustTail pipe – 2.0

TAIL PIPE – 2.0

Service Repair No. 30.10.22

Remove

  1. Raise vehicle on a ramp.

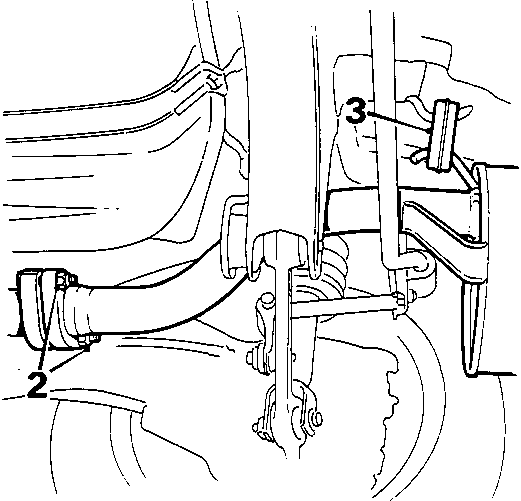

Diagram showing tail pipe and silencer mounting on naturally aspirated model with callout numbers 2 and 3

Naturally aspirated model illustrated.

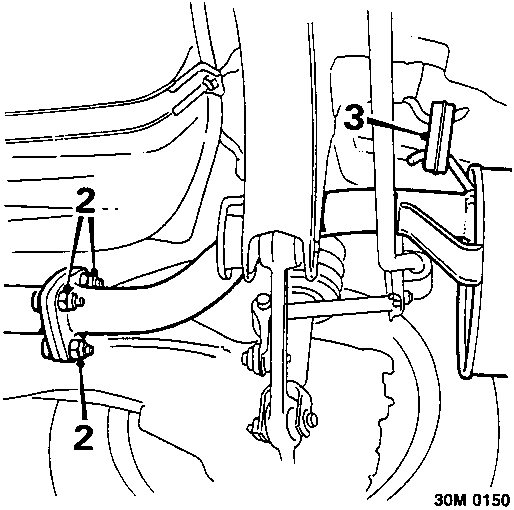

Diagram showing tail pipe and silencer mounting on turbo model with callout numbers 2 and 3

Turbo model illustrated.

  1. Remove nuts securing tail pipe to intermediate pipe.
  2. Release 2 mounting rubbers securing front of silencer.

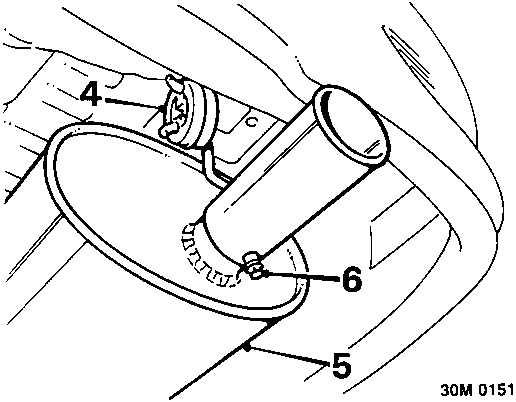

Diagram showing rear of silencer and tail pipe finisher with callout numbers 4, 5, and 6
  1. Release mounting rubber securing rear of silencer.
  2. Remove tail pipe and silencer.

Do not carry out further dismantling if component is removed for access only

  1. Remove bolt securing tail pipe finisher to tail pipe; remove finisher.

Refit

  1. Position tail pipe finisher on tail pipe; fit and tighten bolt to 10 Nm.
  2. Clean mating faces of tail pipe and intermediate pipe.
  3. Check mounting rubbers for condition; renew if damaged.
  4. Position tail pipe to intermediate pipe; secure mounting rubbers.
  5. Fit tail pipe to intermediate pipe securing nuts and tighten to 15 Nm.
  6. Lower ramp.

INLET MANIFOLD GASKET – K8

Service Repair No. 30.15.08

Remove

  1. Remove air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – SPi – Repairs.
  2. Drain cooling system, see MAINTENANCE.
