Manifold and exhaust- K16

- K16

Service Repair No. 30.15.02

Remove

  1. Disconnect battery earth lead.
Vertical refrigerator door panel with horizontal hinge line

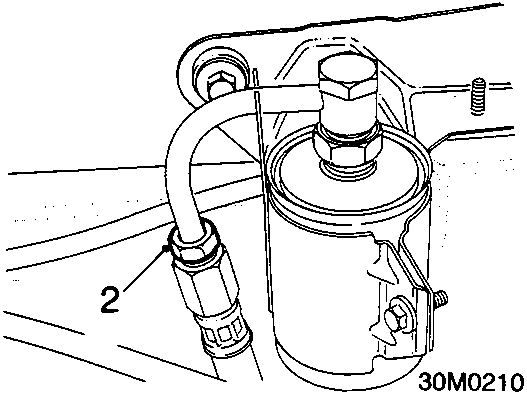

Diagram showing the fuel filter and union labeled with callout number 2
  1. Position absorbent cloth around union, slacken union to relieve fuel pressure.
  2. Tighten union.
  3. Drain cooling system, see MAINTENANCE.

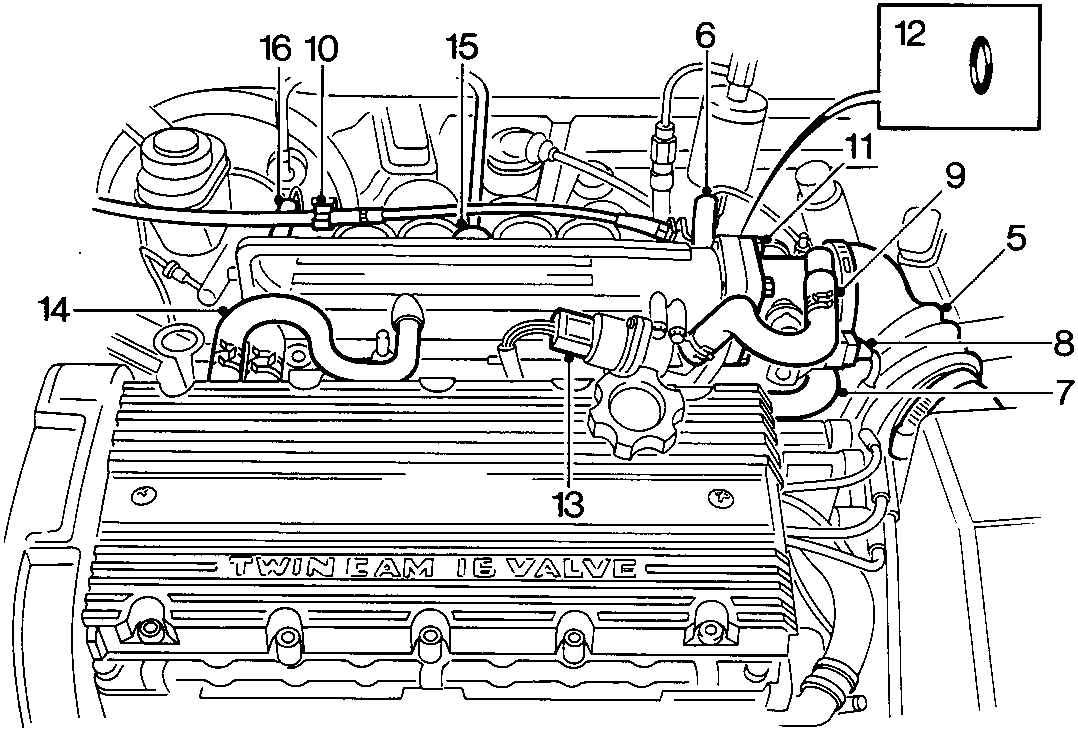

Engine diagram showing inlet manifold area with callout numbers 5 through 16
  1. Slacken clip, disconnect air hose from air cleaner.
  2. Release clip, disconnect purge hose from inlet manifold.
  3. Release clip, disconnect breather hose from throttle housing.
  4. Disconnect multiplug from throttle potentiometer.
  5. Release clip, disconnect hose from stepper motor abutment.
  6. Release throttle cable from clip.
  7. Remove 4 bolts securing throttle housing to inlet manifold, remove housing and place aside.
  8. Remove and discard 'O' ring.
  9. Disconnect multiplug from stepper motor.
