PANEL REPAIRS

REPAIRS 77-2-27

Repair

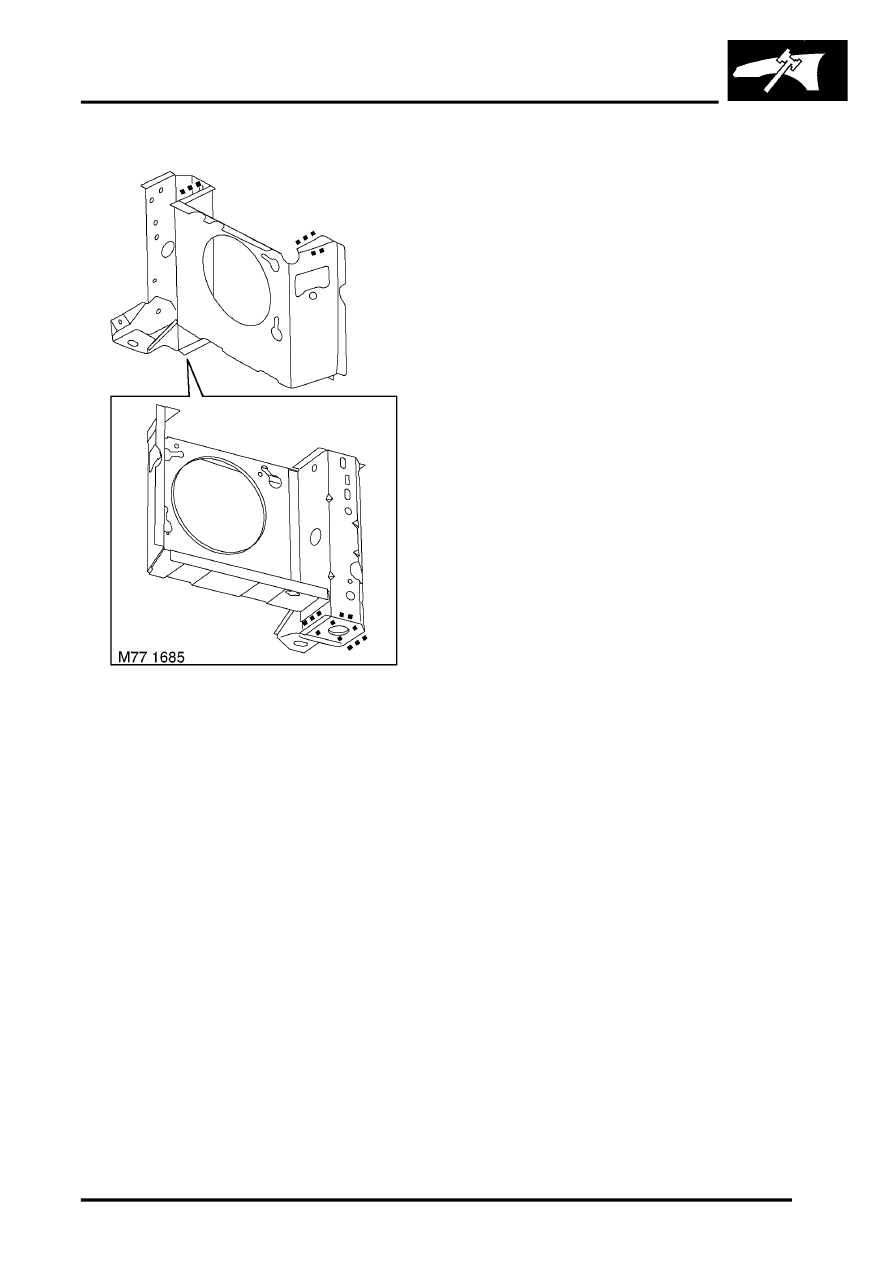

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Fit centre brace.
2. Fit 2 bolts securing bulkhead to chassis and

tighten bolts to 45 Nm (33 lbf.ft).

3. Fit bonnet release cable.
4. Fit crush can.
5. Models with A/C: Fit A/C pipes.
6. Fit 2 earth leads to LH of front bulkhead.
7. Fit air filter assembly.



 +

 ENGINE MANAGEMENT SYSTEM -

Td5, REPAIRS, Air filter assembly.


 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Air cleaner assembly.

8. Fit battery tray.
9. Fit headlamp wiring and headlamp levelling

motors.

10. Fit repeater lamp.



 +

 LIGHTING, REPAIRS, Lamp - front

repeater - up to 03MY.

11. Fit headlamp.



 +

 LIGHTING, REPAIRS, Headlamp - up

to 03MY.

12. Diesel models: Fit gearbox fluid cooler.
13. Models with A/C: Fit condensor.



 +

 AIR CONDITIONING, REPAIRS,

Condenser.

14. Fit washer reservoir.



 +

 WIPERS AND WASHERS, REPAIRS,

Reservoir - washer - up to 03MY.

15. Connect leads/multiplug to alternator.
16. Connect battery leads, negative lead last.
