Discovery II
PANEL REPAIRS
77-2-42 REPAIRS
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance

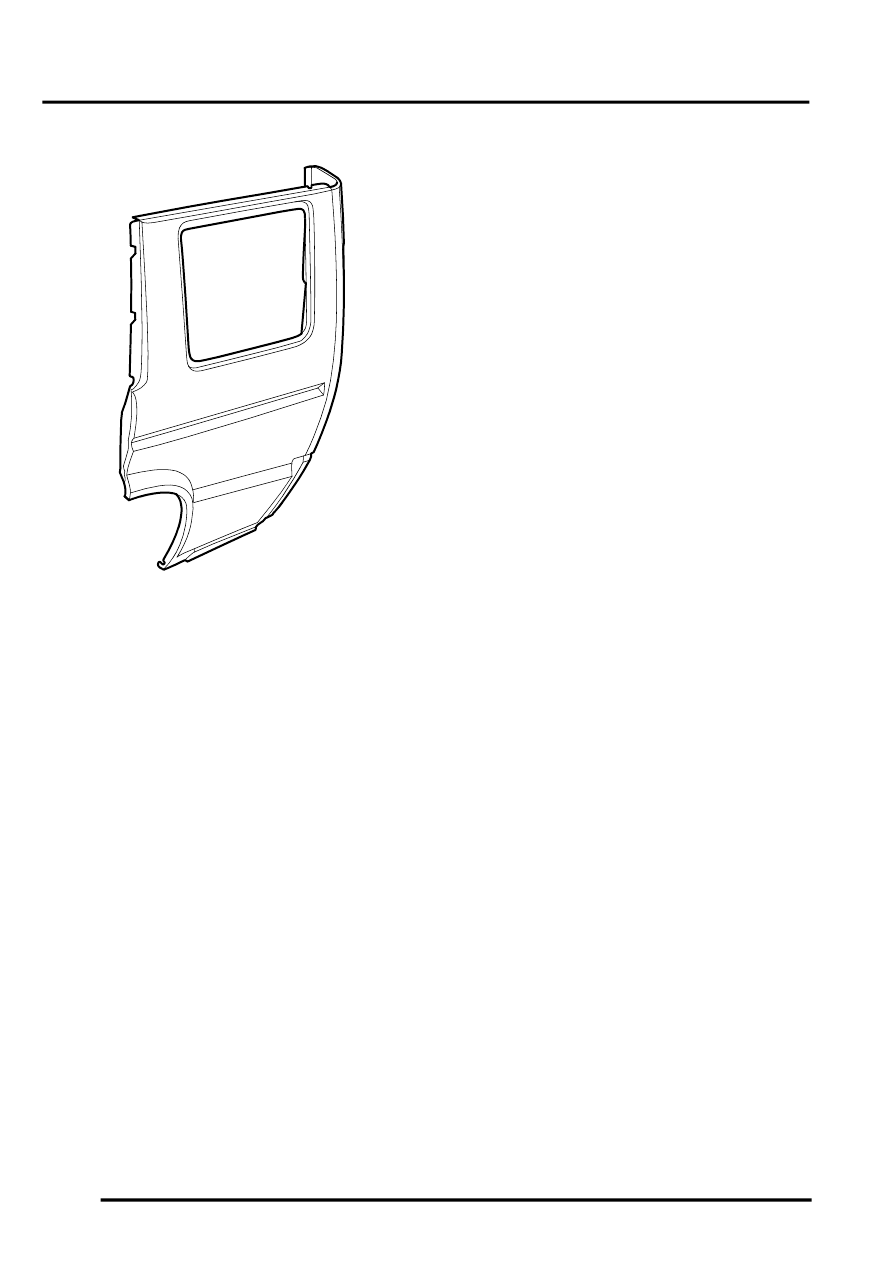

with Panel Replacement Procedure. The panel
body side assembly does not require any
welding, as it is bolted into position.
Refit
1. Position and secure wiring.
2. Fit aerial amplifier.
3. RH side: Fit fuel filler tube.
4. RH side: Fit fuel filler flap.
5. Fit tail lamp.
LIGHTING, REPAIRS, Lamp - tail.
6. Fit tail door aperture seal.
7. Fit loadspace carpet retainer.
8. Fit tail door tread plate.
9. LH side: Fit tail door striker and setting block to
'E' post, fit Torx bolts and tighten to 26 Nm (19
lbf.ft).
10. RH side: Fit tail door.
11. Fit side drip rail finisher.
12. Fit wheel arch trim finisher.
13. Fit 'D' post outer trim finisher.
14. Fit rear door striker.
15. Fit rear door aperture seal.
16. Fit tread plate to rear door aperture.
17. Fit mud flap.
18. Fit rear wheel arch liner.
19. Fit rear bumper finisher.
20. Fit rear bumper assembly.
Bumper assembly - rear - up to 03MY.
21. Fit body side rear glass.
SCREENS, REPAIRS, Glass - body
22. Fit rear head rests, if fitted.
23. Fit head lining rear trim finisher.
24. Fit loadspace side trim casing.
REPAIRS, Trim casing - side - loadspace.
25. Connect leads/multiplug to alternator.
26. Connect battery leads, negative lead last.
M77 0000
