Valance upper assembly - LH
In this procedure, the front wing, the valance outer
reinforcement and the bonnet alarm switch mounting
bracket are replaced in conjunction with the LH
valance upper assembly.
Remove
1. Disconnect both battery leads, negative lead
first.
2. Disconnect leads/multiplug from alternator.
3. Remove front wing.
4. Remove air filter assembly.
V8, REPAIRS, Air cleaner assembly.
Td5, REPAIRS, Air filter assembly.
5. Remove PAS/ACE reservoir.
6. Remove ABS modulator.
BRAKES, REPAIRS, Modulator unit
7. Remove brake pipes from valance.
8. Release harness from valance and position
aside.
9. Models with A/C: Depressurise A/C system
and remove pipes from valance.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.
Repair

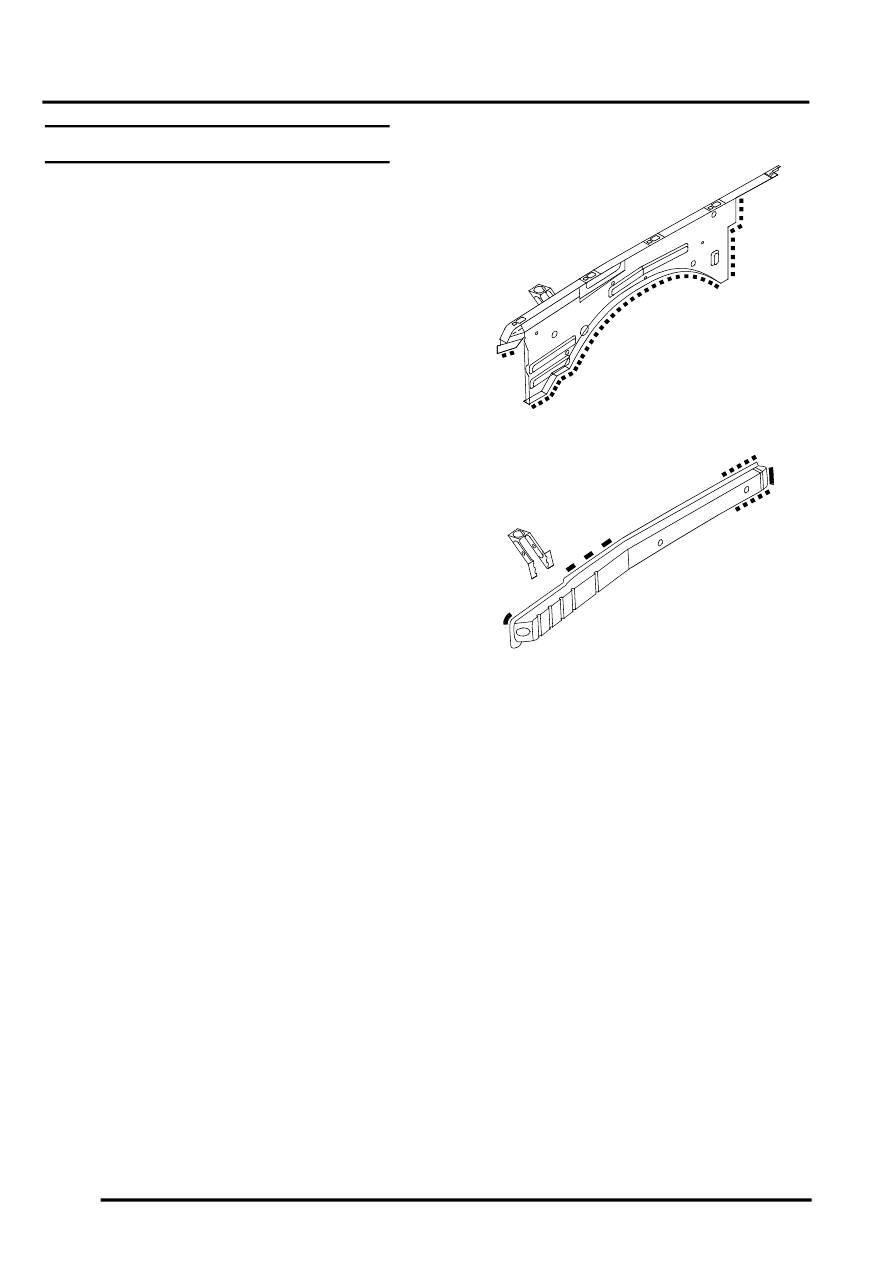

1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
M77 1743
M77 1690A
