PANEL REPAIRS

77-2-32 REPAIRS

Valance upper assembly (front section) -
RH

In this procedure, the front wing and the valance
outer reinforcement (front section) are replaced in
conjunction with the RH valance upper assembly
(front section).

Remove

1. Disconnect both battery leads, negative lead

first.

2. Disconnect leads/multiplug from alternator.
3. Remove front wing.

 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front - up to 03MY.


 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front - from 03MY.

4. Remove battery.

 +

 CHARGING AND STARTING,

REPAIRS, Battery.

5. Remove battery tray.
6. Remove fuse box.
7. Release expansion tank from fixings and

position aside.

8. Release harness from valance and position

aside.

Repair

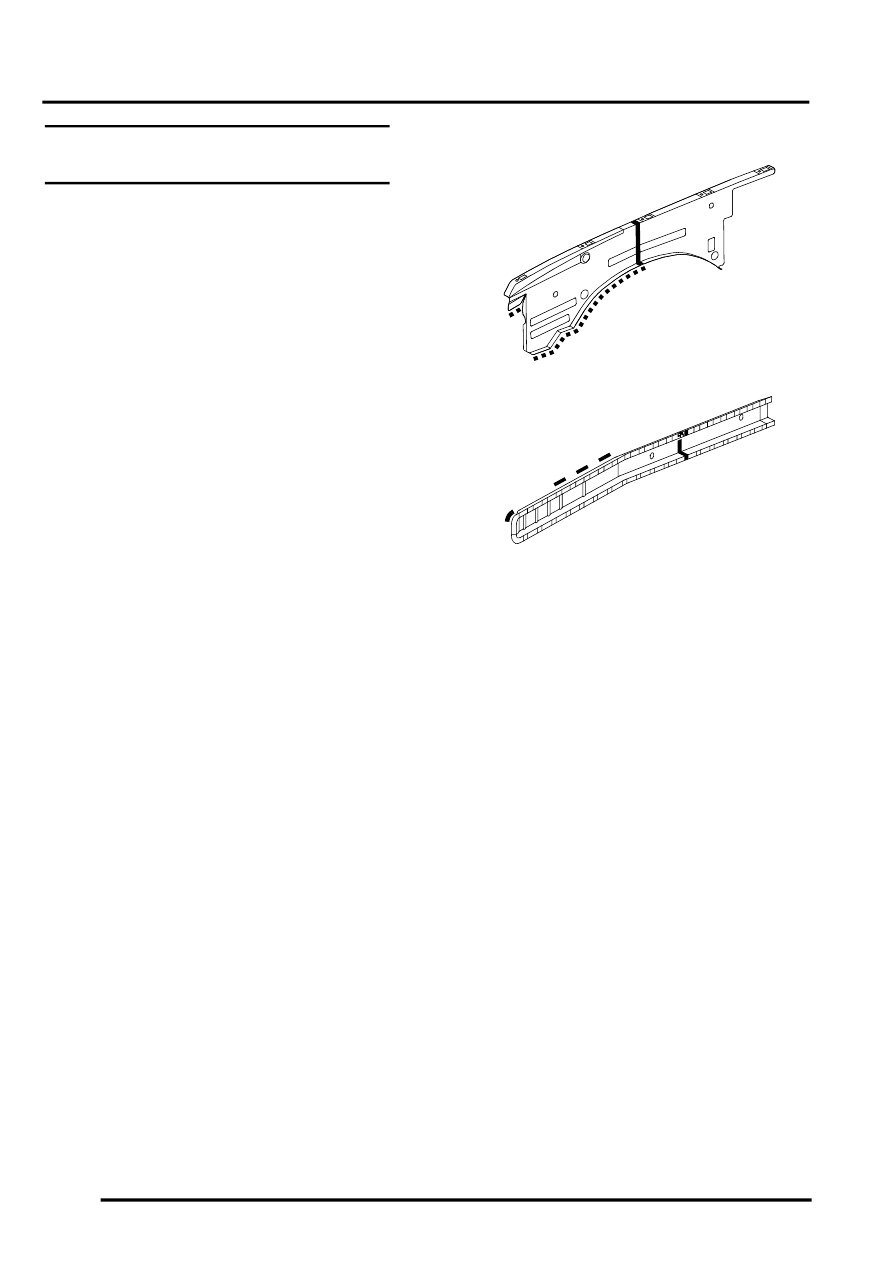

1. Remove existing panel(s), prepare panel joint

faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.

Refit

1. Fit harness to valance.
2. Fit and secure expansion tank to fixings.
3. Fit fuse box.
4. Fit battery tray.
5. Fit battery.

 +

 CHARGING AND STARTING,

REPAIRS, Battery.

6. Fit front wing.

 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front - up to 03MY.


 +

 EXTERIOR FITTINGS, REPAIRS,

Wing - front - from 03MY.

7. Connect leads/multiplug to alternator.
8. Connect battery leads, negative lead last.

M77 1693A

M77 1749
