Discovery II
PANEL REPAIRS
77-2-50 REPAIRS
Cross member rear assembly
In this procedure, the cross member outer rear panel,
cross member closing rear panel, 'E' post assembly
and the panel body side assembly are replaced in
conjunction with the cross member rear assembly.
Remove
1. Disconnect both battery leads, negative lead
first.
2. Disconnect leads/multiplug from alternator.
3. Remove cross member closing rear panel.
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as

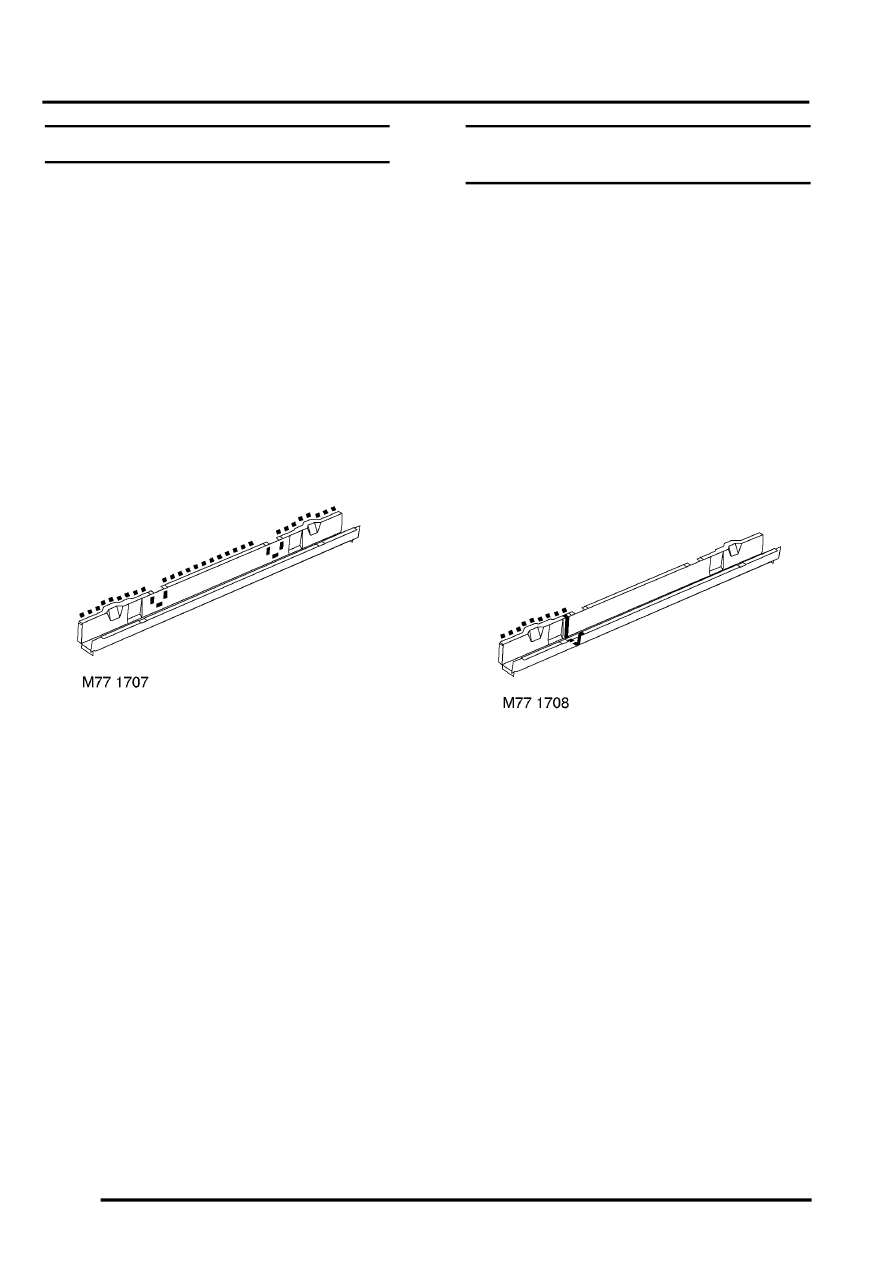

shown.
Refit
1. Fit cross member closing rear panel.
2. Connect leads/multiplug to alternator.
3. Connect battery leads, negative lead last.
Cross member rear assembly
RH/LH section)
In this procedure, the cross member outer rear panel,
cross member closing rear panel, 'E' post assembly
and the panel body side assembly are replaced in
conjunction with the cross member rear assembly.
Remove
1. Disconnect both battery leads, negative lead
first.
2. Disconnect leads/multiplug from alternator.
3. Remove cross member closing rear panel.
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
Refit
1. Fit cross member closing rear panel.
2. Connect leads/multiplug to alternator.
3. Connect battery leads, negative lead last.
