Discovery II
PANEL REPAIRS
77-2-44 REPAIRS
'D' post outer assembly
In this procedure, the panel body side assembly is
also replaced in conjunction with the 'D' post
assembly. The 'D' post inner closing panel can also
be replaced in this procedure, if required.
Remove
1. Disconnect both battery leads, negative lead
first.
2. Disconnect leads/multiplug from alternator.
3. Remove panel body side assembly.
4. Remove RH or LH sill finisher.
5. Remove front seat.
6. RH side: Remove power amplifier.
7. LH side: Remove CD autochanger.
8. Remove 'B/C' post lower trim casing.
REPAIRS, Trim casing - lower - 'B' post.
9. Remove rear seat.
10. Remove loadspace carpet.
11. Release carpet for access to 'D' post assembly
and position aside.
12. Remove relevant wiring.
Repair

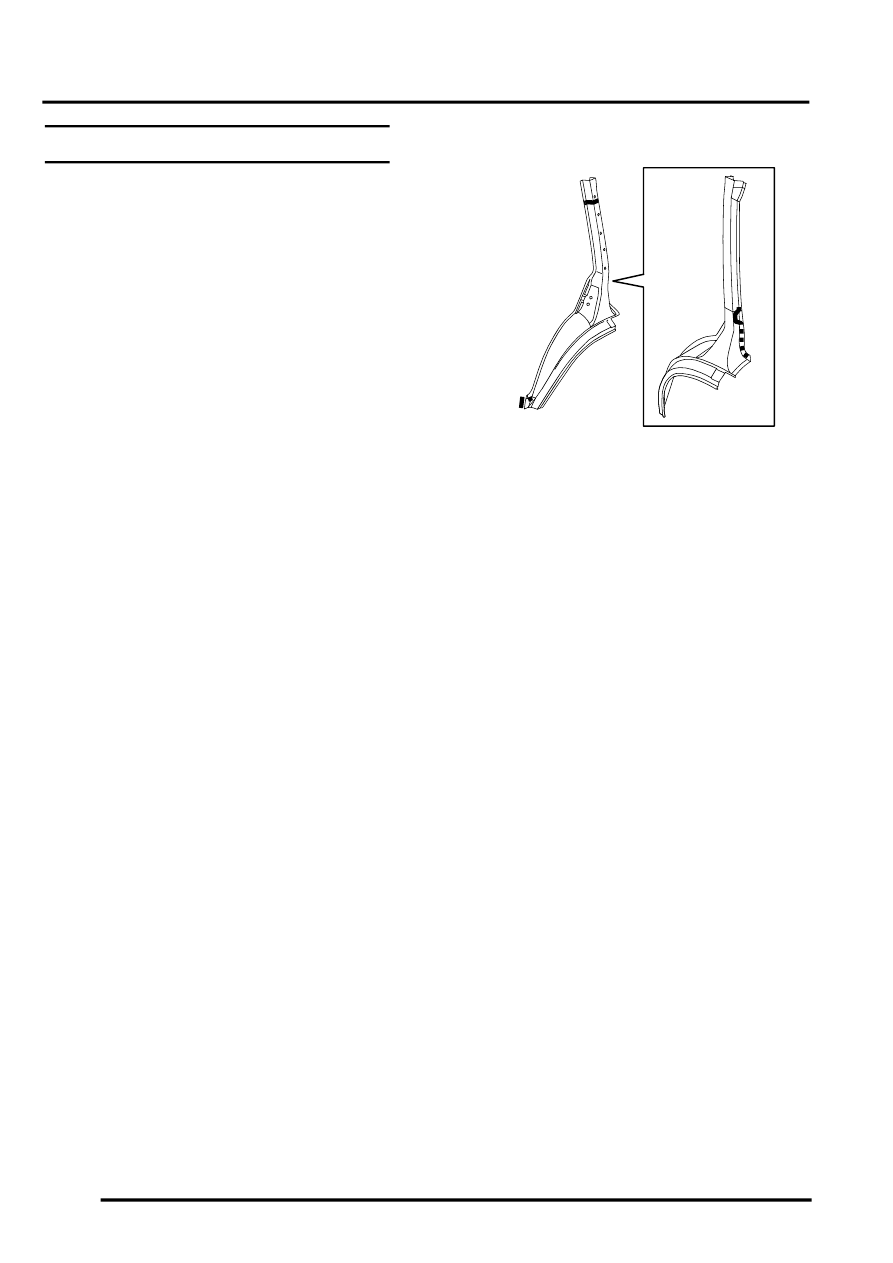

1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance
with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
Refit
1. Fit and secure wiring.
2. Position and secure carpet into position.
3. Fit loadspace carpet.
4. Fit rear seat.
5. Fit 'B/C' post lower trim casing.
REPAIRS, Trim casing - lower - 'B' post.
6. LH side: Fit CD autochanger.
7. RH side: Fit power amplifier.
8. Fit front seat.
9. Fit RH or LH sill finisher.
10. Fit panel body side assembly.
11. Connect leads/multiplug to alternator.
12. Connect battery leads, negative lead last.
