COOLING SYSTEM - K SERIES KV6
REPAIRS
26-3-5
14. Release radiator from lower mountings and
remove from vehicle.

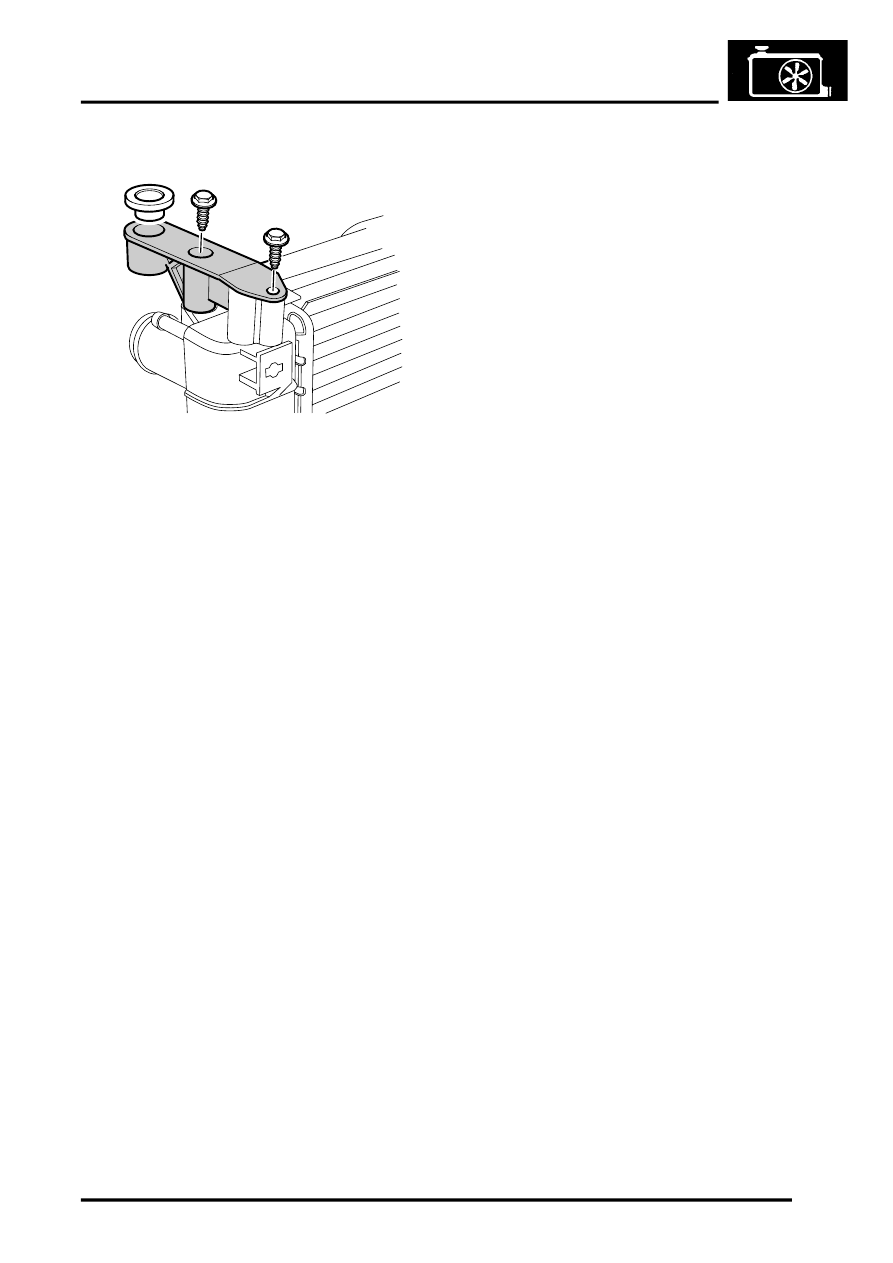

15. Remove radiator upper mounting extension
brackets.
16. Remove 4 rubber mountings from radiator.
Refit
1. Fit mounting rubbers to radiator.
2. Fit upper support brackets to radiator.
3. Position fan cowl to radiator, fit and tighten
bolts to 5 Nm (4 lbf.ft).
4. Secure fan cowl to radiator with clips.
5. Fit radiator and engage lower mountings in
chassis.
6. Fit radiator upper mountings to bonnet locking
platform.
7. If fitted:Position LH and RH radiator baffles,
secure with scrivets, fit and tighten top bolts to
5 Nm (4 lbf.ft).
8. Connect expansion tank hose and secure with
clip.
9. Connect bottom and top hoses to radiator
secure with clips.
10. Models with A/C: Fit A/C condenser.
11. Models without A/C: Position armature, fit and
tighten 4 nuts and bolts securing armature to
body.
Bumper - assembly - front - up to 04MY.
12. Models without A/C: Align PAS fluid cooler
and tighten bolts to 8 Nm (6 lbf.ft).
13. Models without A/C: Fit bumper valance.
Bumper - assembly - front - up to 04MY.
14. Refill cooling system.
COOLING SYSTEM - K SERIES KV6,
ADJUSTMENTS, Coolant - drain and refill.
15. Fit acoustic cover.
ENGINE - K SERIES KV6, REPAIRS,
16. Connect battery earth lead.
M26 0946
