Freelander Service Procedures
CORROSION PREVENTION AND SEALING
SEALING 77-4-15

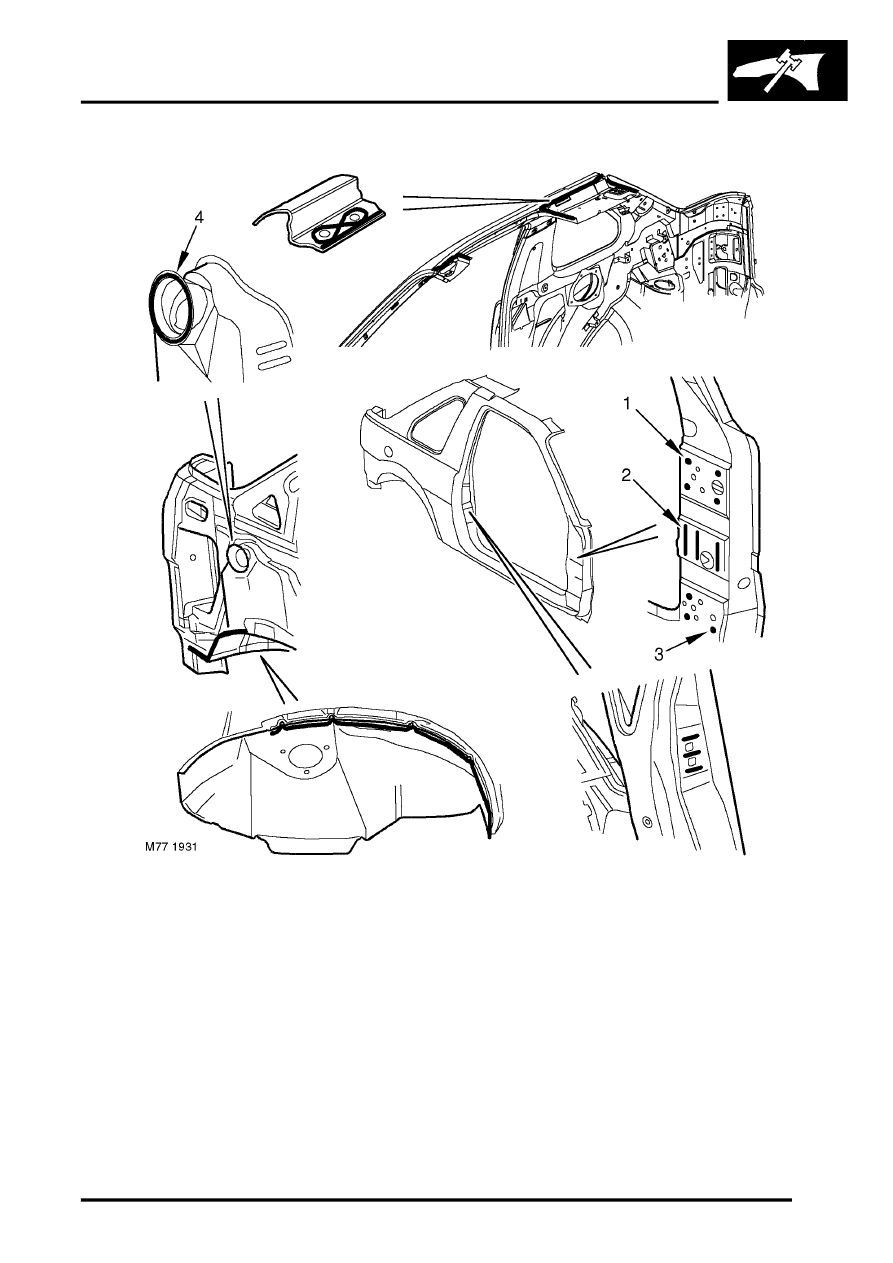

Adhesive on body side and roof - 3 door
Joints symmetrically opposite to those shown are also treated. Apply 3 mm diameter beads except where detailed
otherwise (below).
1 Apply 4 x 10 mm diameter spots
2 Apply 3 x 4 mm diameter beads
3 Apply 3 x 10 mm diameter spots
4 Apply 6 mm diameter bead (fuel resistant seam sealer)
