Freelander Service Procedures
CORROSION PREVENTION AND SEALING
77-4-16 SEALING

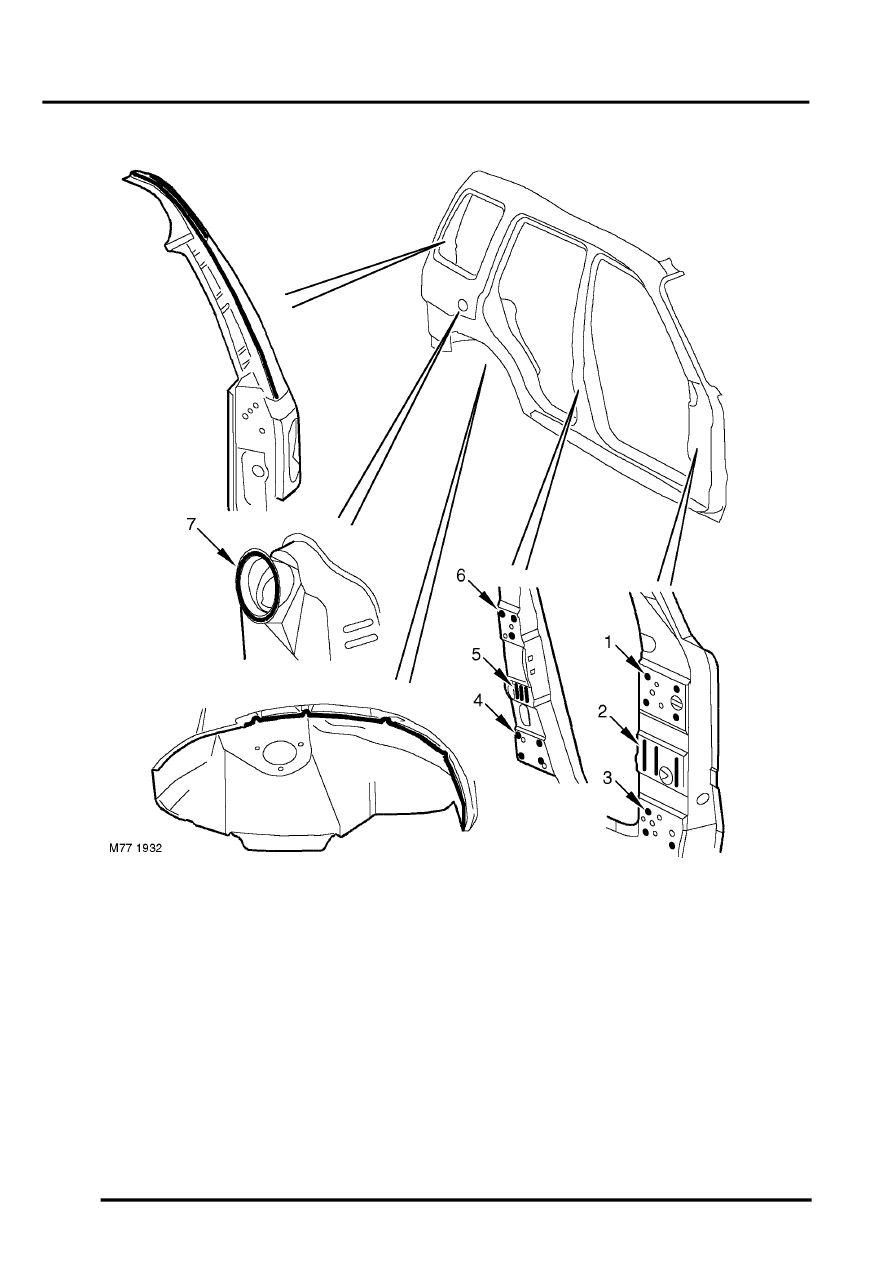

Adhesive on body side - 5 door
Joints symmetrically opposite to those shown are also treated. Apply 3 mm diameter beads except where detailed
otherwise (below).
1 Apply 4 x 10 mm diameter spots
2 Apply 3 x 4 mm diameter beads
3 Apply 3 x 10 mm diameter spots
4 Apply 4 x 10 mm diameter spots
5 Apply 3 x 4 mm diameter beads
6 Apply 3 x 10 mm diameter spots
7 Apply 6 mm diameter bead (fuel resistant seam sealer)
