Freelander Service Procedures
ENGINE - K SERIES KV6
OVERHAUL 12-3-103

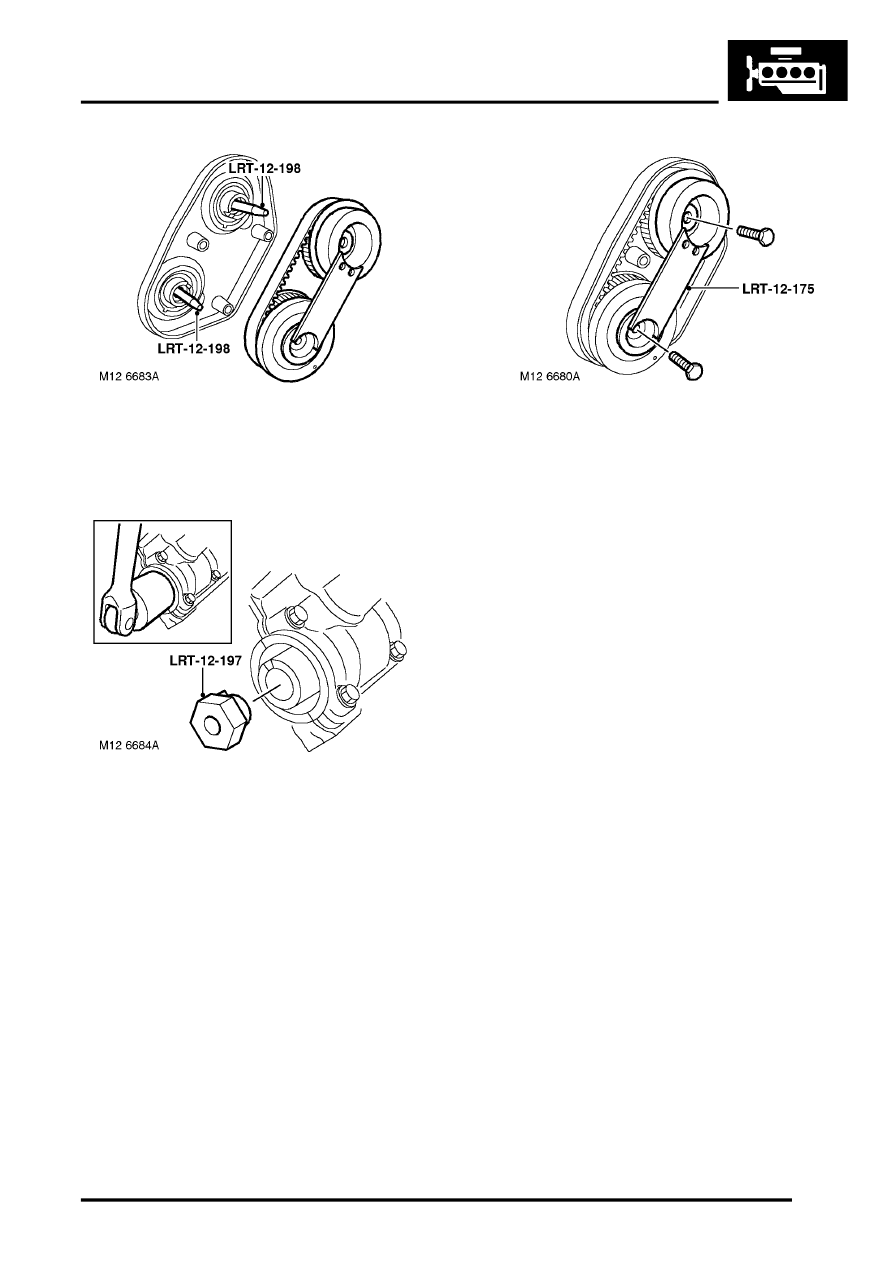

25. Fit LRT-12-198 alignment pins into the end of
each camshaft.
26. Position timing belt and gears over LRT-12-198
and locate gears onto camshafts.
27. Position LRT-12-197 into the front end of the
exhaust camshaft.
28. With assistance, using a 30 mm socket on LRT-
12-197, turn the exhaust camshaft sufficiently
to align camshaft gears to the drive slots in
each camshaft.
29. Remove LRT-12-198 alignment pins and fit
new camshaft gear retaining bolts.
30. Tighten camshaft gear bolts to:
l
Stage 1 - 27 Nm (20 lbf.ft)
l
Stage 2 - Further 90
°
31. Remove LRT-12-175 from camshaft gears.
32. Remove LRT-12-197 from front end of exhaust
camshaft.
NOTE: Following front or rear timing belt
refitment, it is possible that after rotating the
engine and positioning the crankshaft pulley to
the 'SAFE' position, the timing marks on the
rear timing gears may be misaligned. This
misalignment is acceptable provided that the
timing belt refitting procedure was carried out
correctly.

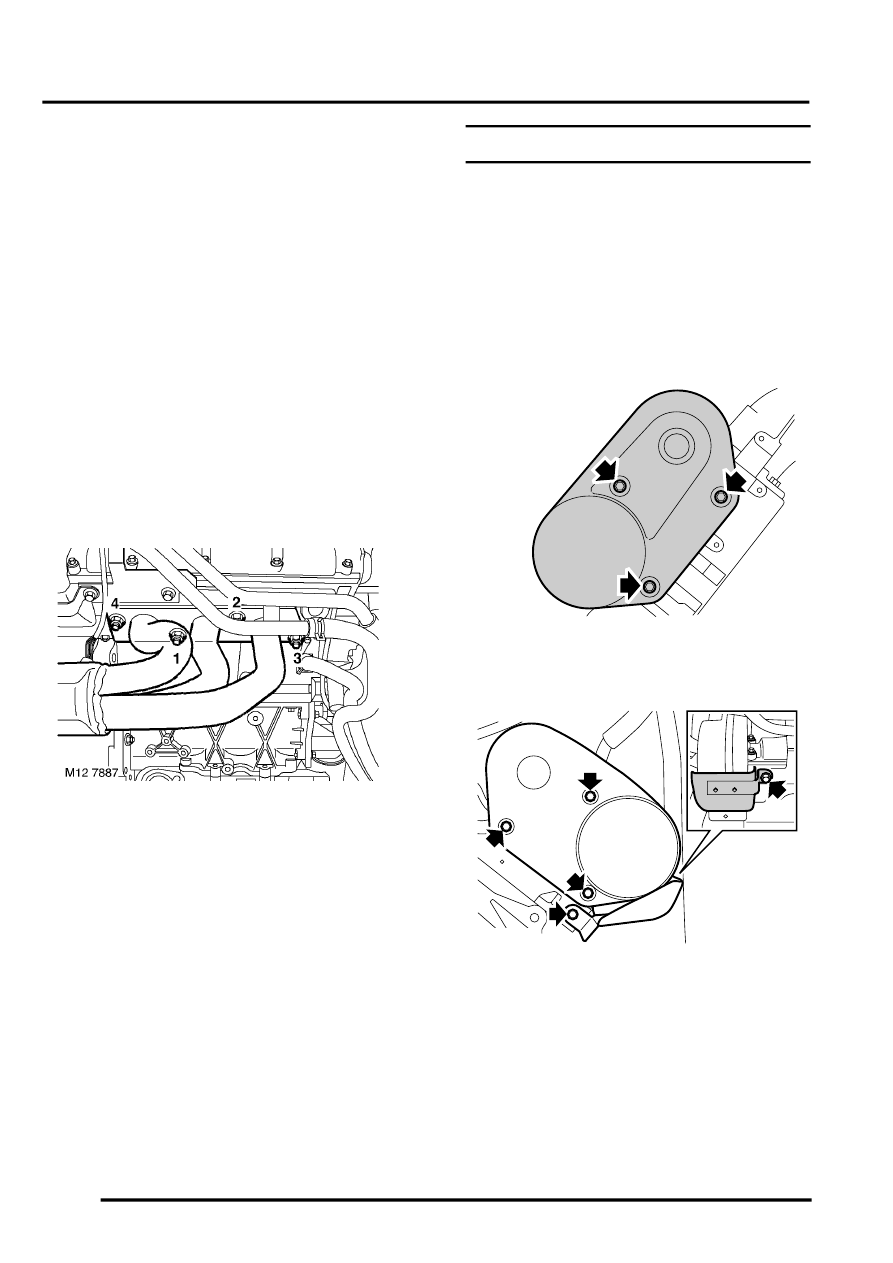

33. Fit timing belt rear cover and tighten bolts to 9
Nm (7 lbf.ft).
Refit
1. Fit cylinder head gaskets.
