ENGINE - K SERIES KV6
12-3-88 OVERHAUL

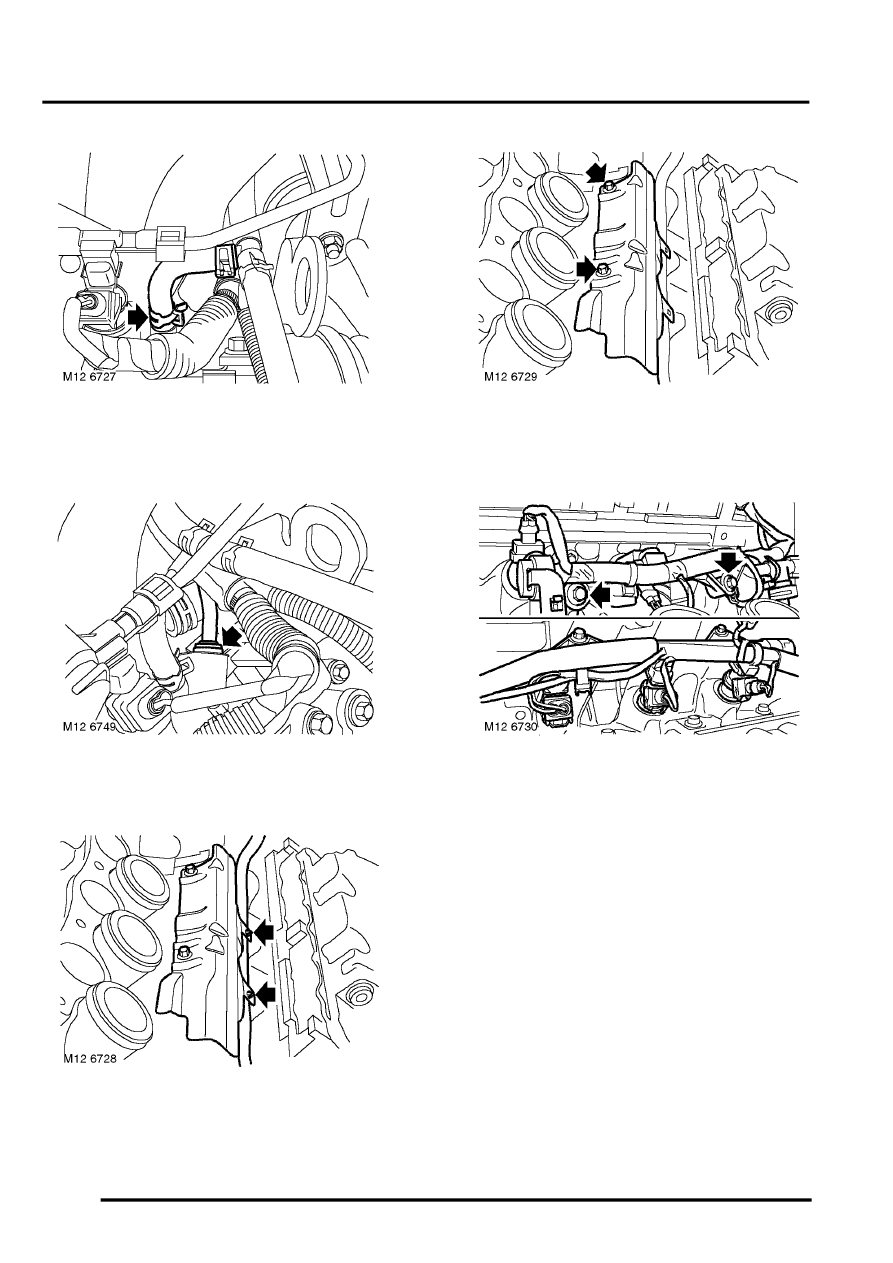

7. Release clip and disconnect coolant bleed
hose from LH inlet manifold, position hose
aside.
8. Depress locking collar and release breather
hose from LH inlet manifold.
9. Release clips securing RH injector harness to
injector protection cover - if fitted, or from
bosses on fuel rail.
10. Remove 2 bolts securing protection cover - if
fitted and RH fuel rail to RH inlet manifold,
remove cover.
11. Remove 2 bolts securing fuel rail to LH inlet
manifold.
12. Release injectors from manifolds and carefully
lay fuel rail and injectors aside.
CAUTION: Always fit plugs to open
connections to prevent contamination.
